FOG QUADRA 493 9021 - Page 31

QUADRA
31
E 167 - GB - 6
Rue du Pré Neuf - 58440 MYENNES FRANCE
493 9021
493 9031

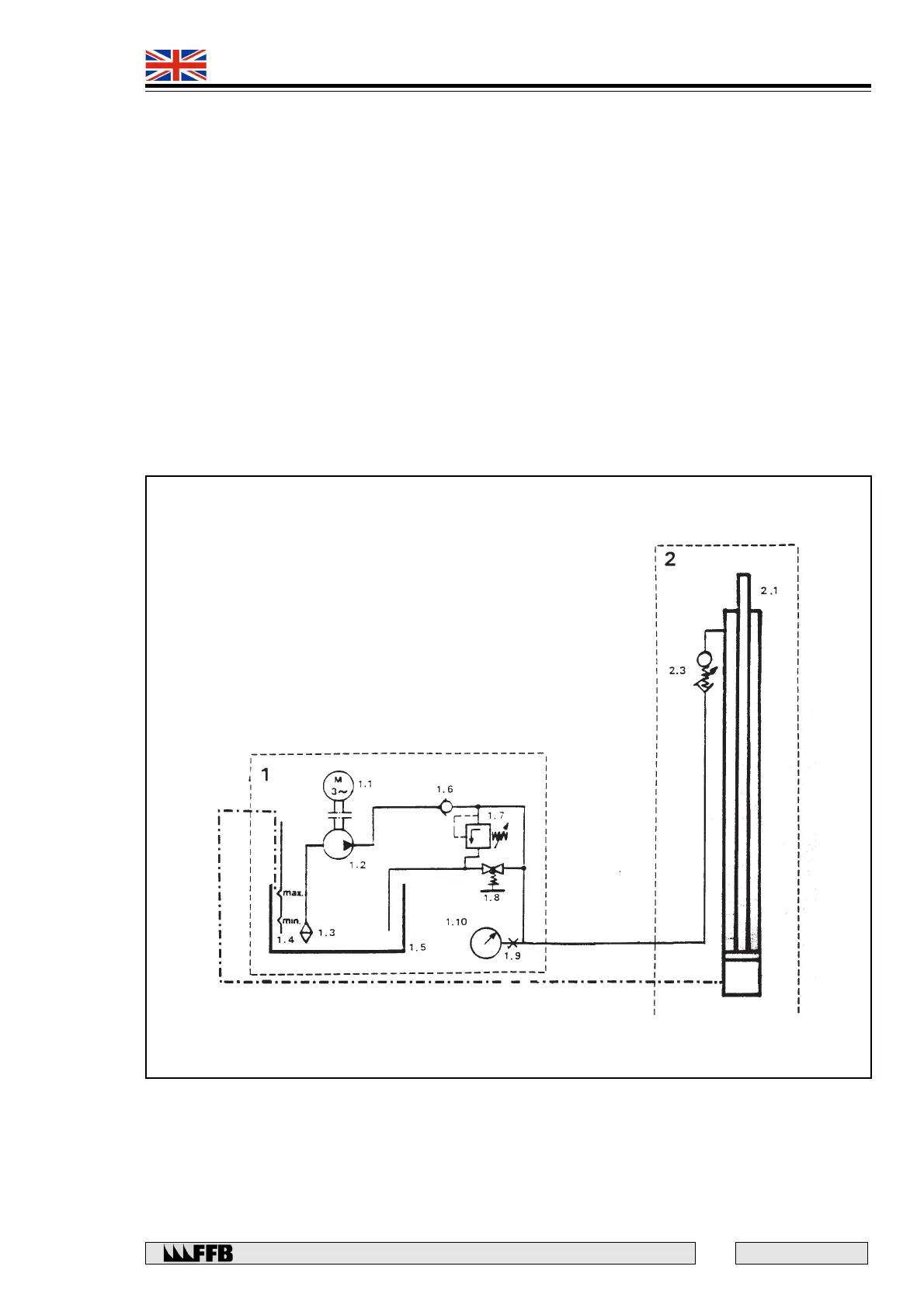

LIFT 493 9021
1. POWER PACK UNIT
1.1 Motor
1.2 Pump
1.3 Suction filter
1.4 Oil dipstick
1.5 Oil reservoir
1.6 Non-return valve
1.7 Pressure relief valve
1.8 ‘LOWER’ control
1.9 Gauge connector
1.10 Control gauge
2 - FIXED TRACK
2.1 Deck platform ram
2.2 Auxiliary emission ram
2.3 Safety valve - Hose failure
2.4 Three-way valve
2.5 Solenoid valve
2.6 Two-way valve
3. ADJUSTABLE TRACK
3.1 Auxiliary slave ram
3.2 Safety valve - pipework rupture
