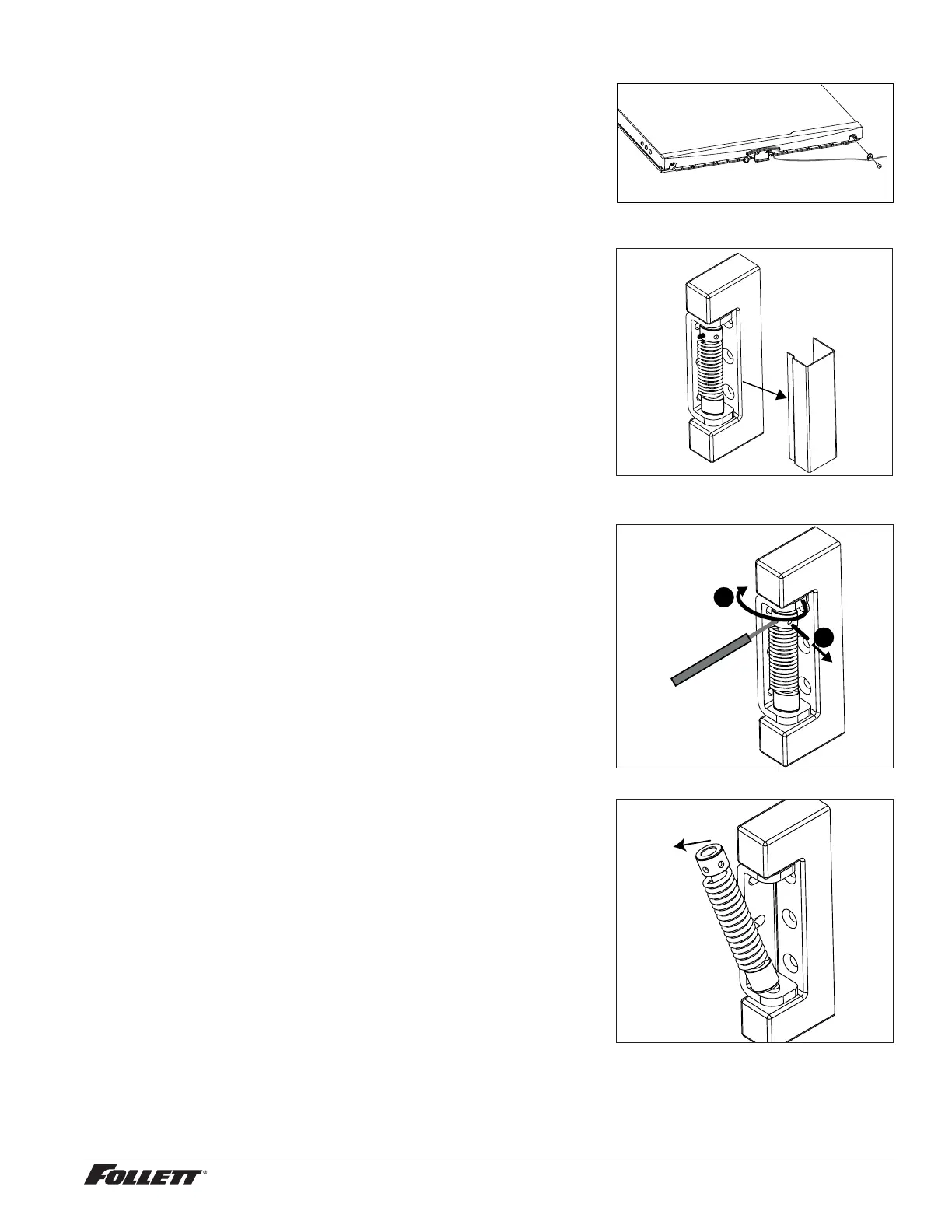

3. Remove the screw from the white strap on the hinge side of the
wire channel (Fig. 5). Remove the control wire from the channel
at the bottom door cap. The wire should be left hanging in the
center of the door.
Fig. 5
4. Use at screwdriver to carefully remove hinge covers (Fig. 6). Fig. 6
5. Rotate top of spring assembly (clockwise for left-hands doors
and counter-clockwise for right-hand doors) (Fig.7.1) to remove
the pin (Fig.7.2).
6. Relieve torque on the spring.
7. Remove the knockout on the kick panel and move the strain
relief to the opposite side.
Fig. 7
8. With at-head screwdriver, simultaneously push down and pry
the top of the spring out of the top of the hinge (Fig. 8).
Fig. 8
1
2
REF4P and REF5P Undercounter Refrigerators 5
