REF4P
, REF5P and REF5BBP
-T Undercounter R
efrigerator
s
35
Basic Units (Se
rial Numbe
r E98
9
67 and ab
ov
e)
N
C
EV
AP
FA
N
PWR SW
C
OMPRESSOR
ALARM#1
DEF
DFRST
ALARM
BOTL
SUCT
DSCHG
COMP
INLET
EV
AP FAN
COND F
AN
DOOR HTR
CAB
COND AIR
P7
P3
P2
P1
P6
P8
R30
2
1
4-
3+
INPUT
3-32VDC
240VA
C/25A
OUTPUT
WHT
BLK
MACHINE C
ONTROL
BLK
P3-ALARM BOTTLE
P1-CONTROL
HOT (L1)
NEUTRAL (L2)
RELA
Y
COMP
RELA
Y
BA
TTERY
WHT
(KEYP
AD ONL
Y)
EL
OCK
DISPLA
Y
A
B
A
B
H
OT
NEUTRAL
(KEYP
AD ONL
Y)
RED
BLK
120V
AC
RED
ORG
BLK
RELA
Y
BA
TTERY
BLK
WHT
BLUE
C
OND
UNIT
34
36
Table of Contents
Default Chapter
1
Undercounter Refrigerators
1
Table of Contents
2
Welcome to Follett
3
Before You Begin
3
Specifications
4
Electrical Specifications
4
Refrigeration Specifications
4
Installation Specifications
4
Installation
5
Installing Levelers
5
Battery Backup (Touchscreen and Keypad Units Only)
5
Installing Shelves
5
Installing Drawer
6
Third-Party Probe - Optional
6
Reversing the Door Swing - Optional
6
Installing Glycerine Solution in Product Simulation Bottle
12
Turn on Power
12
Operation
13
Temperature Control
13
Defrosting
13
Controller Operation - Performance Plus
14
Controller Display
14
Controller Security
14
Changing Temperature Display from C to F
14
Sleep Function
14
Temp Log
15
Alarming Functions
15
Follett Keypad Lock
17
Controller Operation - Performance Plus Touchscreen
19
Use and Care of the LCD Performance Plus Touchscreen
19
Cleaning
30
Annual Cleaning
30
Service
30
Door Gasket Replacement
30
Slide-Out Compressor Tray
30
Removing Drawers
31
Removing Slides
31
Changing the Back-Up Batteries
31
Controller Replacement
32

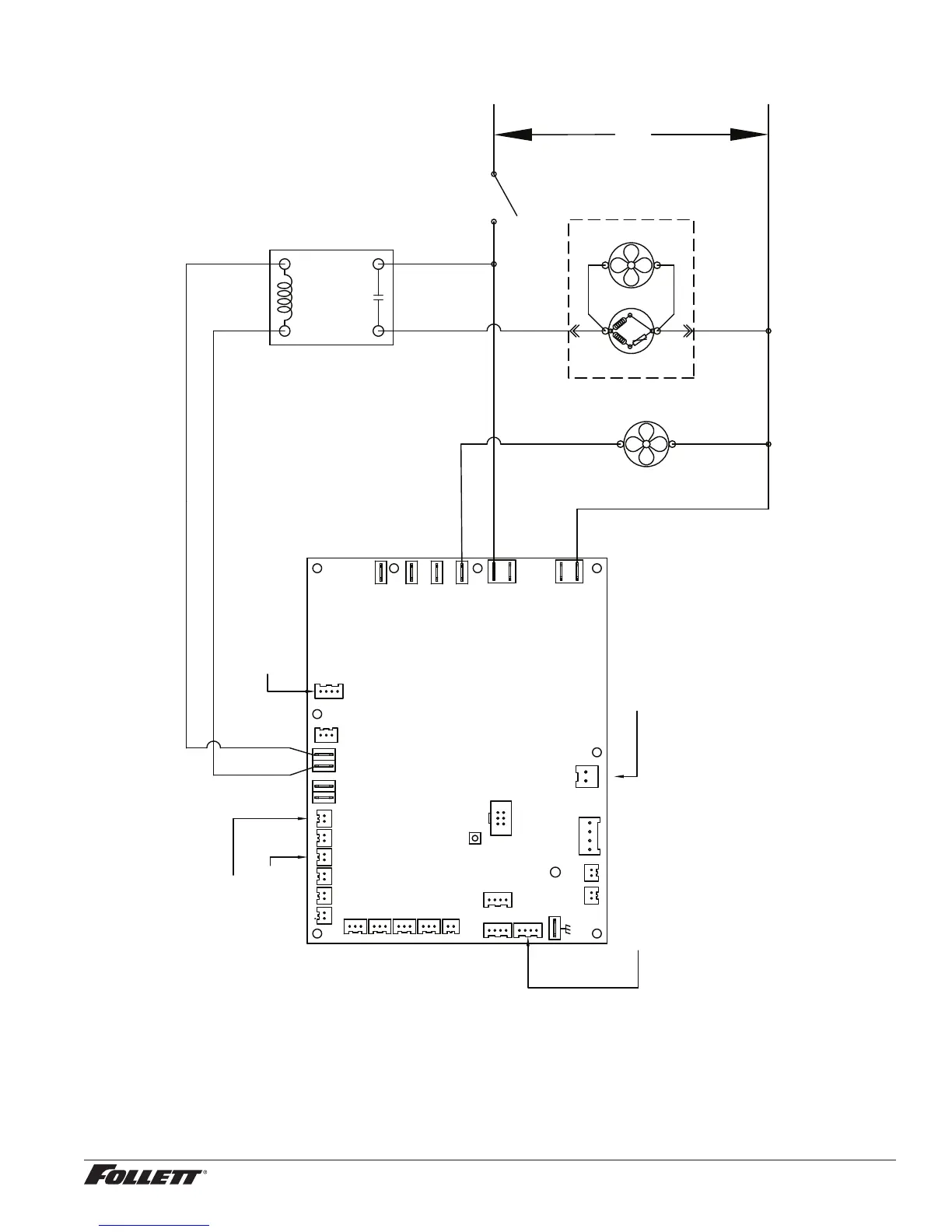

Wiring Diagram
33
Refrigeration System
36
Checking Refrigeration System Pressures
36
Refrigeration System Diagram
37
Compressor Information
37
Troubleshooting
38
Before Calling for Service
38
Accessories
39
Replacement Parts
40
Evaporator
40
Condensing Unit
41
Hardware
43
Hardware and Electrical Components
44
