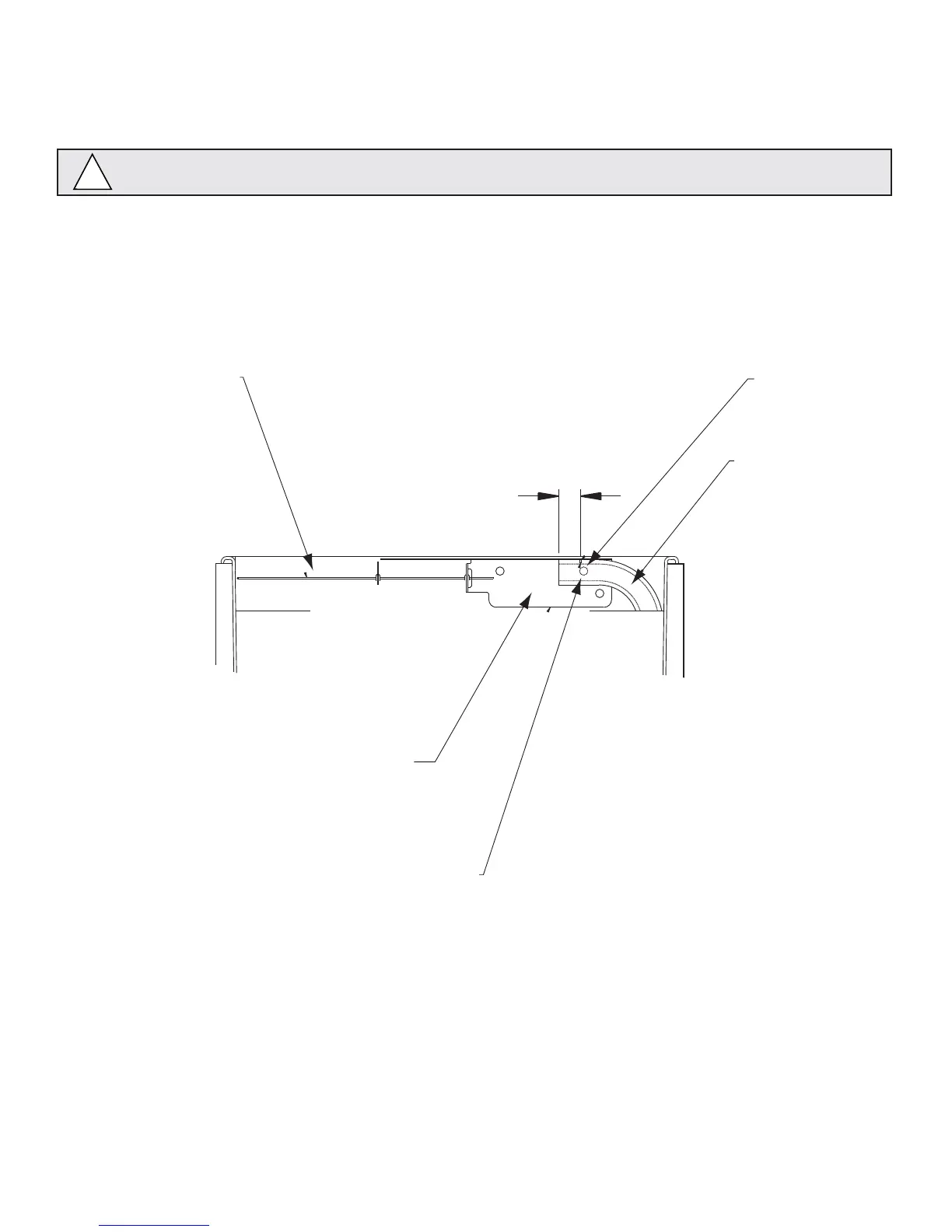

engaging pin
5mm (3/16") ice tube hole
ice hose mounting bracket
ice level control stat
ice tube
26mm
(1")
capillary tube
20
All units
9. Slip supplied hose clamp onto tube and push tube onto exit port of evaporator.
Do not twist hose when securing to evaporator.
10. Fasten tube on port with hose clamp, being sure that clamp is positioned on evaporator side of nozzle ange.
11. Tighten clamp.
Only use tubing supplied by Follett Corporation.
!
