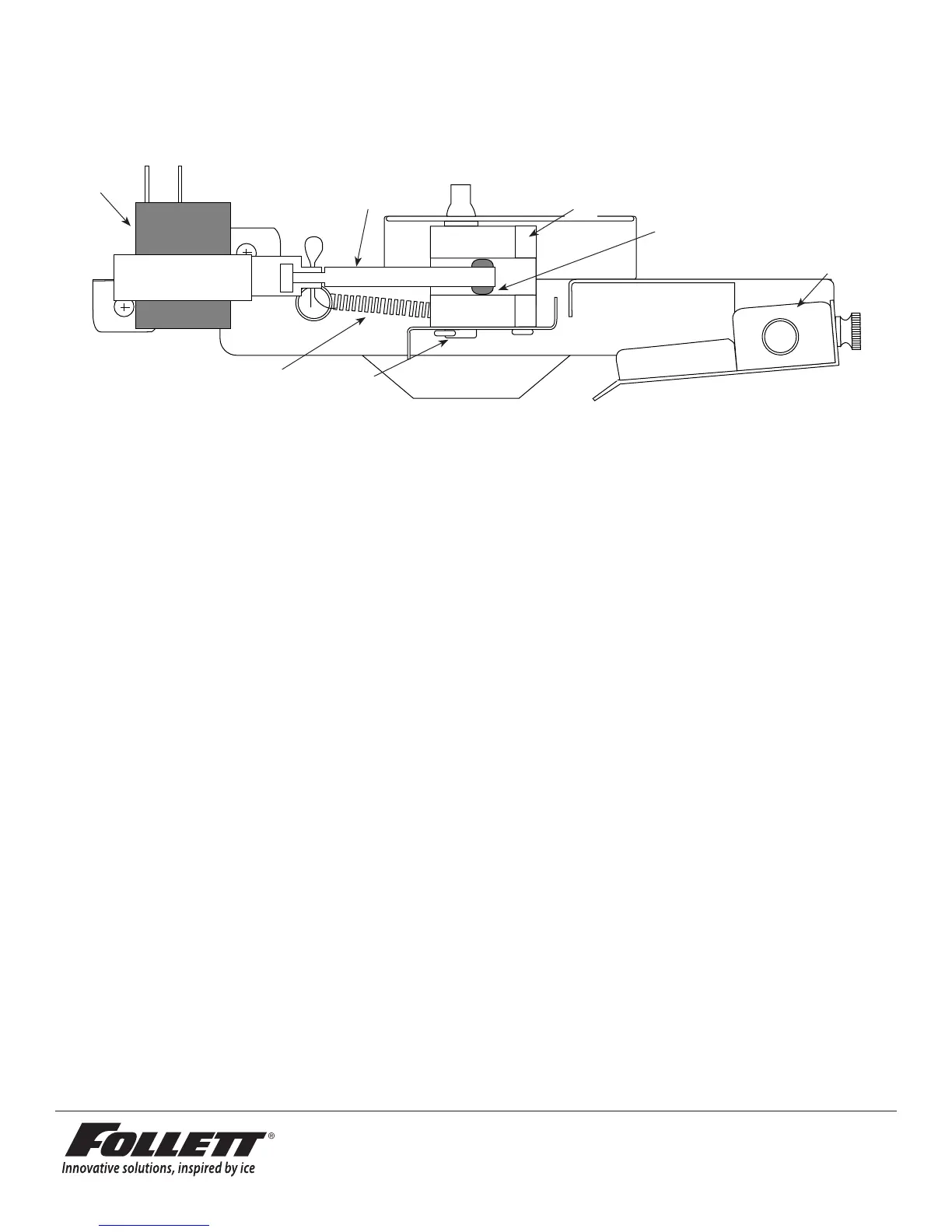

Solenoid dispense assembly
Part # Description Reference #
501844 Solenoid, dispense, 220V, 60 Hz/230V, 50Hz 1
502040 Cotter pin 2
502039 Linkage, solenoid (includes 502054 grommet) 3
502042 Block, dispense gate 4
502054 Grommet 5
502045 Splash pan, gate assembly 6
502038 Shoulder screw and washer 7
501824 Spring, gate assembly 8
00128157 Gate assembly, 220V, 60 Hz/230V, 50Hz
(includes reference numbers 1 through 8 above)
