Follett Symphony C110FB400A/W - Wheel Motor and Drive System

1
2
4
3
3
5

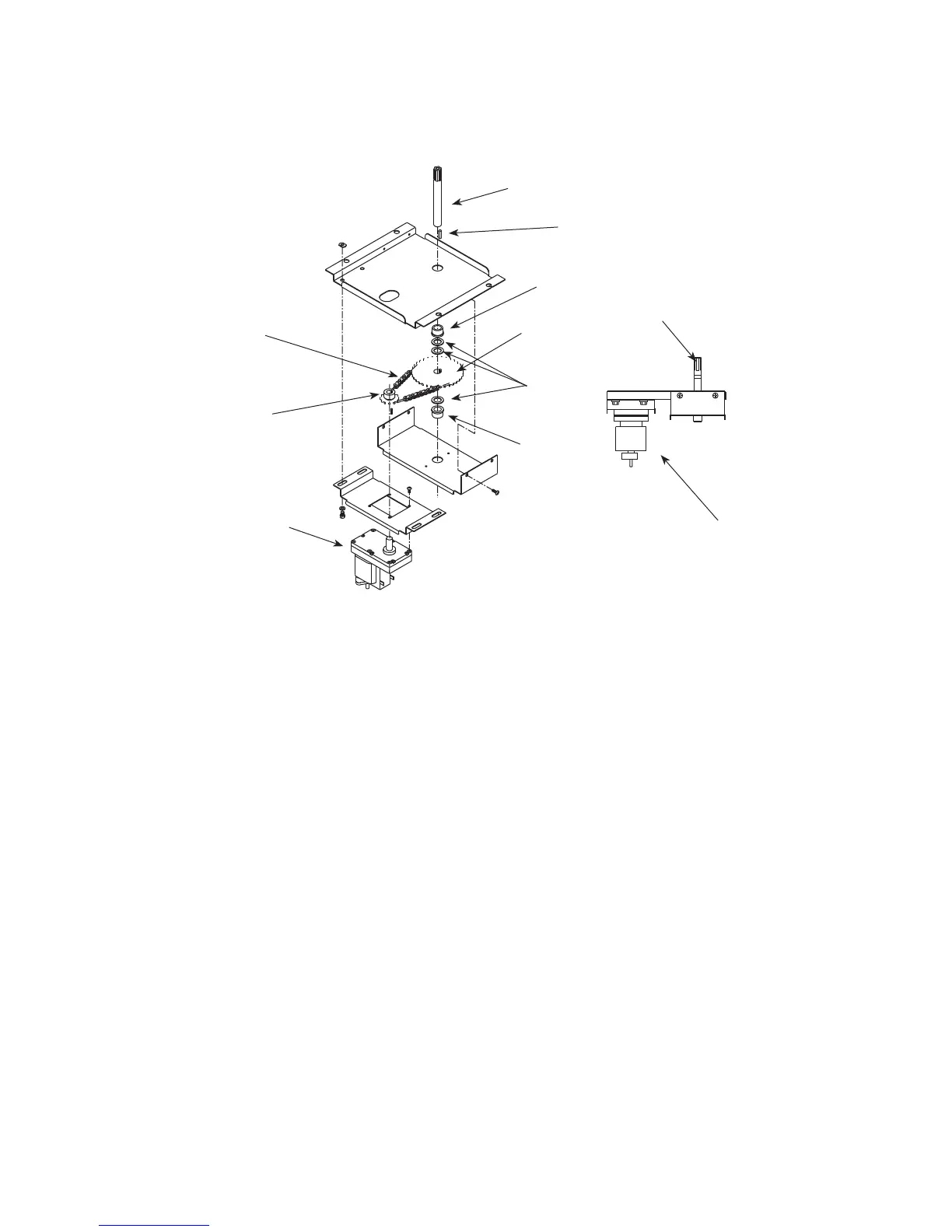

Wheel motor and drive system
25
1
6
7
8
7
Part # Description Reference
501699 Wheel motor, 220V, 60Hz/230V, 50Hz 1
501026 Washer, thrust 2
501607 Fan blade, wheel motor Not shown
501619 Drive shaft (includes threaded rod and nut, see #6, page 26) 3
502691 Chain, 54 link 4
502692 Sprocket, drive shaft, 35 teeth 5
501019 Sprocket, wheel motor, 10 teeth 6
501024 Bearing, drive shaft 7
500799 Connecting link, chain Not shown
500637 Key, driveshaft 8
502929 Dispenser drive assembly Includes all above
