Follett T400A - Page 13

13
5.25"
(134mm)
25.875"
(658mm)
ice machine
power outlet
ice machine
twist-lock
bin signal cord
3/8" OD push-in condenser inlet
(water-cooled only)
3/8" OD push-in condenser drain
(water-cooled only)
3/8" OD push-in icemaker water inlet
barbed push-on icemaker drain
vertical utility panel
3/8" OD push-in condenser inlet
(water-cooled only)
3/8" OD push-in condenser drain
(water-cooled only)
3/8" OD push-in ice machine water inlet
icemaker power cord
bin signal cord connector
(to connect to dispenser bin signal cord)
22.75"
(578mm)
25.875"
(658mm)
19.25"
(489mm)
16"
(407mm)
1.563"
(40mm)
Ice machine front
16.75"
(415mm)
22.75"
(578mm)
3/4" MPT ice machine drain
cord holder
1.563"
(40mm)

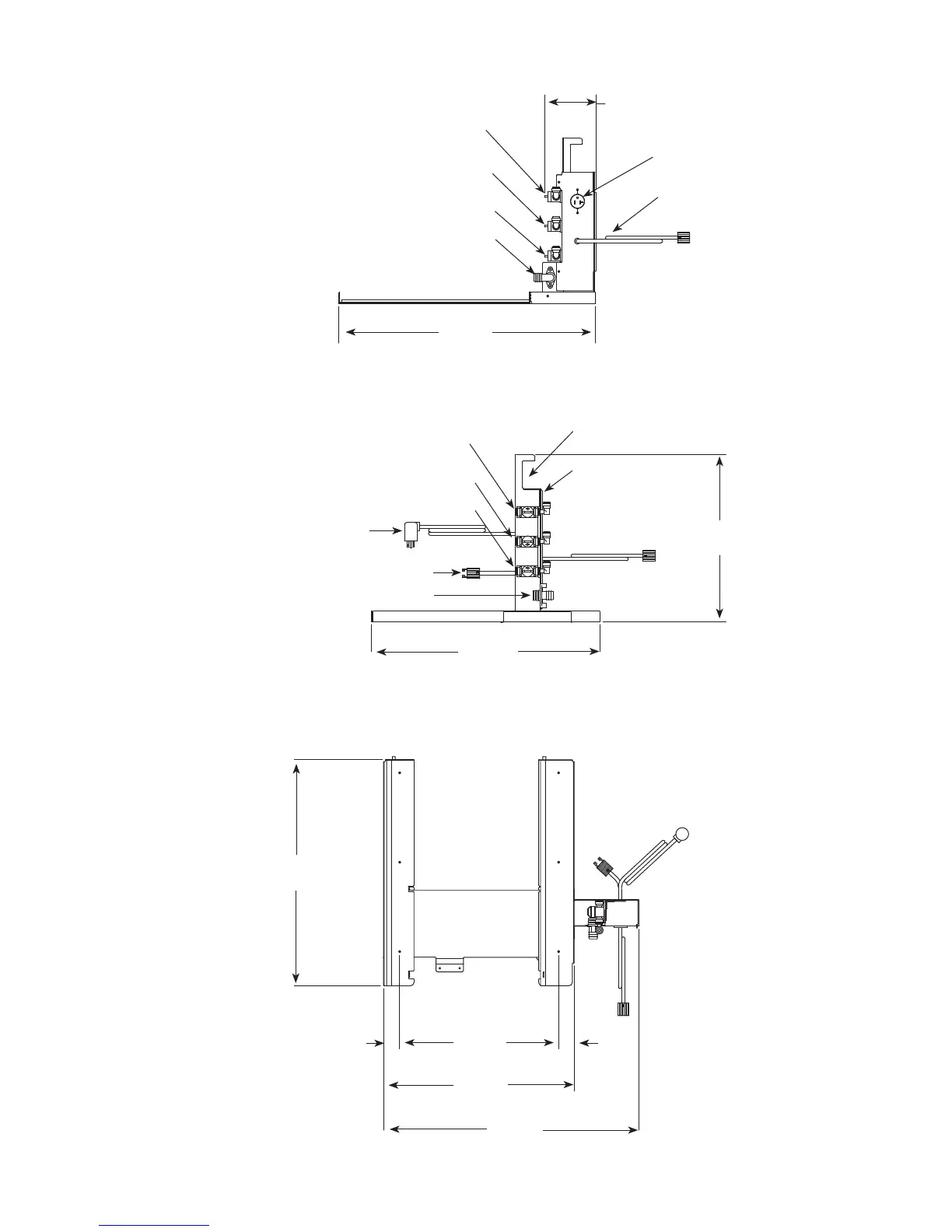

Plan view
Side view
(All customer  eld
connections are made
to rear of vertical
utility panel)
Front view
