RIDE model ice machine ventilation and exhaust requirements
Fabricator-supplied, custom air intake grilles must have 12" x 12" (305mm x 305mm) opening yielding 100 sq.
inches (645 sq. cm) of open air space within duct perimeter. Block off any open area outside of the air duct.
Intake air requirements — air-cooled ice machines (MCD400AHS, MCD400AVS & R400A only)
1. Check that 2" (51mm) duct is installed on condenser front.
2. Cut a 12" x 12" (305mm x 305mm) opening in counter face to align with duct.
3. Position ice machine to mate duct  ush with back of counter opening.
4. Install supplied grille on outside of counter opening.
Exhaust air — all ice machines (MCD400A/W & R400A/W)
Provide 100 sq. in. (645 sq. cm) of counter opening for exhaust air at least 18" (457mm) from intake opening
but not more than 10 ft (3m) away.

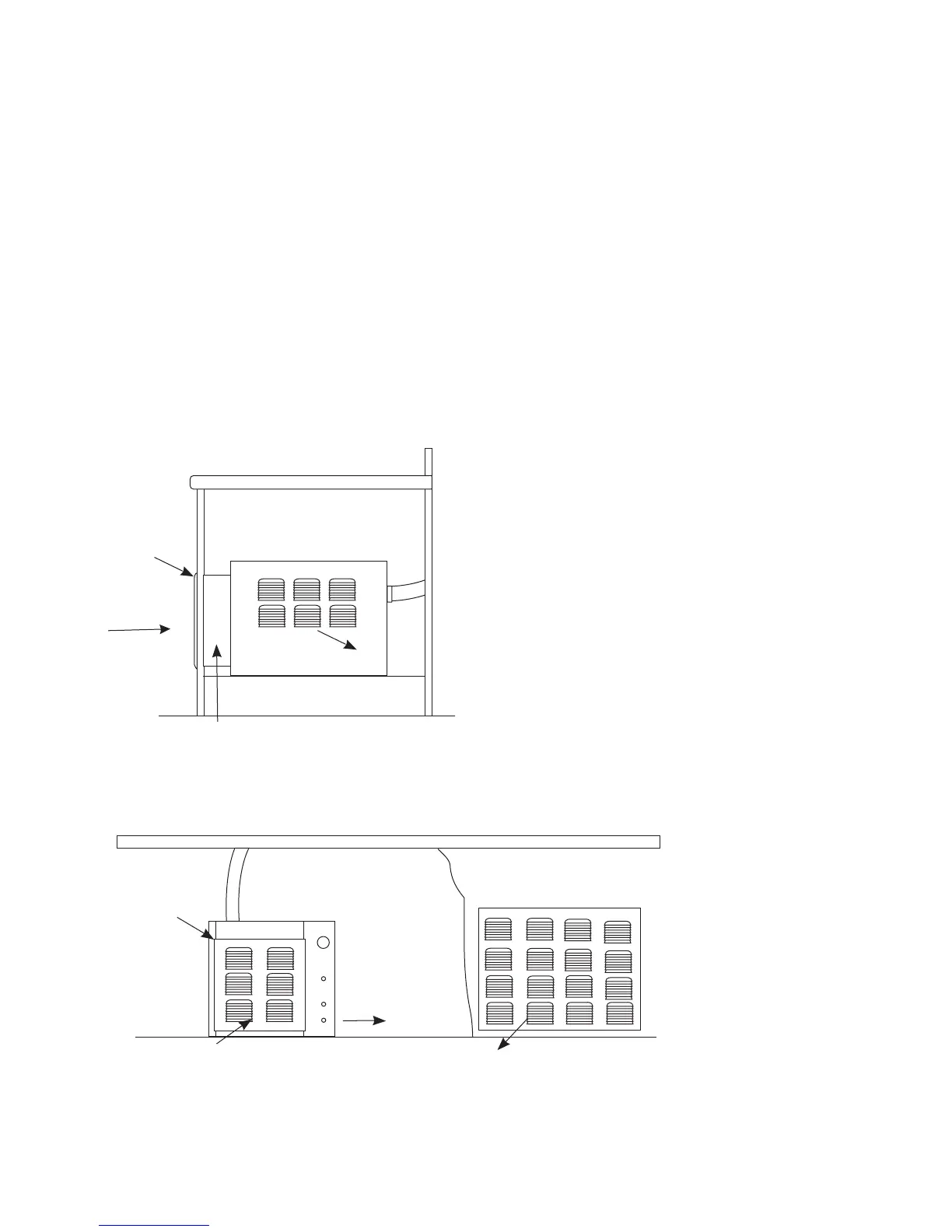

Air in
through louver
Standard 51mm
(2") duct
mates counter
opening
(behind grille) to
condenser front
Exhaust air
out side to
opening at least
457mm (18" )
from air intake
Air out through louver
Provide at least 645 sq. cm
(100 sq. inches) of counter
opening for exhaust air
Exhaust air
Air intake
Standard
louvered grille
(supplied)
Supplied 2" (51mm) duct MUST be installed
to front of ice machine and mated flush to insid
of counter face opening.
MCD400AHS, MCD400AVS & R400A — Side View
Front View
