3. OPERATING CONTROLS AND DISPLAYS
3.1. UNIT
3.2. REMOTE HAND-SWITCH
The hand switch can alternatively be mounted remotely in case the unit is located in an
X-ray room which has a door and enables visual contact with the patient.
An optional kit is available for remote mounting of the hand switch. Order code 93 190
00155.

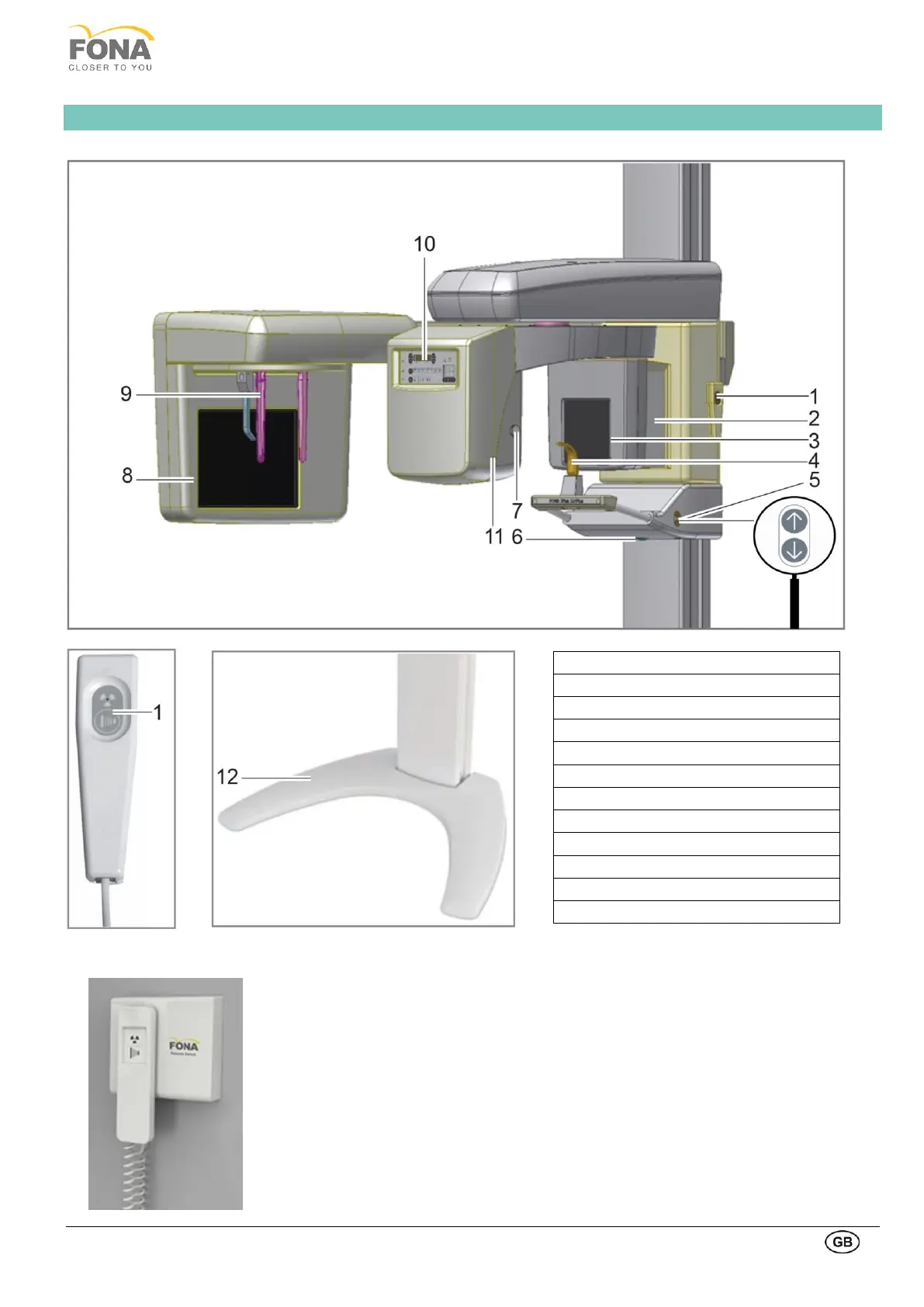

1. X-Ray button
2. Patient positioning mirror
3. 3D-Panoramic Image Mirror
4. Bite block
5. Height adjustment buttons
6. Main switch
7. Knob for Frankfurt plane adjustment
8. Cephalometric image receptor
9. Cephalostat
10. Control panel
11. X-Ray Generator
12. Optional self standidg base
