Fondital PANAREA COMPACT - Dimensions; Pic. 3 - Dimensions

11
2.2 Dimensions
M
C
G
F
R

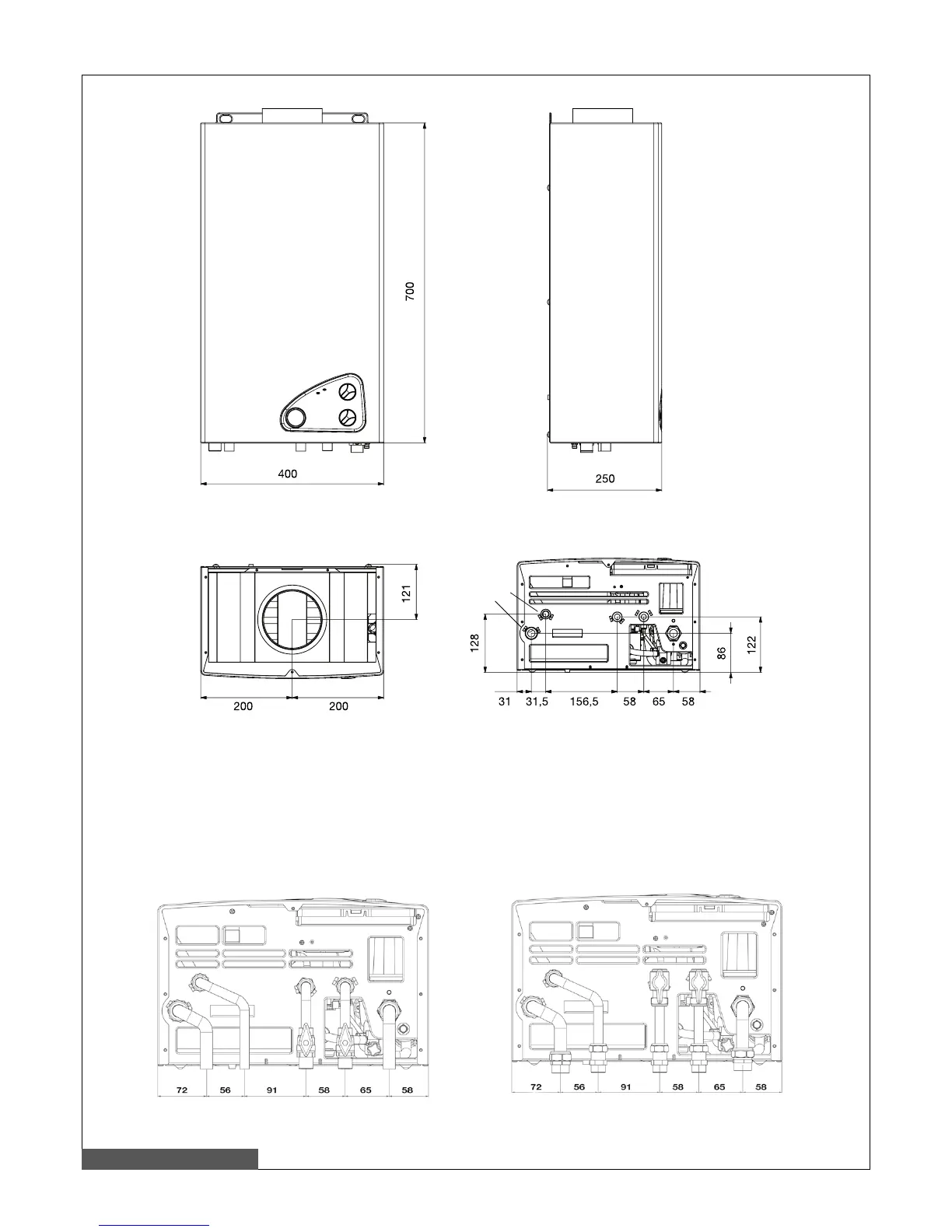

Pic. 3 – Dimensions
bottom viewtop view
G Gas inlet (1/2”)
M CH flow (3/4”)
C DHW flow (1/2”)
F Cold water inlet (1/2”)
R CH return (3/4”)
Dimensions for connection to base hydraulic kit (option)
Dimensions for connection to “plus” hydraulic kit (option)
