FONESTAR MPX-4088 - MPX-4088 CONTROLS AND FUNCTIONS

DESCRIPTION
The model MPX-4088 is an audio matrix with 8 analogue input channels to 8 output zones and 4 configurable
digital channels.
It has 8 analogue input channels to 8 output zones and 4 configurable digital channels. Musical source
selection, volume and equalization control for each zone through PC software or via the optional zone controls
mod. MPX-420V or MPX-430VS. DSP function in inputs/outputs, priority control and feedback suppressor.
Priority paging using optional microphone with zone selector mod. MPX-400MIC.
A highly versatile system which is suitable for installations of any size, allowing music to be selected in each
zone. Perfect for commercial installations, conference rooms, etc.
CONTROLS AND FUNCTIONS

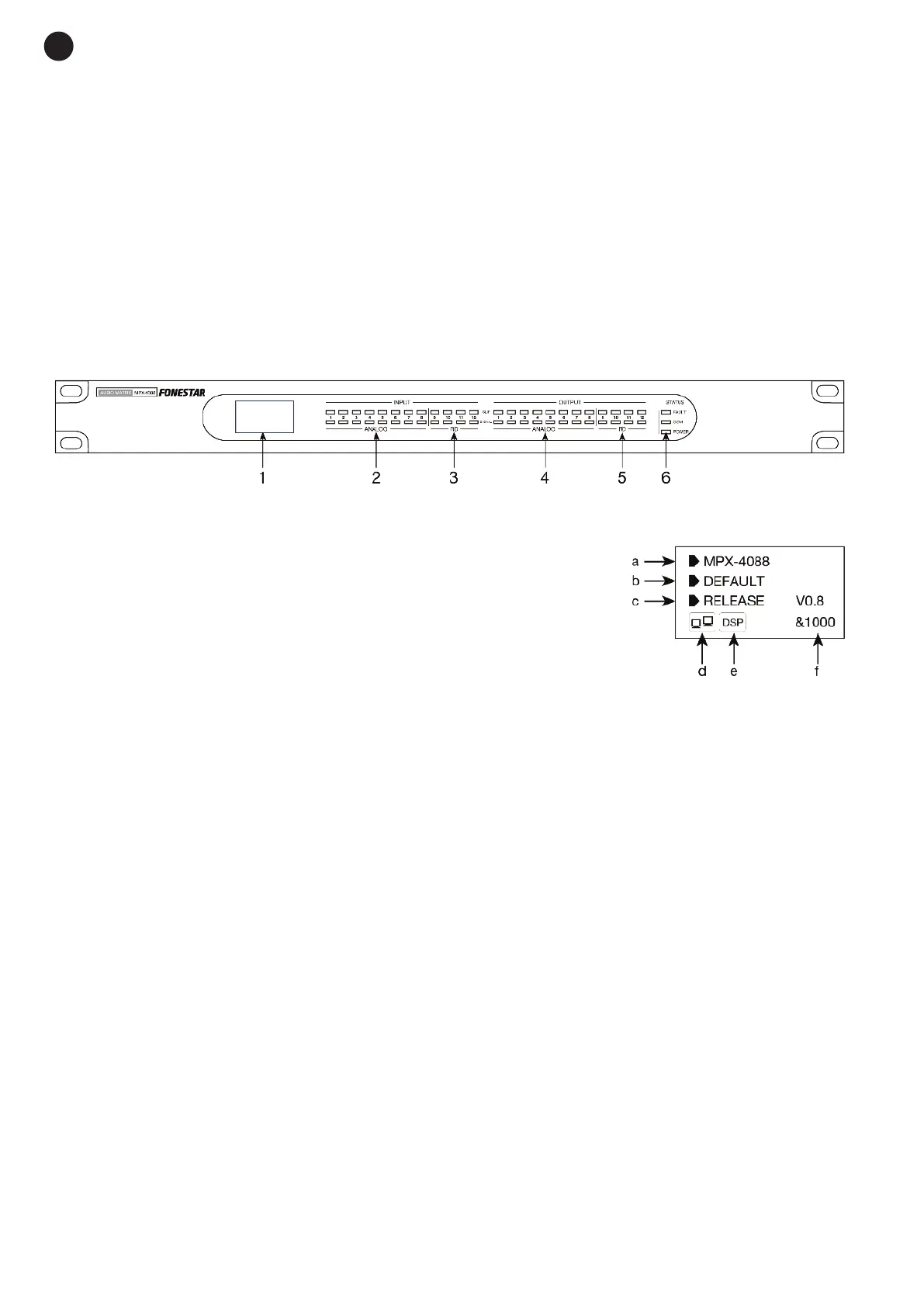

FRONT PANEL
1.- LCD DISPLAY: information display:
a.- Device name.
b.- Selected preset.
c.- Software version.
d.- Connection status between PC and device. If the connection is
correct, both icons will flash alternatively.
e.- DSP indicator. Should a problem occur “DSP!” will be displayed.
f.- Device ID number. It is obtained automatically when switched on.
2.- ANALOG INPUT: LED analogue input indicators:
- SIGNAL: indicates signal presence in the corresponding input channel.
- CLIP: indicates signal saturation in the corresponding input channel.
3.- RD INPUT: digital input LED indicators:
- SIGNAL: indicates signal presence in the input channel.
- CLIP: indicates signal saturation in the corresponding input channel.
4.- ANALOG OUTPUT: LED analogue output indicators:
- SIGNAL: indicates signal presence in the input channel.
- CLIP: indicates signal saturation in the corresponding output channel.
5.- RD OUTPUT: digital output LED indicators:
- SIGNAL: indicates signal presence in the corresponding output channel.
- CLIP: indicates signal saturation in the corresponding output channel.
6.- STATUS:
- FAULT: indicates a fault with the DSP.
- COM: provides information about the communication between the PC and the device. A light flashes
when there is data transmission between them. It remains switched off if there are communication
problems.
- POWER: matrix LED power indicator.
