OPTIONAL MODELS FOR MATRIX MPX-4088
MPX-400MIC
DESCRIPTION
T
he model MPX-400MIC is a microphone with zone selector and chimes for the audio matrix model
MPX-4088. The zones can be selected individually or all at the same time.
There is the option to personalise the zone names, microphone volume, volume and chime duration, using
physical controls or PC software.

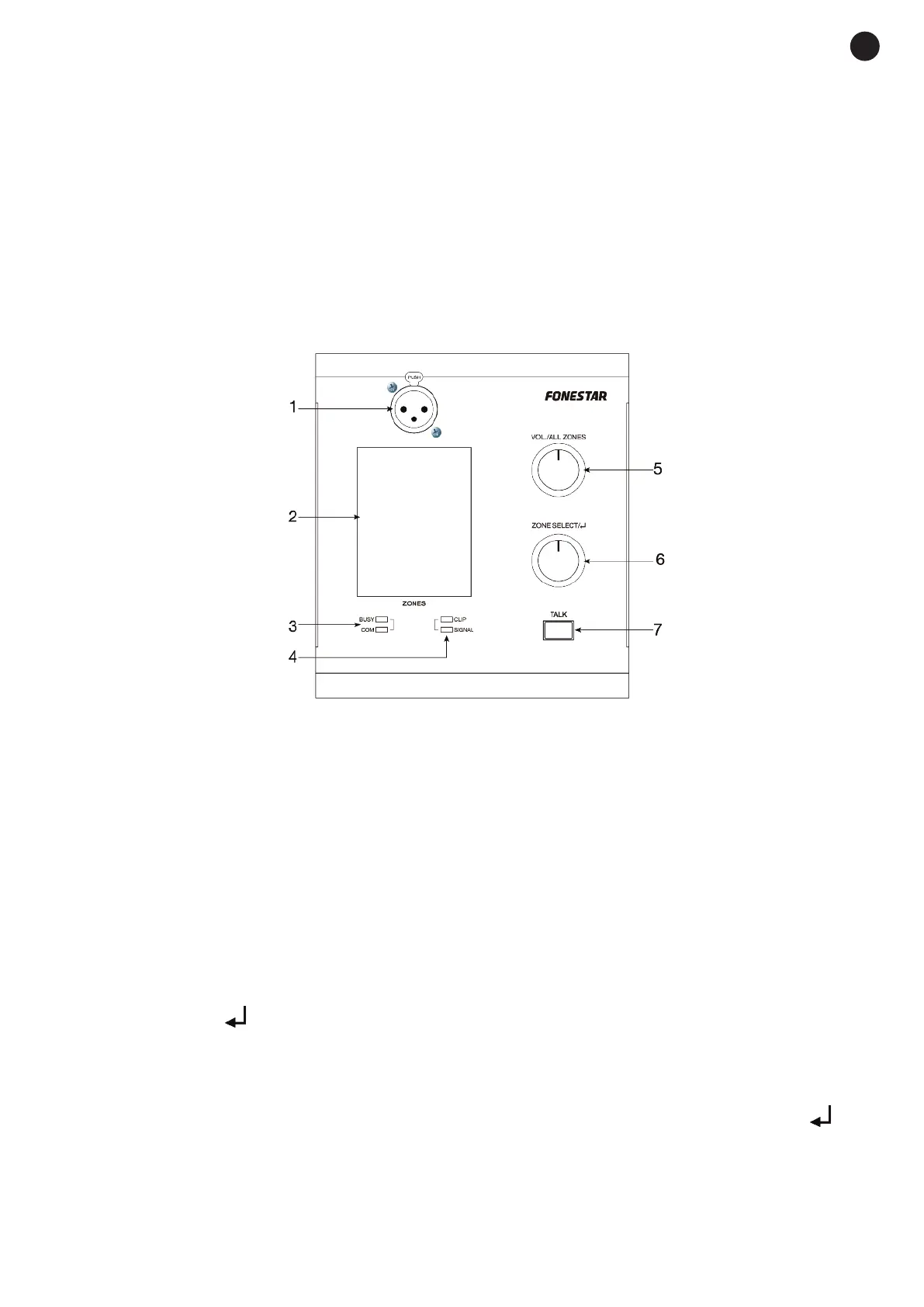

CONTROLS AND FUNCTIONS
FRONT PANEL
1.- XLR connector for electret condenser.
2.- LCD information display, showing the zones, volume and ID number.
3.- COM/BUSY: LED communication status indicator:
- COM: correct communication between the MPX-4088 matrix and the MPX-400MIC microphone.
- BUSY: communication problem between the MPX-4088 matrix and the MPX-400MIC microphone.
4.- SIGNAL/CLIP: LED signal indicators:
- SIGNAL: indicates signal presence.
- CLIP: indicates signal saturation.
5.- VOL/ALL ZONES: microphone volume control for selected zones. One press of the button, selects all
zones. A long press of this button, accesses the edition mode of the MPX-400MIC.
6.- ZONE SELECT/ : selects one or several zones by turning the button to the left or right and pressing
to select them.
7.- TALK: when the button is pressed, the chime is played in the selected zones and the LED ring on the
microphone lights up indicating that it is possible to speak.
Note: in order to perform a factory reset, the buttons VOL/ALL ZONES and ZONE SELECT/ must
be pressed and held for more than 3 seconds.
