CONNECTION EXAMPLES
With the audio matrix mod. MPX-4088 it is possible to configure systems of 12 to 192 zones. The basic
s
ystem allows connection of up to a maximum of 12 inputs and 12 outputs per matrix. With the optional mod.
MPX-450D (DANTE
TM
module), the interconnection of up to 16 MPX-4088 matrices is possible for a total of 192
inputs and 192 outputs, making it compatible with other DANTE
TM
systems. The configuration and allocation of
i
nputs and outputs can be performed using the PC software or the MPX-420V or MPX-430VS zone controls.
The matrix has up to 8 analogue audio inputs, 8 zone outputs and two RD ports with 4 audio input/output
channels for the connection of models MPX-400MIC, MPX-410ES, MPX-420VS or extending the RD ports
with the mod. MPX-440X.

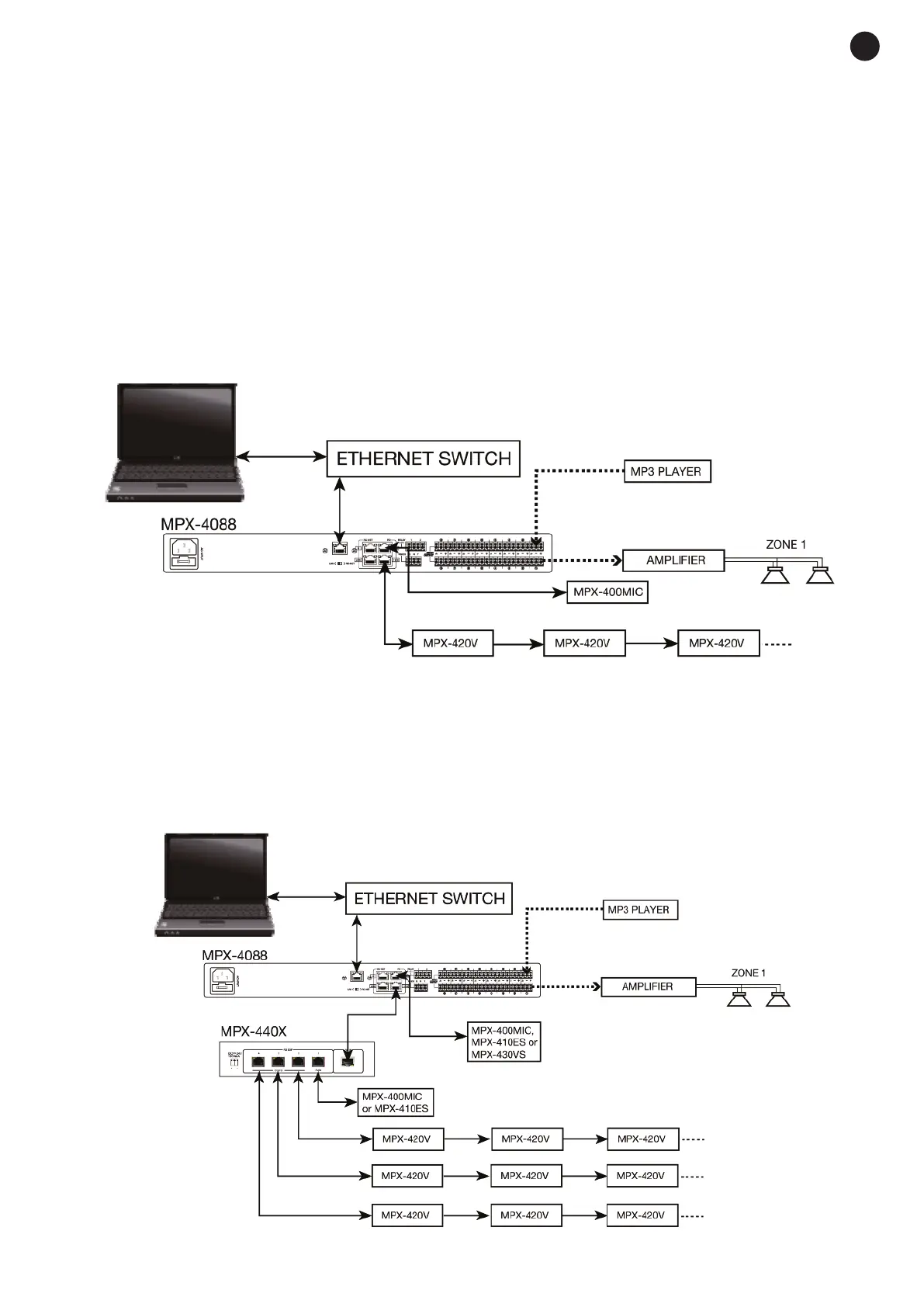

Below, the different connection configurations are shown:
CONFIGURATION 1
- RD port 9/10: MPX-400MIC microphone with zone selector for priority paging.
- RD port 11/12: MPX-420V zone controls, without exceeding a maximum of 8 devices in series and a
distance of 150 meters for a shielded Cat 5e or higher cable.
CONFIGURATION 2
E
N
