With the port extender mod. MPX-440X connected as shown in the previous diagram, 4 audio input/output
channels are available corresponding to the audio port of mod. MPX-440X and the RD 9/10 matrix port and
3 control ports on the mod. MPX-440X for the connection of MPX-420V zone controls. Up to a maximum of
8 units of the model MPX-420V can be connected in series by port and a maximum cable distance of 150
meters for a shielded Cat 5e or higher network cable.

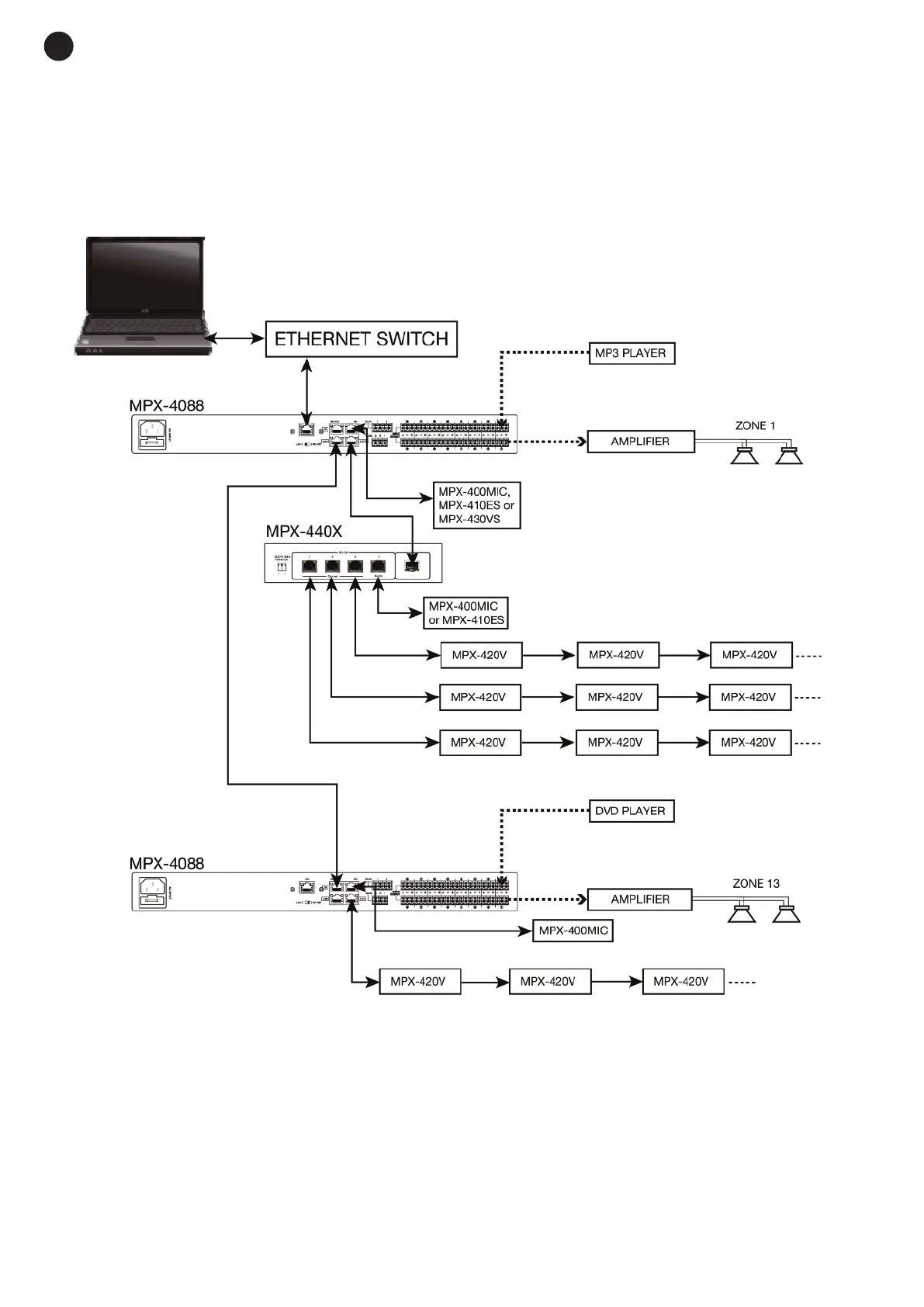

CONFIGURATION 3
With the two MPX-4088 matrices connected as shown in the diagram above, up to 16 analogue audio inputs
can be connected to 16 selectable zones, 4 MPX-400MIC microphones with zone selectors or 4 MPX-410ES
audio input/output controls, plus the MPX-420V or MPX- 420VS zone controls. With the optional MPX-450D
model, the interconnection of up to 16 MPX-4088 matrices is possible for a total of 192 inputs and 192 outputs,
making it compatible systems with other DANTE
TM
systems.
