F100 GHOST User Manual
9

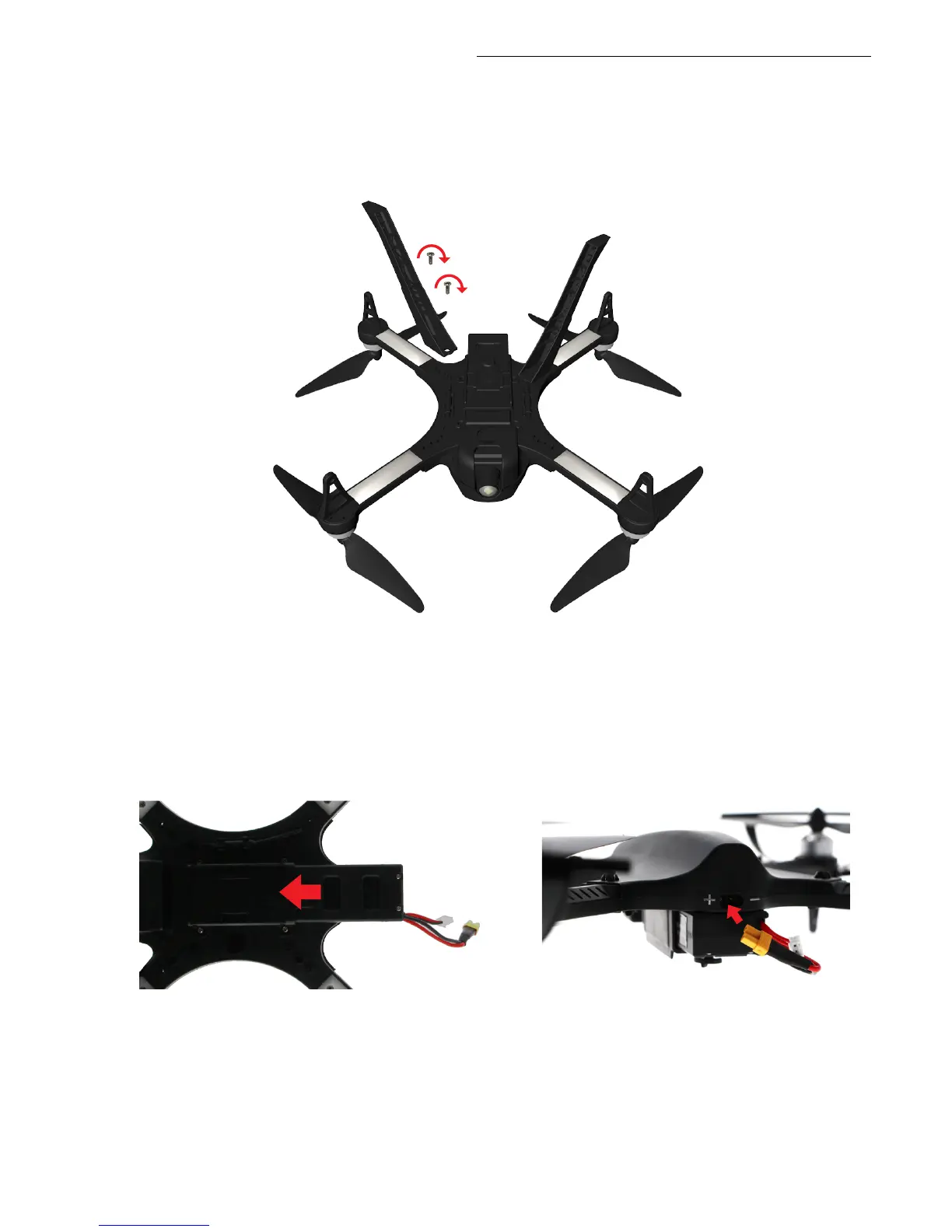

HIGH LANDING GEAR INSTALLATION
Insert the high-landing gear plug into the socket located at the bottom of the drone, insert and tighten
the large headed screws (Fig. 3). Repeat for all high landing gears.
BATTERY INSTALLATION
1. Slide the battery into the battery compartment (Fig. 4).
2. Plug the yellow battery wire into the power socket at the rear of the drone (Fig. 5).
FIGURE 3
FIGURE 4 FIGURE 5
NOTE
• Be sure you’re connecting with the correct positive (+) and negative (-) polarity, indicated on
the back of the drone, as well as on the sides of the battery wire
• Follow the pairing instructions on page 10 before attempting to y
