Force F100 GHOST User Manual

FORCE1 RC
16

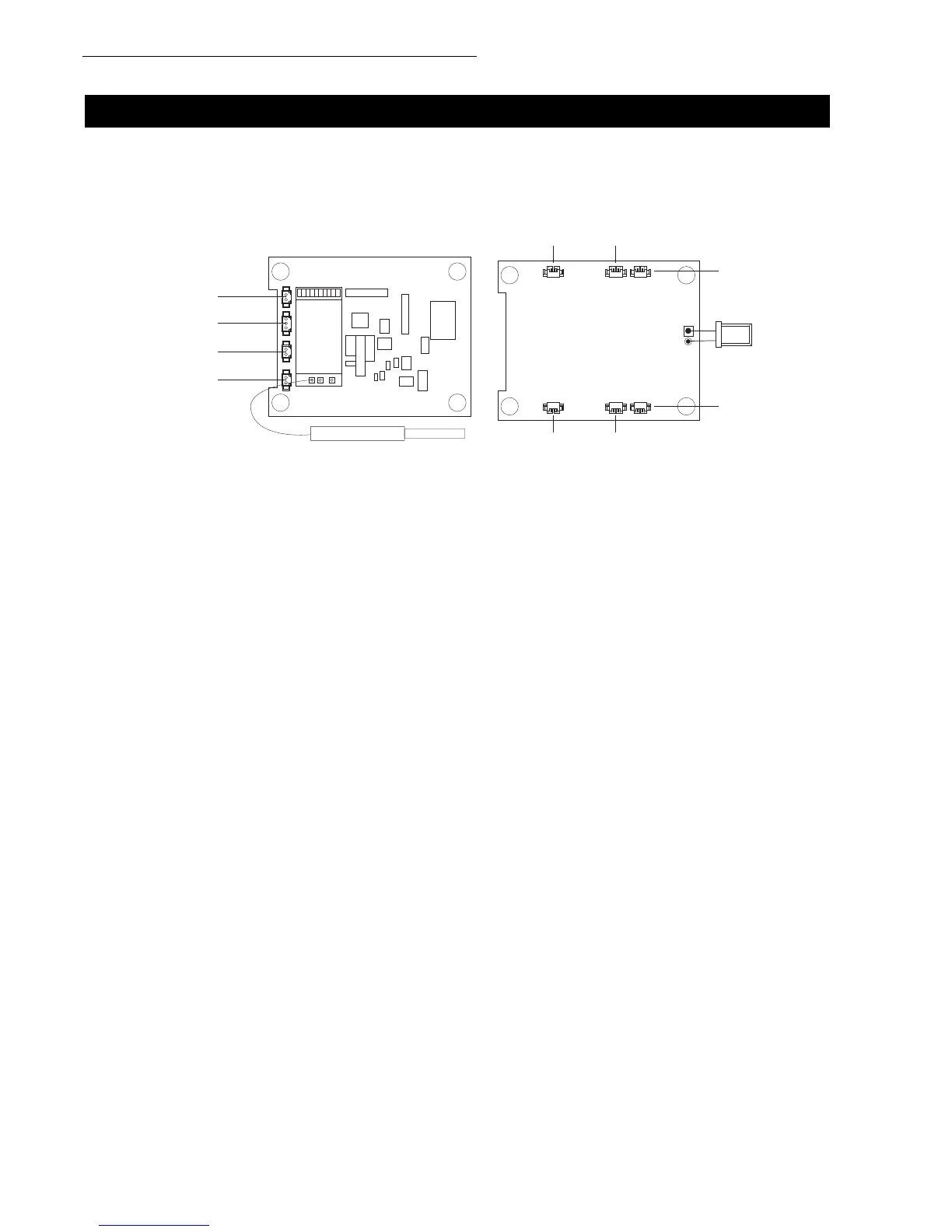

RECEIVER PCB CONNECTING DIAGRAM
Make sure your Receiver PCB is properly connected to ensure your drone operates normally. Check the
installation direction and connections based on the diagram below if needed.
- + + -
- + + -
Front side
Front indicator
socket
Camera socket
Front light socket
Front indicator
socket
Back side
Front motor
A socket
Rear motor
B socket
Rear indicator
socket
Power
socket
Rear indicator
socket
Front motor
B socket
Rear motor
A socket
