½
½
9/16” WRENCH

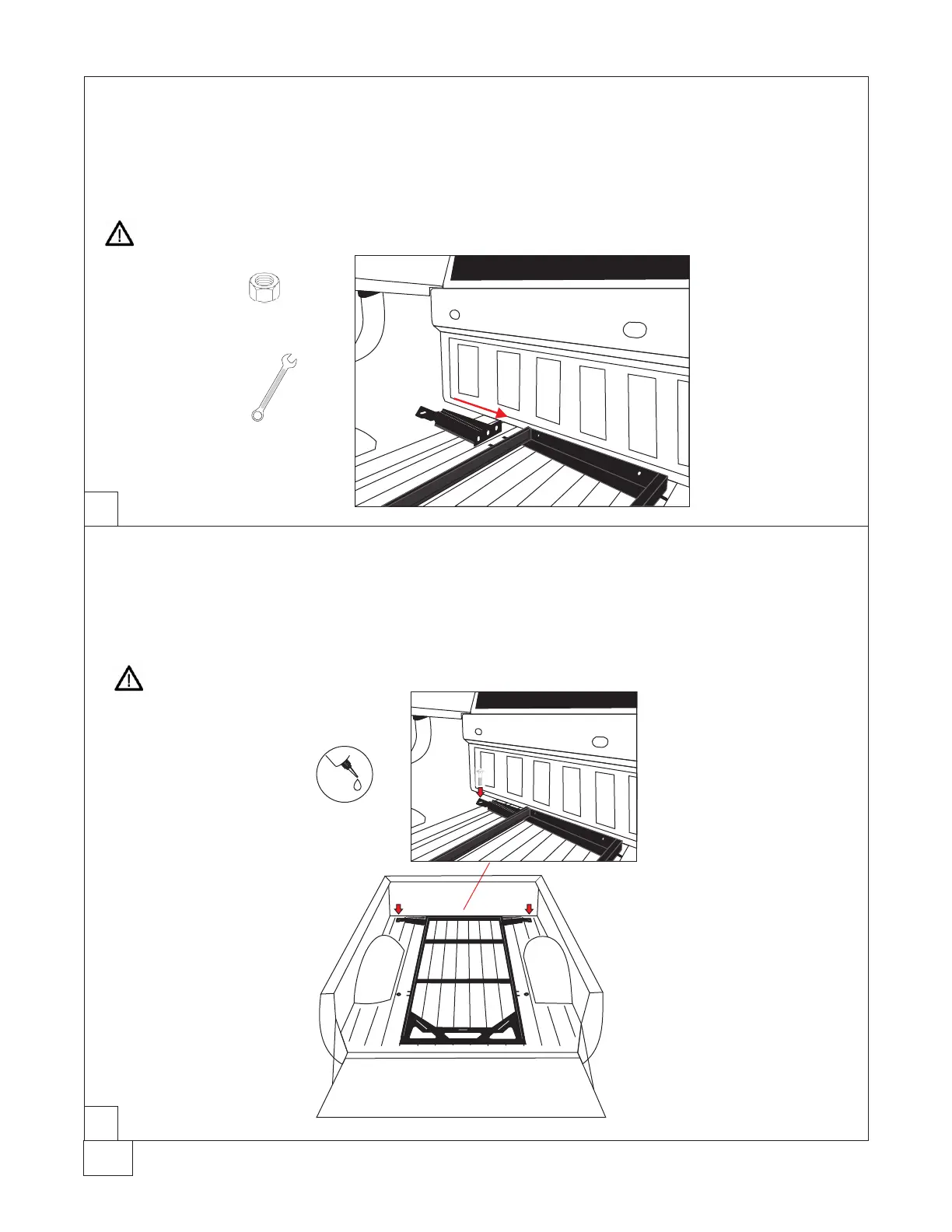

ATTACH FRONT (CAB END) MOUNTING BRACKETS
Attach LEFT and RIGHT mounting brackets to the threaded studs affixed to each side of the
base frame. Secure each bracket with two 3/8-18 serrated flange nuts & tighten with a 9/16”
wrench.
TIGHTEN TO MANUFACTURE SPECS, 21 FT. LBS.
5
SECURE FRONT (CAB END) MOUNTING BRACKETS TO THE BED
Apply a small bead of Loctite® 242 to the threads of the new factory bed bolts and secure both the
LEFT and RIGHT mounting brackets directly to the bed.
DO NOT TIGHTEN!!
6
12/19
BEDSLIDE.COM | 888.807.0099
INSTALLATION
x4
3/8-18 HEX NUT
To Next Page
