Document Feed Trays

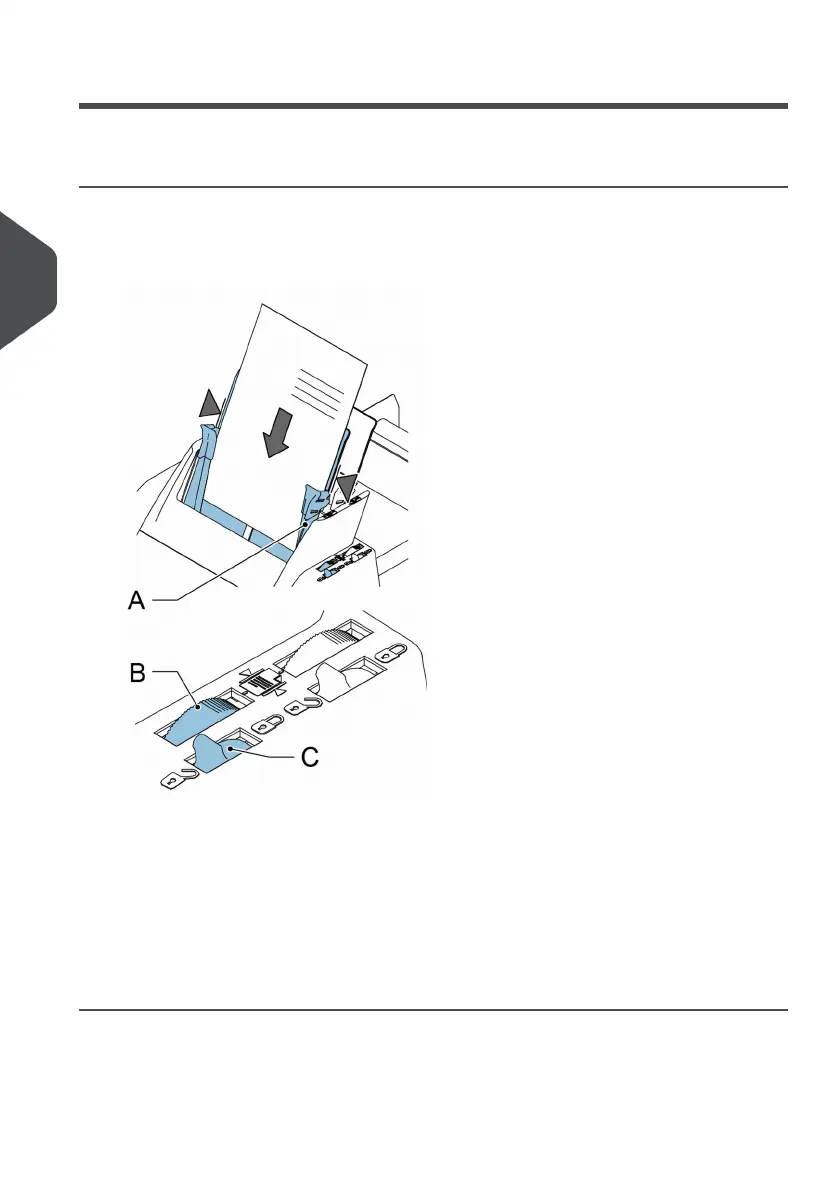

Adjusting the Side Guides of the Document Feeder
To adjust the side guides of the document feeder trays:
Pull lever C.1.
2. Move the side guides A apart as far as possible with thumb wheel B.
3. Put a small stack of documents between the side guides.
4. Move the side guides towards the documents with thumb wheel B. The space between
the side guides and the documents should be such that the documents have just
enough play to move freely.
5. Return lever C to its original position.
6. Remove the stack of documents.
26
| Page 26 | Jan-15-2019 03:21 | Loading the System
