Page 35

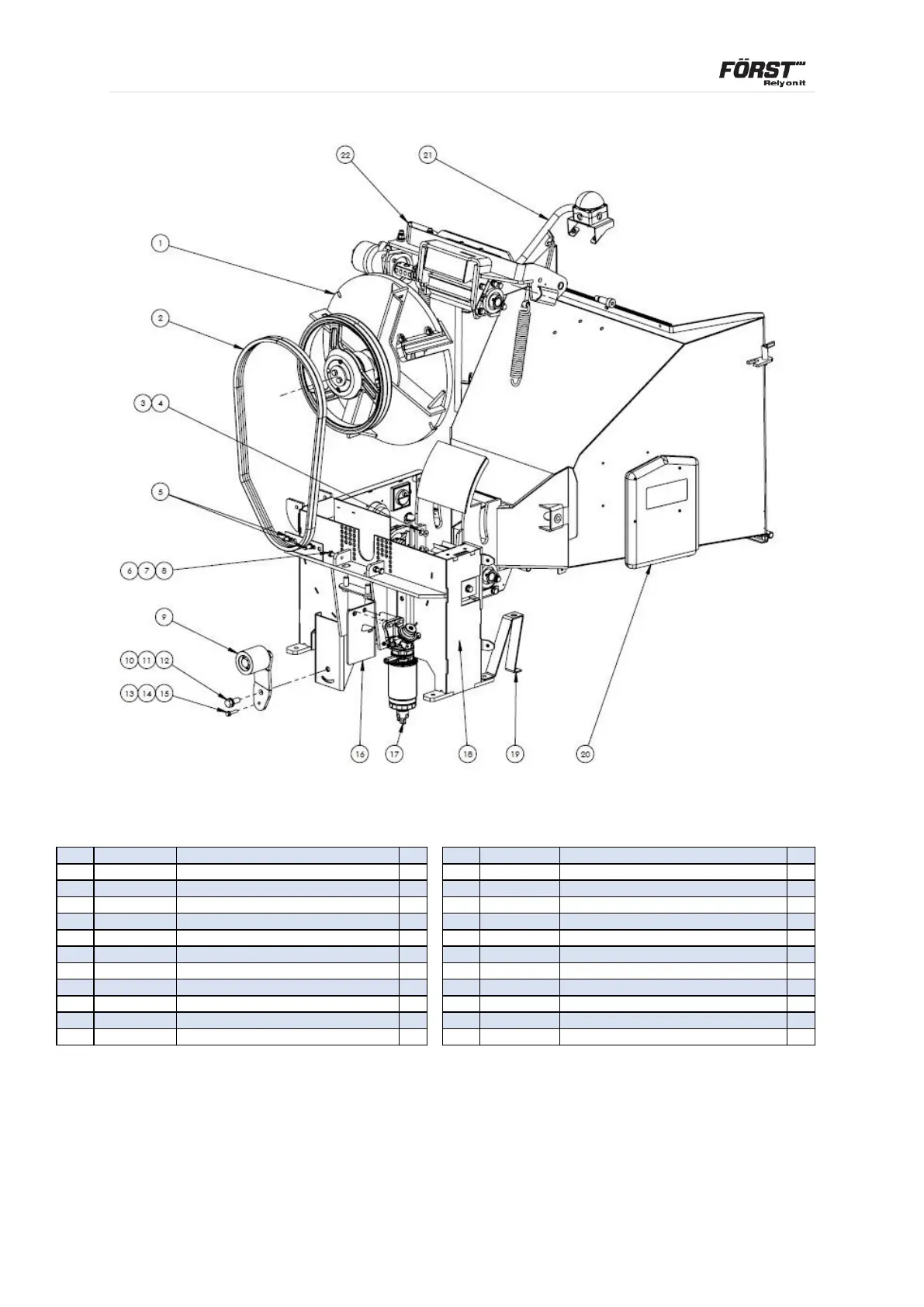

6.2 Chipping Chamber
Item Part No Description Qty Item Part No Description Qty
1 12-A-081 Flywheel Assembly 1 12 WCM16X40 M16x40 Gr.8.8 Hex Bolt 1
2 12-10-335 B75 Optibelt Belt 1940LD/1900LID 2 13 12-14-013 M8 Washer 1
3 12-12-505 M10x20 Gr.10.9 CSK Screw 2 14 12-14-024 M8 Serrated Washer 1
4 12-01-002 Side anvil 1 15 12-12-403 M8x40 Gr.8.8 Hex Bolt 1
5 12-10-071 Inductive proximity sensor kit 2 16 13-19-083 Filter Bracket Fabrication 1
6 12-99-008 M10 Serrated Washer 5 17 50-99-002 D18_24 MAIN FUEL FILTER_180508 1
7 12-13-006 M10 Plain Nut 2 18 24-19-013 Hopper & Chip Chamber Weldment 1
8 12-12-509 M10x35 Gr.8.8 Hex Bolt 3 19 24-19-057 Top Hat 1
9 24-A-002 Belt tensioner assembly 1 20 12-05-045 CUSTOM PACK MANUAL CASE 1
10 12-14-005 M16 Washer 1 21 12-A-084 E stop assembly 1
11 12-14-006.1 M16 Serrated Washer 3 22 12-A-086 Top Feed Roller Assembly 1
