FORST ST6 D42 - Bottom Feed Roller

Page 38

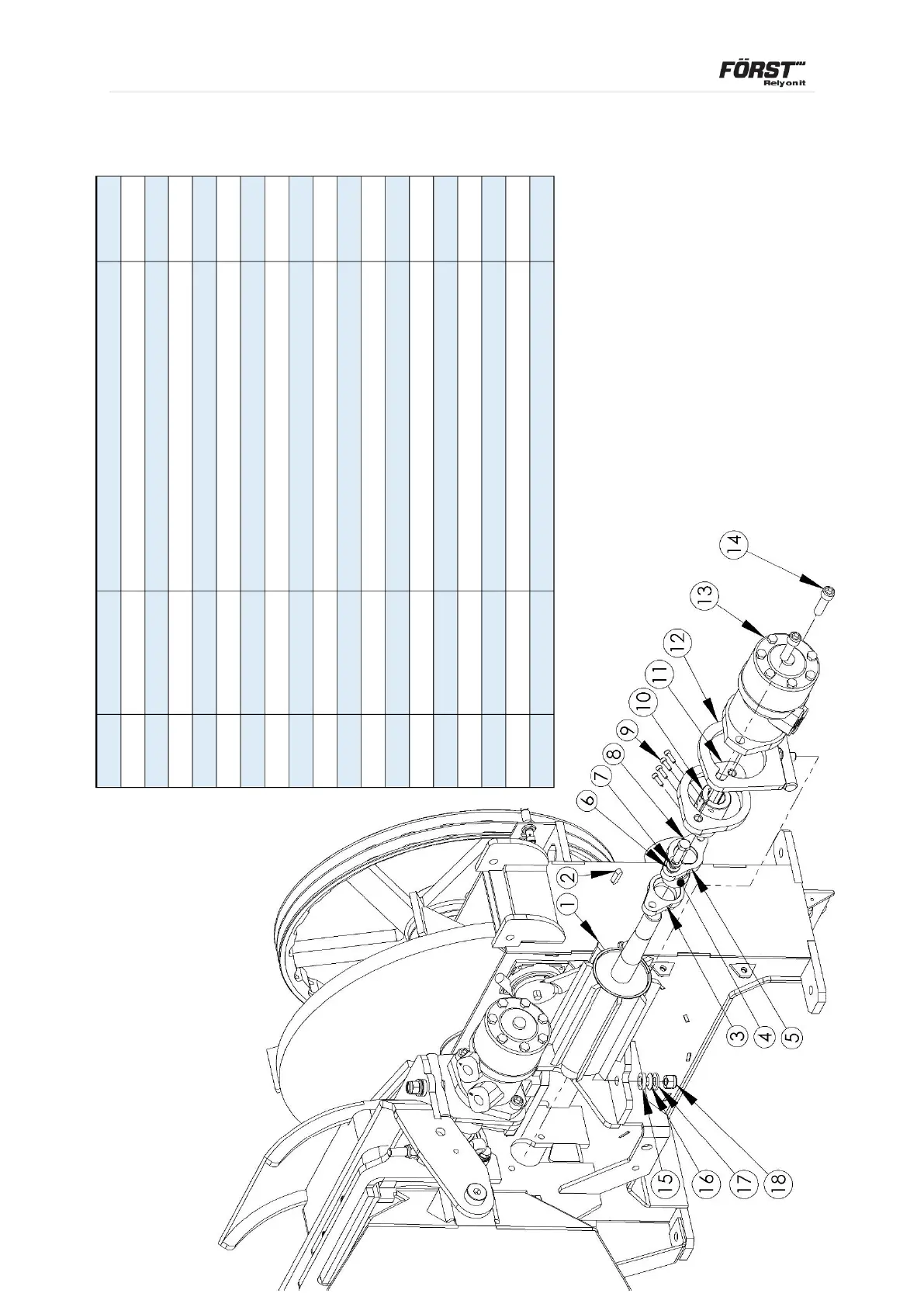

6.5 Bottom Feed Roller
Item
Part No
Description
Quantity
1
24-19-065
Bottom feed roller and shaft
1
2
12-20-004
Rectangular key 30x8x7
1
3
12-01-053
Feed roller spherical bearing
housing
1
4
12-01-052
Oilite 30 ID spherical bearing
1
5
12-01-062
Feed bearing clamp
1
6
12-14-009
M10 Washer ISO 7089
2
7
12-14-010
M10 spring washer DIN 128
2
8
12-12-509
M10 x 35Lg 8.8 Hex Head Screw
2
9
12-12-308
M5 x
20 Lg Socket Head Screw
– Zinc Blk.
4
10
12-01-049
Rigid shaft coupling 25 ID
1
11
12-19-133-D
Feed motor clamp
1
11a
12-03-201
Feed motor clamp shim
1
12
12-19-132-D
Feed motor
bracket fab. assy.
1
13
12-24-005
Hydraulic motor
1
14
12-12-609
M12 x
45 Lg 8.8 Socket Head Cap Screw
2
15, 16
12-10-195
M14 Spherical dished washer set
1
17
12-14-038
M14 Washer ISO 7089
1
18
12-13-018
M14 Nyloc nut ISO 7040
1
