FORST ST6 D42 - Chute Assembly

Page 43

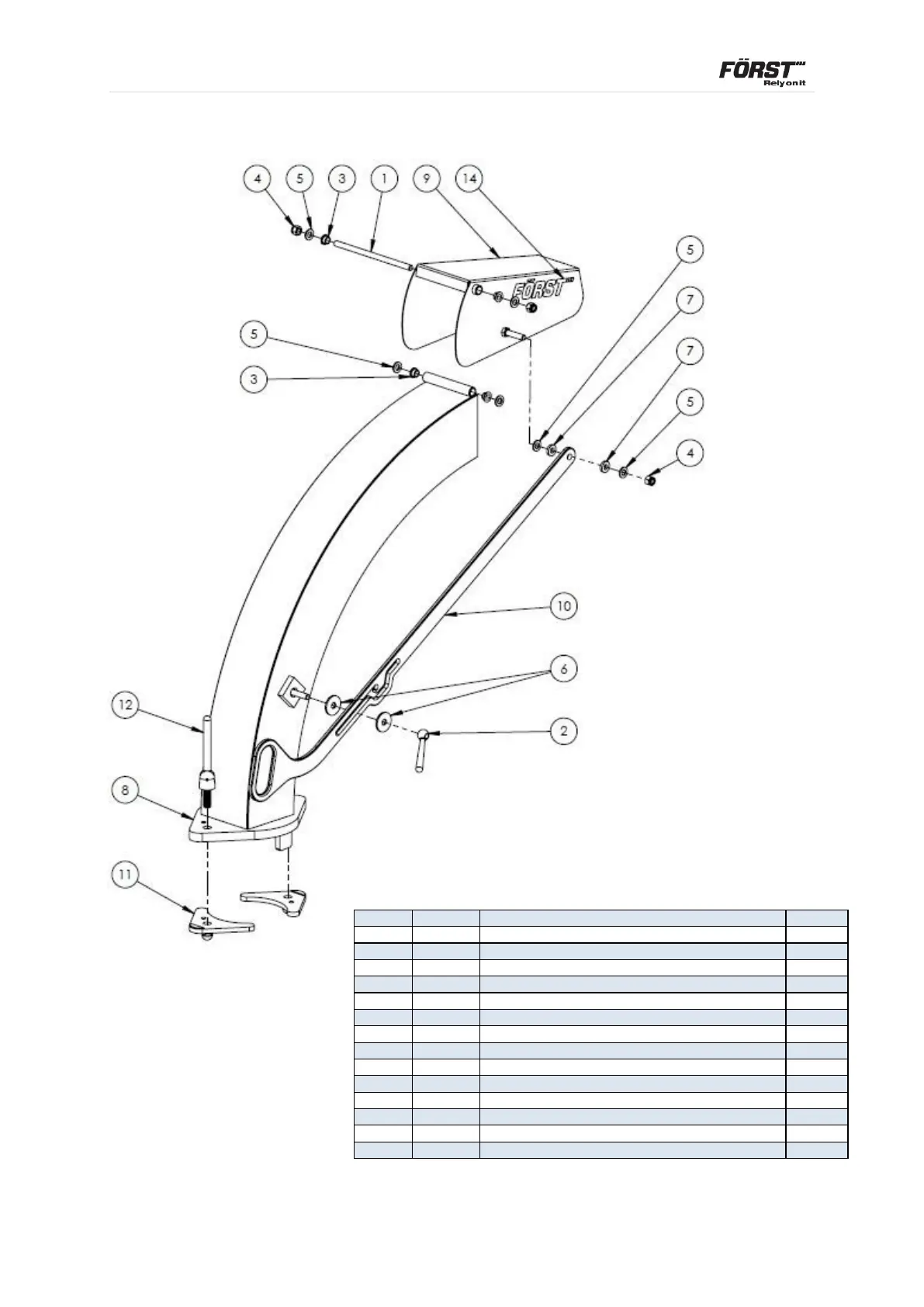

6.10 Chute Assembly
Item No Part No Description Quantity
1 12-01-043 Hood hinge stud 1
2 12-10-004 M12 female steel handle 1
3 12-11-007 Plain bearing 12 ID, 16 OD, 22 flange x 10 Lg 4
4 12-13-003 M12 Nyloc 3
5 12-14-003 M12 Washer 6
6 12-14-004 M12 Washer extra large OD 44 x 4 THK ISO 7094 2
7 12-15-020
CNE60 Neoprene Washer 12mm x 25mm x 5mmTHK
2
8 12-19-051 Chute fab assy 1
9 12-19-054 Chute hood fab assy 1
10 12-19-055 Chute handle 1
11 12-19-056 Chute clamp fab assy 2
12 12-19-164 M16 Chute Clamp Assembly with 150mm Handle 2
13 12-20-001 Spring Pin Slotted 10 DIA x 30Lg ISO 8752 2
14 12-26-034 Forst small orange 2
