Installation Page 4 FortiFone User Guide

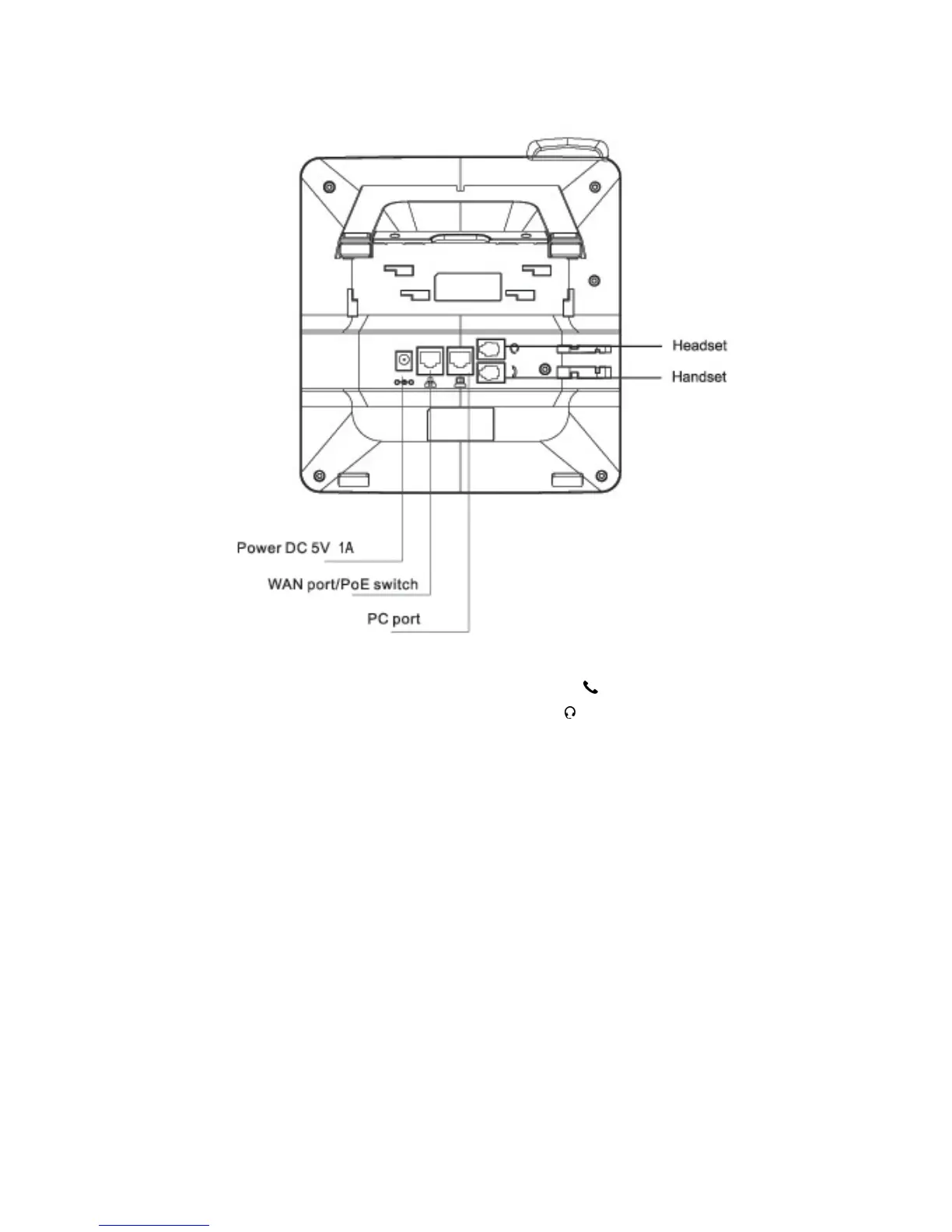

Connecting the phone
1. Connect the handset cord to the handset and the jack on the phone.
2. Optionally connect an amplified headset to the jack.
3. Connect the WAN port to the network with the provided Ethernet cable.
4. Optionally connect your desktop PC to the PC port with an Ethernet cable (not supplied).
5. If the network supports PoE, a power adapter is not required. The phone requires 5.7 W to
function with PoE. If PoE is not supported on the network, connect the power adapter to the
DC 5V 1A power jack.
