64

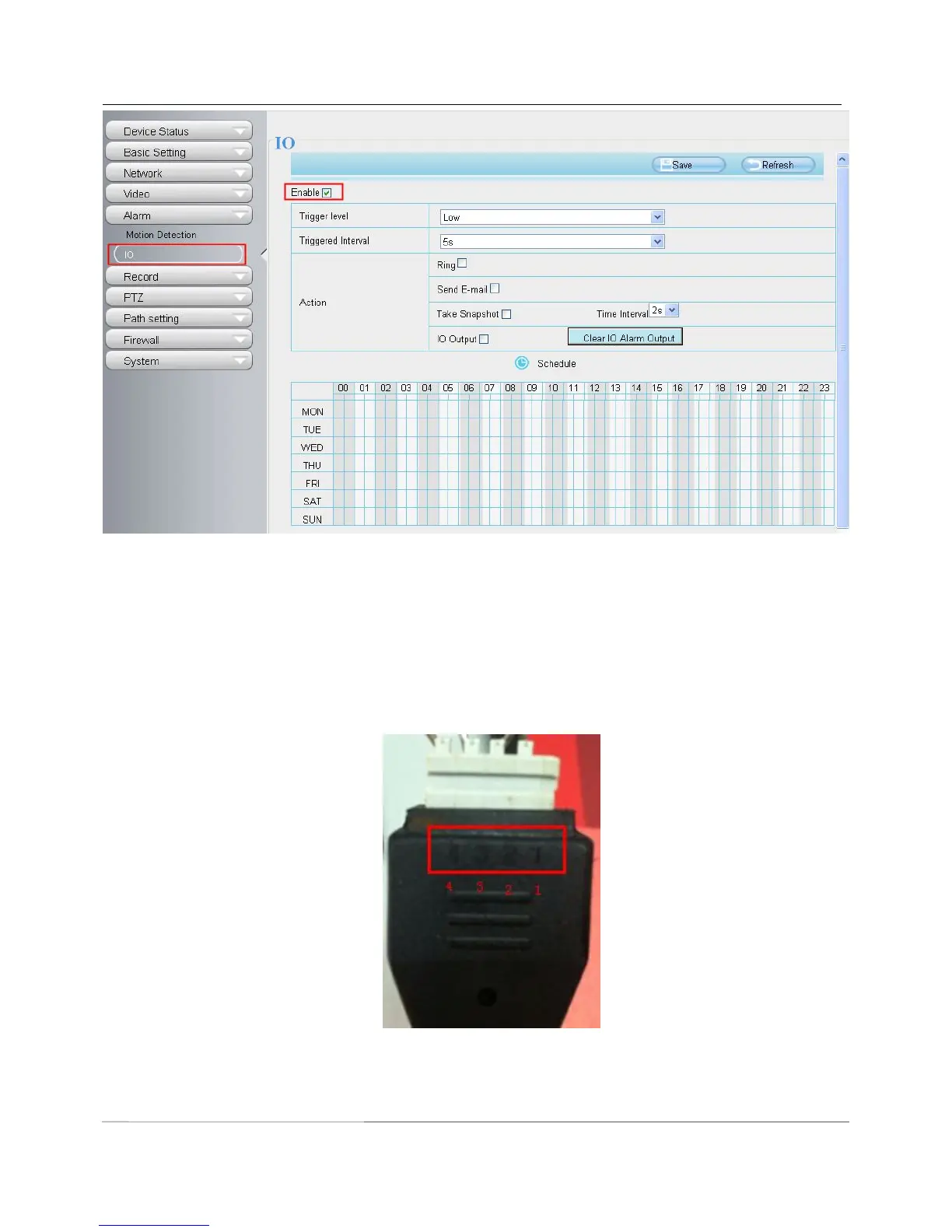

Figure 4.60
There is an IO alarm input/output lines in the FOSCAM camera tails, as shown in Figure 4.608. Enable IO
alarm need this cable to connect to the alarm device (door sensor, infrared sensor, smoke detector, etc.).
I/O Alarm has four ports:
 Port 1 and port 2 indicate IO alarm input
 Port 3 and port 4 indicate IO alarm output
Figure 4.61
