Overview
This switch is an ideal solution for delivering Internet access to
individual users in multi-dwelling or multi-tenant units (MDUs/
MTUs), such as apartment housing blocks, commercial buildings
or hotels. This switch provides rate-limitable connections to
individual users with secure port-to-port isolation between users
– all with conventional Ethernet cabling and adapters. At an
MDU/MTU site, up to 24 other switches can be cascaded from
one switch, providing broadband Internet access for up to 24
individual users on each switch.

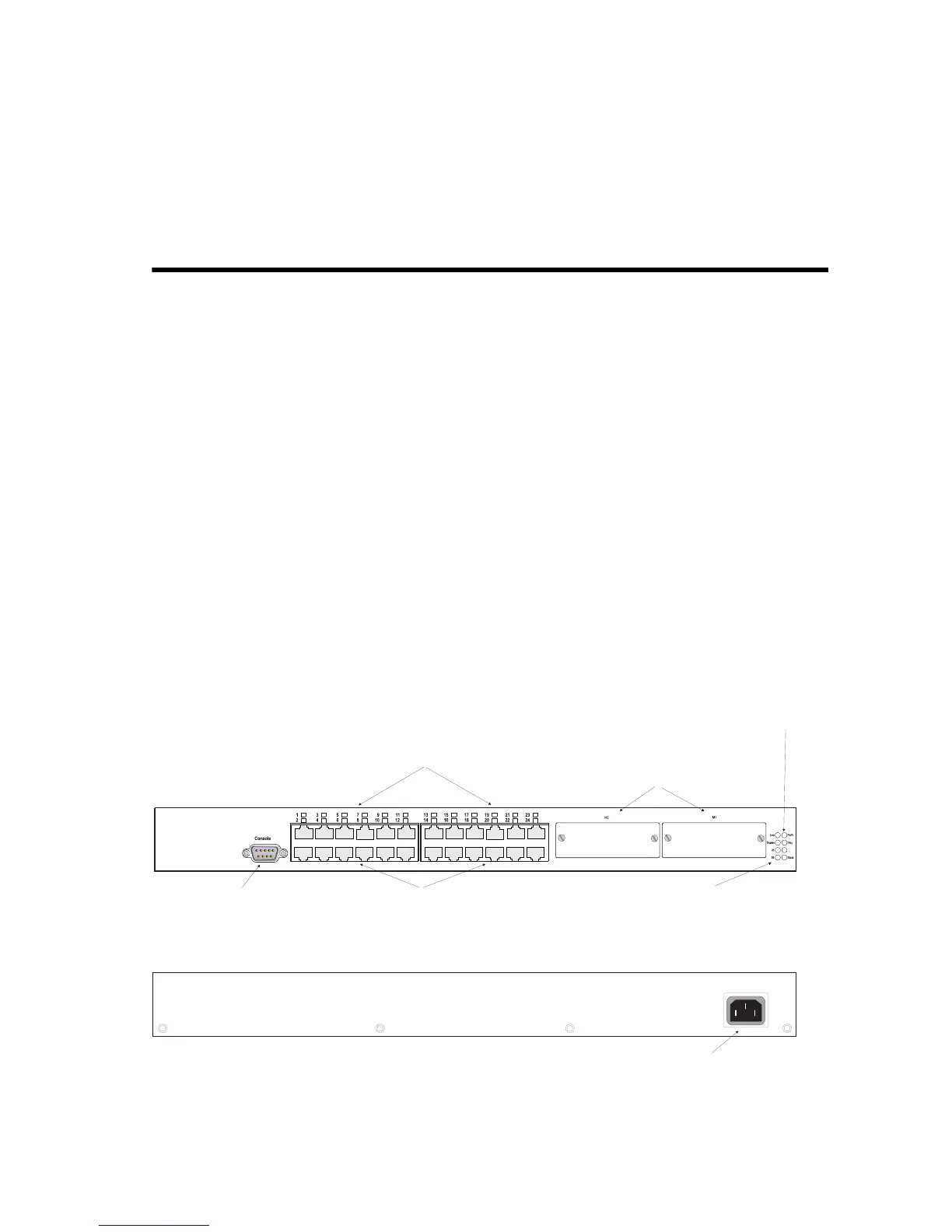

Figure 2-1. Front and Rear Panels
Media Slots
Combo Gigabit
Ethernet ports
RJ-45/SF
System Indicators
PWR, Diag, Stack
10/100 Mbps RJ-45 Ports
Port Status Indicators (1-24)
On Amber: 10 Mbps link
Flashing Amber: 10 Mbps link/activity
On Green: 100 Mbps link
Flashing Green: 100 Mbps link/activity
Console Port
Use this port for console connection
Module Status Indicators (25/26)
On Amber: 10/100 Mbps link
Flashing Amber 10/100 Mbps link/activity
On Green: 1000 Mbps link
Flashing Green: 1000 Mbps link/activity
100-240V~
50/60Hz, 2A
Power Socket
