Console Port Pin Assignments
The DB-9 serial port on the switch’s front panel is used to connect
to the switch for out-of-band console configuration. The on-board
menu-driven configuration program can be accessed from a
terminal or a PC running a terminal emulation program. The pin
assignments used to connect to the serial port are provided in the
following tables.

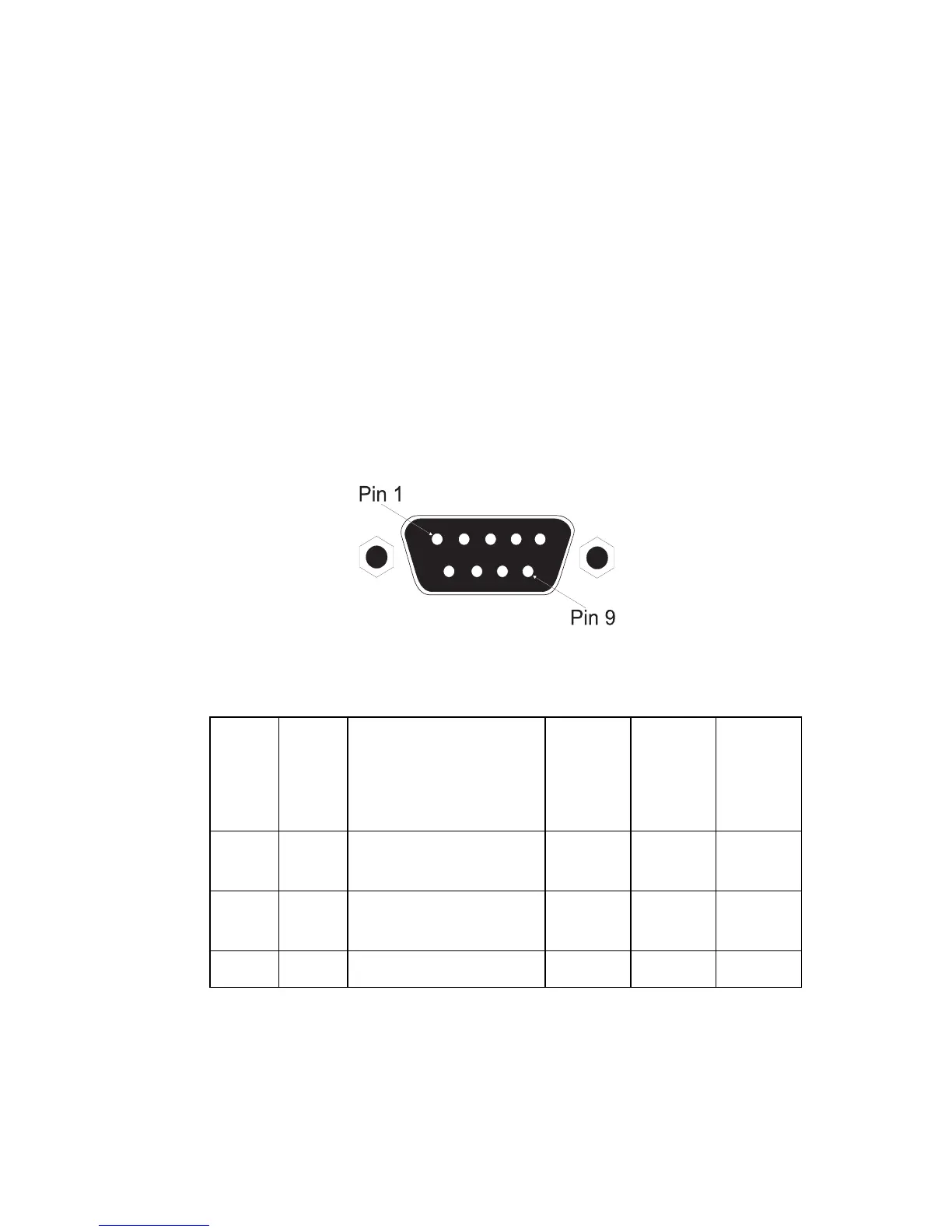

DB-9 Port Pin Assignments
Console Port to 9-Pin DTE Port on PC
EIA
Circ
uit
CCI
TT
Sign
al
Description Switc
h’s
DB9
DTE
Pin #
PC
DB9
DTE
Pin #
PC
DB25
DTE
Pin #
BB 104 RxD (Received
Data)
223
BA 103 TxD (Transmitted
Data)
332
AB 102 SG (Signal Ground) 5 5 7
No other pins are used.
