Installing a FastIron LS Switch
September 2007 © 2007 Foundry Networks, Inc. 3 - 7

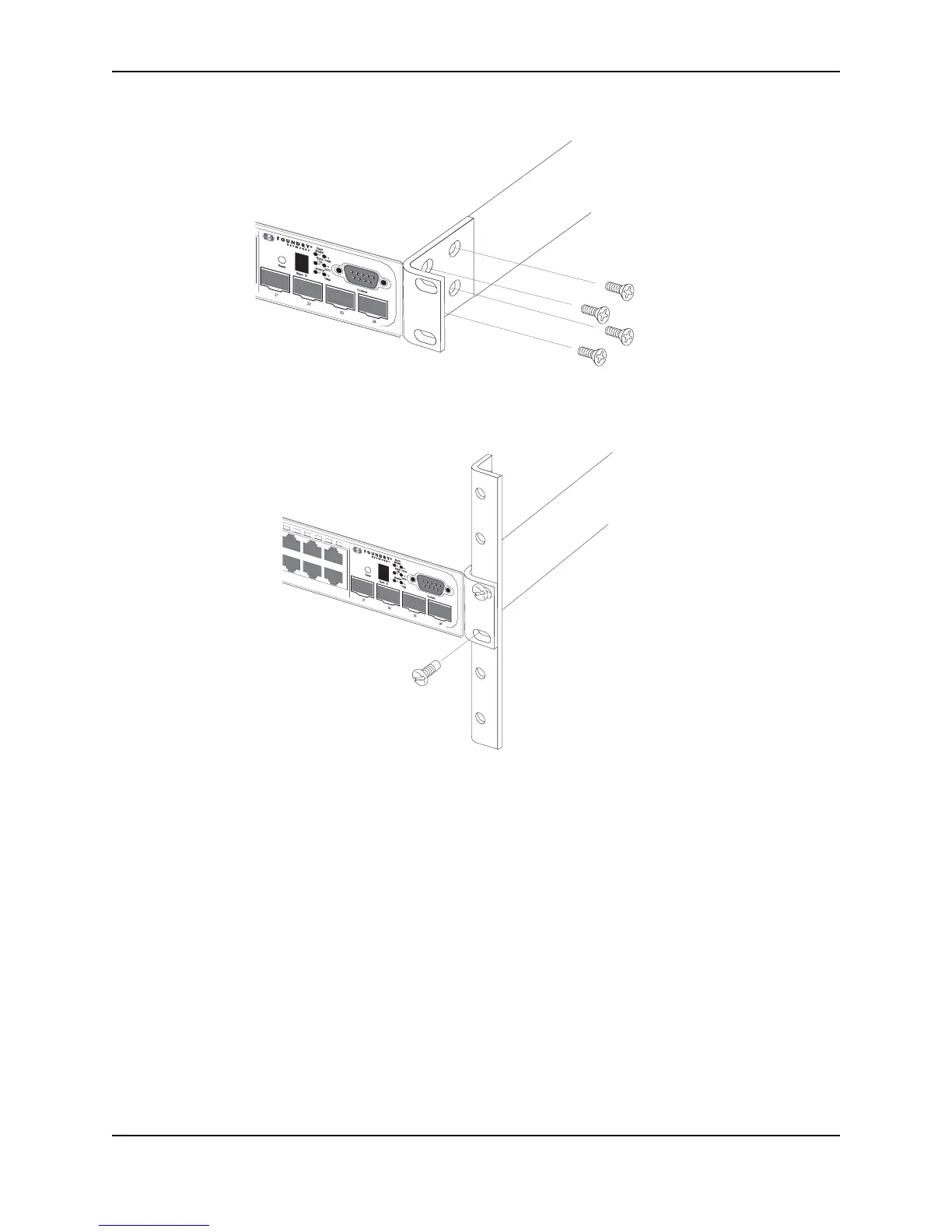

Figure 3.2 Attaching the brackets
3. Attach the device in the rack as illustrated in Figure 3.3.
Figure 3.3 Installing the device in a rack
4. If installing a single switch only, proceed to “Powering On the System” on page 3-16.
5. If installing multiple switches, mount them in the rack, one below the other, in any order.
6. If also installing an RPS, mount it in the rack below the other devices.
Wall Mount Installation
1. To mount the device on a wall, you must order and install the Wall Mount Bracket kit (part number 70076-
000). Follow the instructions included in the kit to mount the device on a wall.
2. Proceed to “Powering On the System” on page 3-16.
FLS 624
Fastlron LS 624
FLS 624
Fastlron LS 624
