Foundry Networks FastIron LS 624 User Manual

Installing a FastIron LS Switch
September 2007 © 2007 Foundry Networks, Inc. 3 - 9
• User Agreement envelope
• Registration card
LEDs

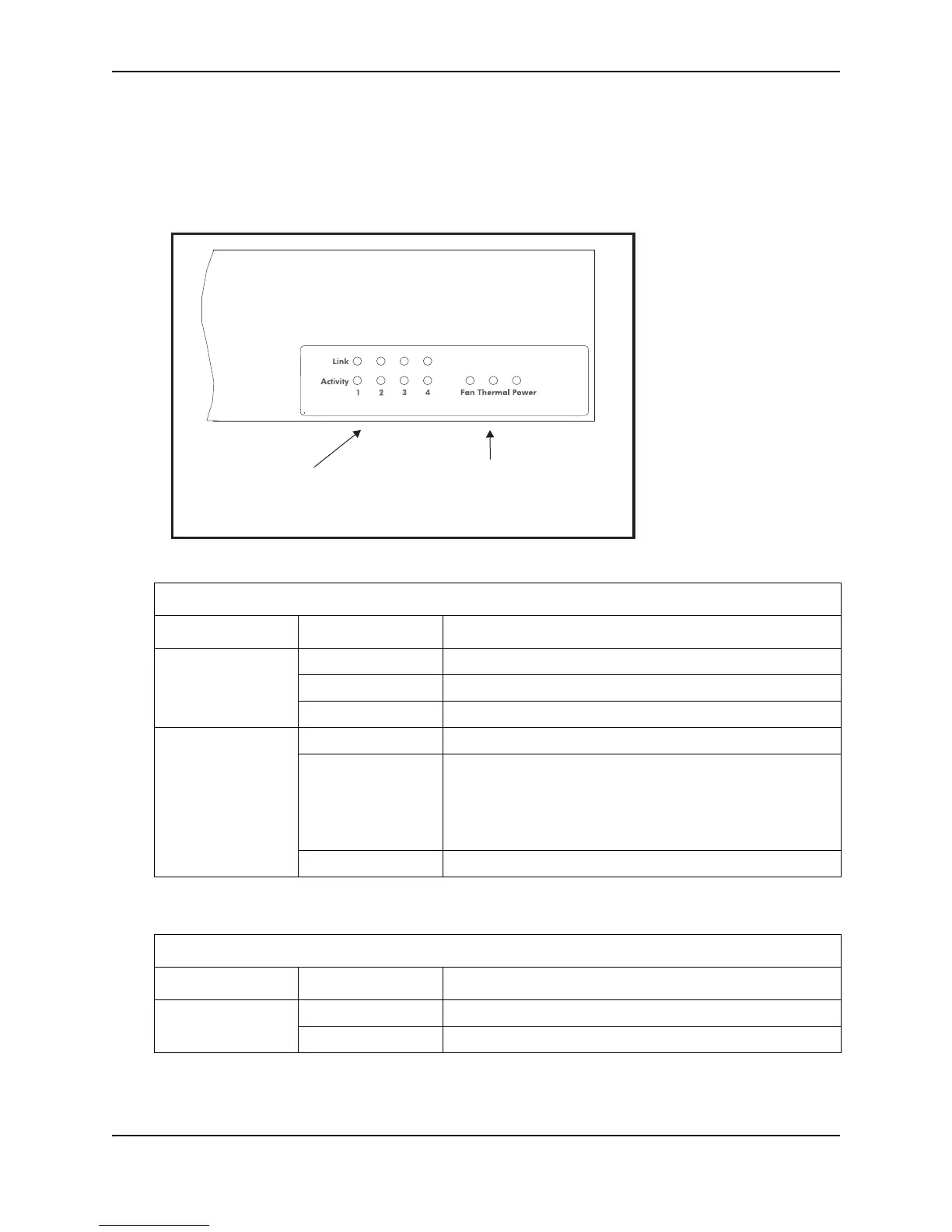

The following diagram and tables describe the functions of the RPS2-EIF LEDs
Port Status LEDs - RPS2-EIF
LED (1~4) Condition Status
Link Off The port does not have a valid connection to a switch.
On Yellow The port has a valid connection to a switch.
Flashing Yellow There has been a RPS internal power failure.
Activity Off The port is not providing power to the connected switch.
Flashing Green The port has been shut down due to one of the following
conditions:
• The unit has detected an over-current condition.
• One or more of the unit’s fans have failed.
On Green The port is providing power to a connected switch.
System Status LEDs - RPS2-EIF
LED Condition Status
Power On Green AC power is being supplied to the RPS.
Off No AC power is being supplied to the RPS.
