Foxconn 945G7AD User Manual

5
Chapter 1 Product Introduction

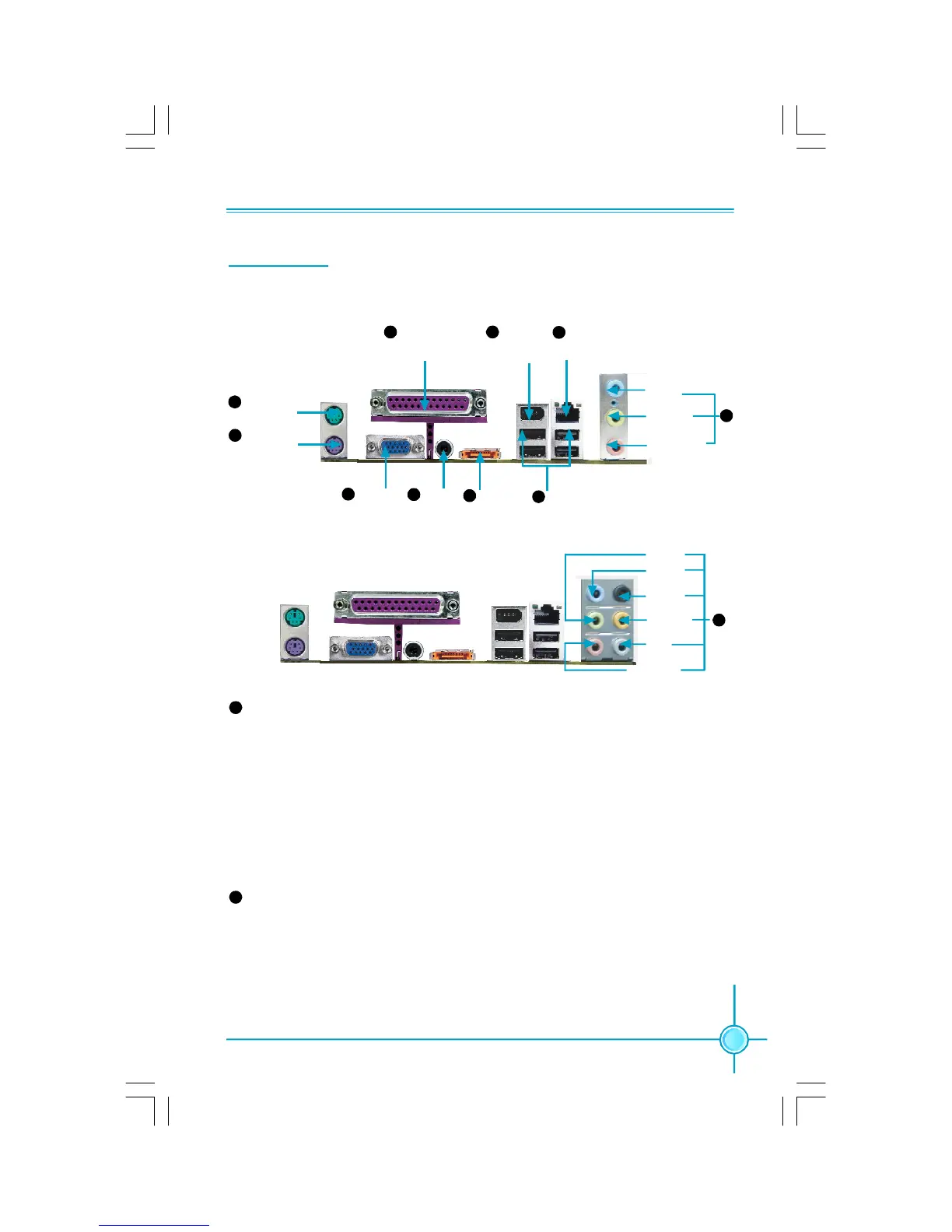

Rear I/O Ports
This motherboard provides the ports as below:
USB 2.0 Port
LAN Port(-K)Parallel Port
(Print Port)
PS/2 Mouse
Port
PS/2 Keyboard
Port
eSATA Port
rear
CEN/LFE
Microphone
Line-in
Line-out
Side
Line-in
(Rear)
Line-out
(Front)
Microphone
(CEN/LFE)
For -6 models
For -8 models
Line-in jack,Line-outjack,Microphone jack (for -6models)
When using a 2-channel sound source,the Line-out jack is used to connect to
speaker or headphone;the Line-in port connects to an external CD player,tape
player or other audio device. The Microphone jack is used to connect to the
microphone.
When using a 6-channel sound source,connect the front speaker to the green
audio output;connect the rear speaker to the blue audio output;connect the
center speaker/subwoofer to the red Microphone output.
Line in, Line out, Microphone, Rear, LEF/CEN, Side Jacks(for -8models)
When using an 8-channel sound source, connect the front speaker to the green
audio output; connect the rear sound speaker to the black audio output; con-
nect the center speaker/subwoofer to the orange audio output; connect the side
sound speaker to the grey audio output.
1
2
5
6
7
1394 Port
(optional)
4
8
VGA Port
(optional)
Coaxial
S/PDIF out
Port
3
10
3
3
9
10
10
7
