Chapter 2 Installation Instructions
17
7 8
1
2
3D3V_SYS
SPI_HOLDJ
ICH_SPI_CLK
ICH_SPI_MOSI
ICH_SPI_CSJ
ICH_SPI_MISO
Key
GND
SPI

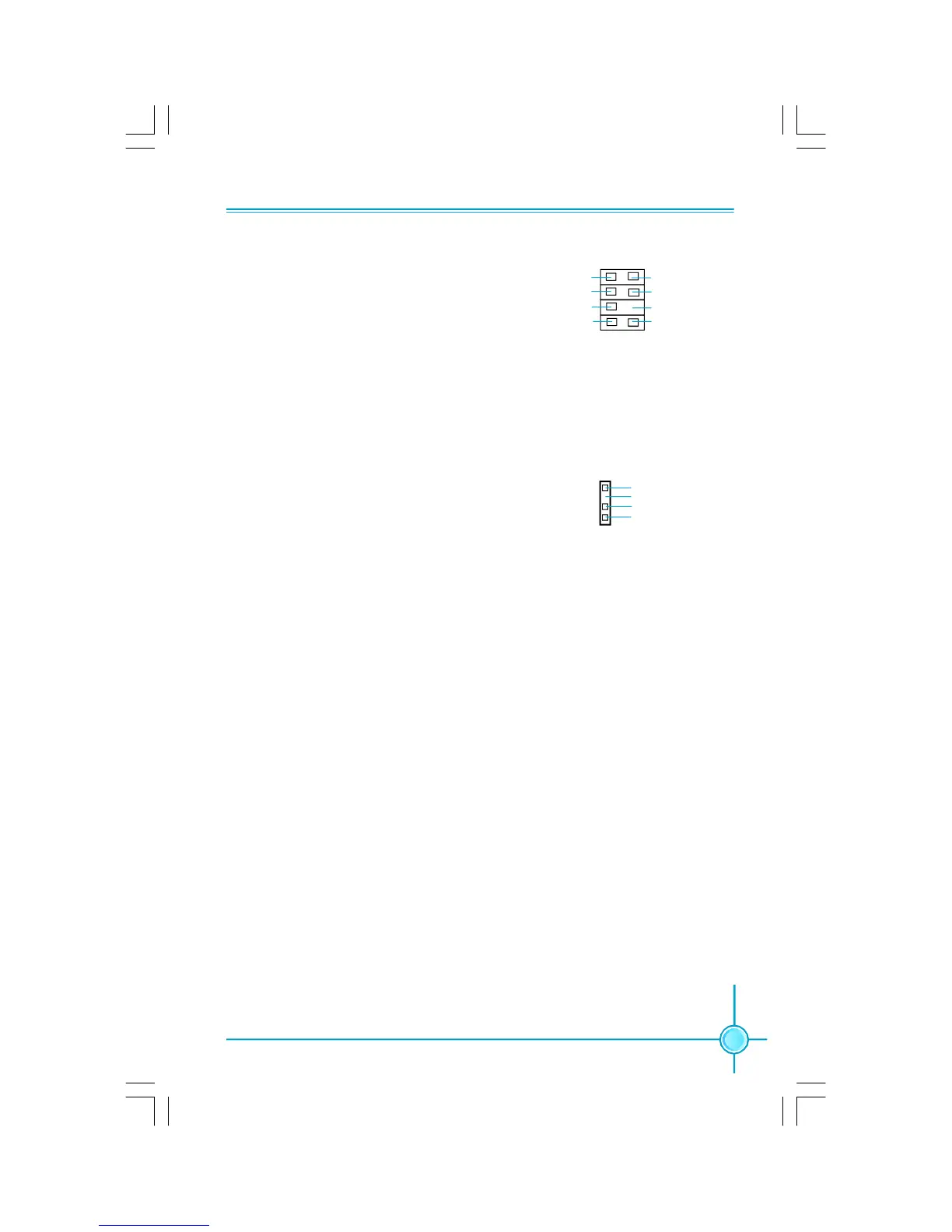

SPI Connector (optional)
This motherboard provides a SPI
connector, which is used to flash the
SPI BIOS. Connect one side of a cable
to the connector, then attach the BIOS
Flash Card to the other side of the cable.
Speaker Connector: SPEAKER
The speaker connector is used to con-
nect speaker of the chassis.
SPEAKER
1
SPKJ
NC
SPKJ
Empty
