5-5 Setting Up a Non-Bootable RAID Array
This section assumes the following setup :
■ Boot Disk with Windows XP installed :
One hard disk HDS728090PLAT20 (80GB) is connected to the IDE channel, and set
to Master.
■ A Mirrored RAID Array Disk :
Two SATA hard disks are congured as a mirrored RAID1 array, they are :
Hitachi HDT725025VLA3, (250.05GB) connected to SATA port2 of the motherboard.
Seagate ST3320620AS, (320.07GB) connected to SATA port3.
■ A SATA DVD Drive :
A DVD drive connected to SATA port1.

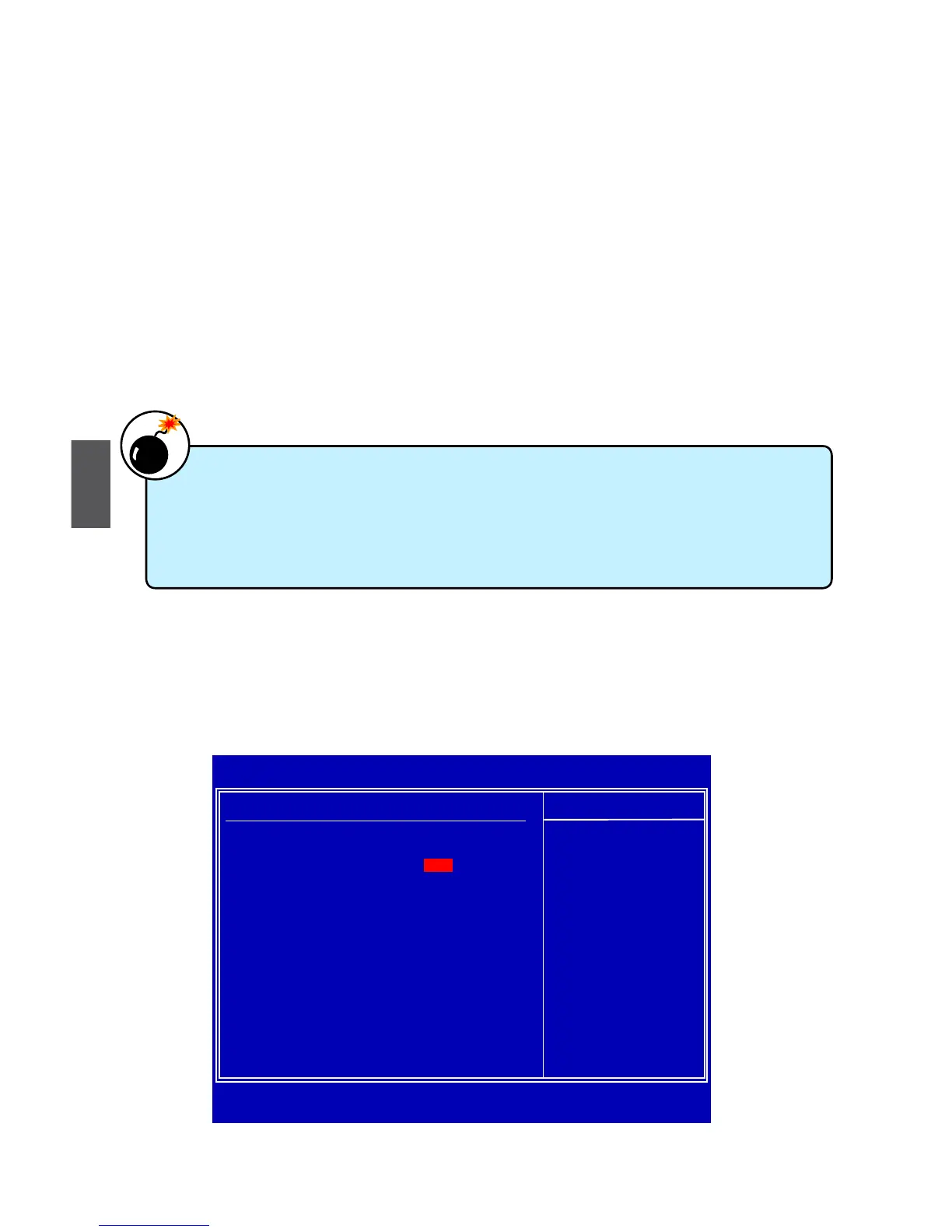

1. Reboot your system, and go to "IDE Conguration" menu.
Enable the RAID function. Press [F10] to save the settings and reboot.
To achieve the best performance and reliability, we highly recommend you
using the hard disks with the same brand, size and model number. Though
we are using different brand of hard disks as an example here, the purpose
is only for easy understanding.
W
A
R
N
I
N
G
!
CMOS Setup Utility - Copyright (C) 1985-2008, American Megatrends, Inc.
IDE Conguration
IDE Conguration
Help Item
OnBoard PCI IDE Controller
[Enabled] Native IDE
OnChip SATA Channel [Enabled] I RAID
OnChip SATA Type [RAID] AHCI
SATA IDE Combined Mode [Enabled] Legacy IDE
↑↓←→:Move Enter:Select +/-/:Value F10:Save ESC:Exit F1:General Help
F9:Optimized Defaults
[RAID]
