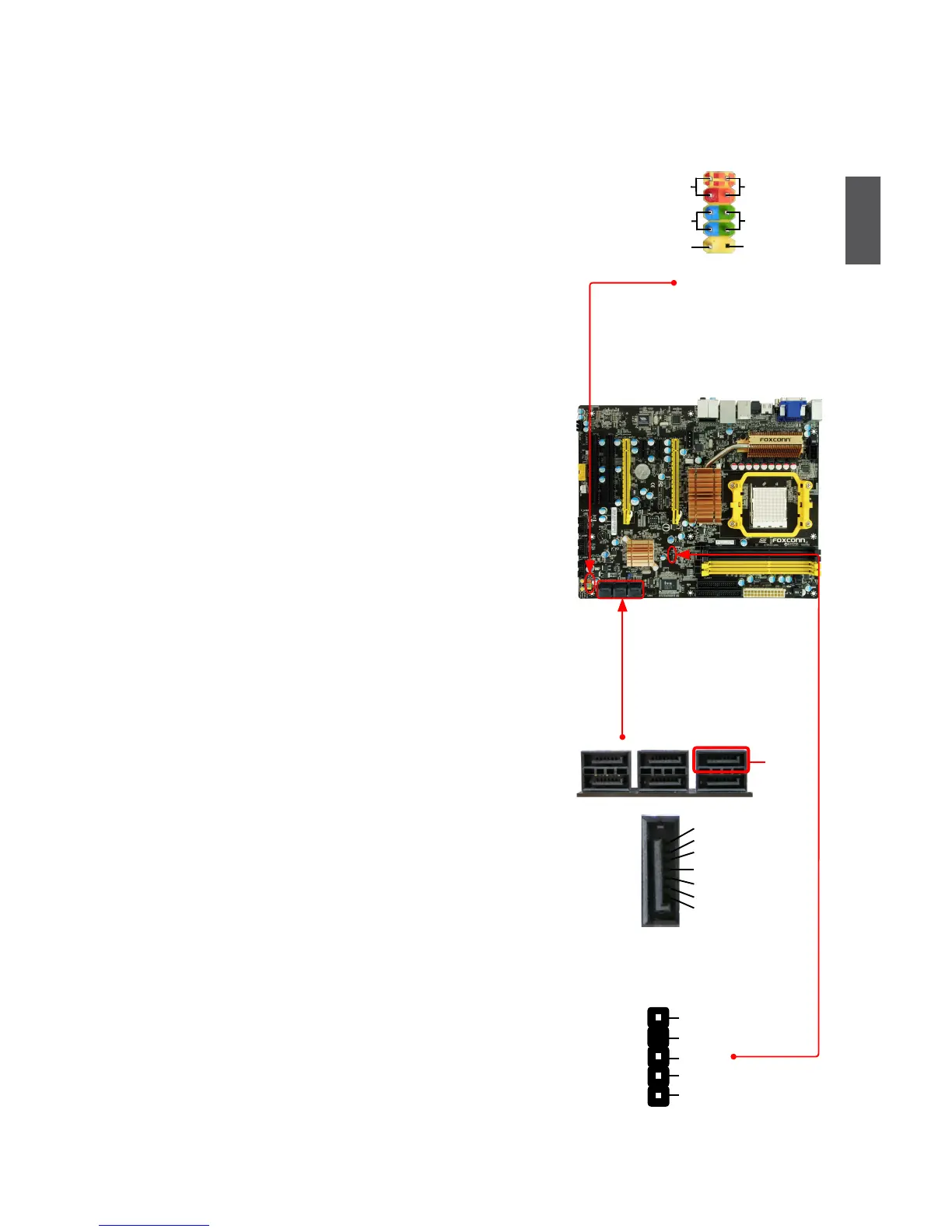

Front Panel Connector : FP1
This motherboard includes one connector for connecting the
front panel switch and LED Indicators.
Hard Disk LED Connector (HDD-LED)
Connect to the chassis front panel IDE indicator LED. It
indicates the active status of the hard disks. This 2-pin
connector is directional with +/- sign.
Reset Switch (RESET-SW)
Attach the connector to the Reset switch on the front
panel of the case; the system will restart when the switch
is pressed.
Power LED Connector (PWR-LED)
Connect to the power LED indicator on the front panel of
the chassis. The Power LED indicates the system’s status.
When the system is in operation (S0 status), the LED is
on. When the system gets into sleep mode (S1) , the LED
is blinking; When the system is in S3/S4 sleep state or
power off mode (S5), the LED is off. This 2-pin connector
is directional with +/- sign.
Power Switch Connector (PWR-SW)
Connect to the power button on the front panel of the chas-
sis. Push this switch allows the system to be turned on and
off rather than using the power supply button.
Serial ATA Connectors : SATA1_SATA2, SATA3_
SATA4, SATA5_ESATA
The Serial ATA connector is used to connect with SATA Hard
Disk or CD devices which supporting this feature. The current
Serial ATA II interface allows up to 300MB/s data transfer
rate.
Note: There will be an ESATA cable in the package, you can
use it to connect an ESATA hard disk to the upper SATA port
of SATA5_ESATA on the motherboard(as depicted).
IrDA Connector : IR
This connector supports infrared wireless trans-mitting and
receiving device.
HDD-LED
RESET-SW
NC
+
-
PWR-SW
+
-
PWR-LED
EMPTY
1
2
10
9
FP1
SATA1_SATA2/SATA3_SATA4/
SATA5_ESATA
GND
TX+
TX-
GND
RX-
RX+
GND
1
ESATA
1
2
3
4
5
+5V
EMPTY
IRRX
GND
IRTX
IR
