5. A message prompts.
Press [Ctrl-Y] to erase the RAID array.
6. Another screen prompts.
Press any key to use the maximum capacity.
7. The creation of RAID 5 is completed.
The nal capacity of 239.99GB (119.995GB*2) is twice capacities of the smallest
size of the three hard drives.

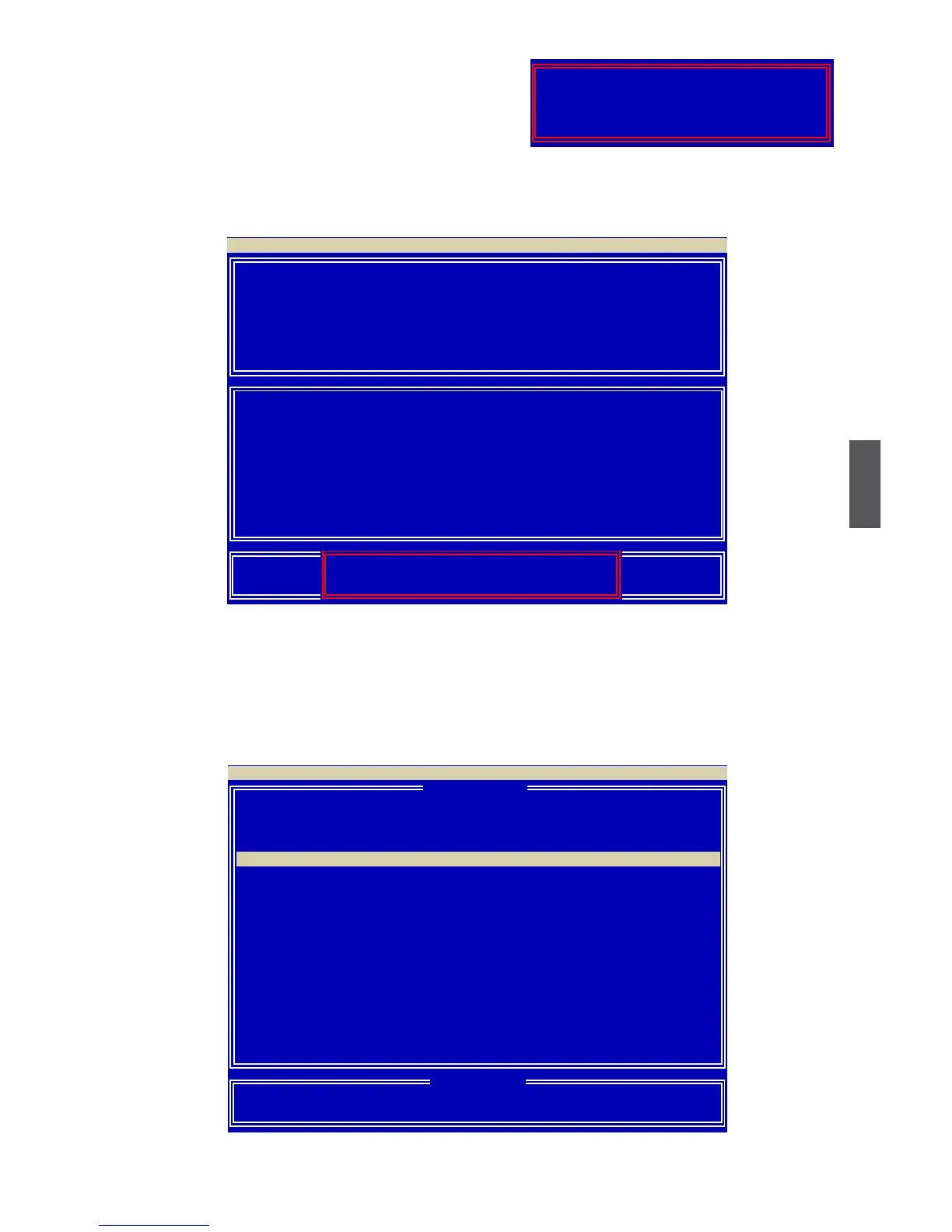

[ Dene LD Menu ]
LD No RAID Mode Total Drv Capacity(GB) Status
LD 1 −−−− −−−− −−−−−−−− −−−−
LD 2 −−−− −−−− −−−−−−−− −−−−
LD 3 −−−− −−−− −−−−−−−− −−−−
LD 4 −−−− −−−− −−−−−−−− −−−−
LD 5 −−−− −−−− −−−−−−−− −−−−
LD 6 −−−− −−−− −−−−−−−− −−−−
LD 7 −−−− −−−− −−−−−−−− −−−−
LD 8 −−−− −−−− −−−−−−−− −−−−
LD 9 −−−− −−−− −−−−−−−− −−−−
LD10 −−−− −−−− −−−−−−−− −−−−
[↑] Up [↓] Down [ESC] Exit [Enter] Select
Option ROM Utility (c) 2008 Advanced Micro Devices, Inc.
[ Keys Available ]
LD 2 RAID 5 3 239.99 Functional
[ Dene LD Menu ]
[ Dene LD Menu ]
[ Dene LD Menu ]
[ Drives Assignment ]
LD No RAID Mode Total Drv
LD 1 RAID 5 3
Stripe Block: NA Fast Init: ON
Gigabyte Boundary: ON Cache Mode: WriteThru
Channel :ID Drive Model Compatibilities Capacity(GB) Assignment
1 :Mas HDS728090PLA380 SATA 3G 82.34 N
2 :Mas WDC WD1200JD-98HBB0 SATA 1.5G 120.03 Y
3 :Mas Hitachi HDT725025VLA3 SATA 3G 250.05 Y
4 :Mas ST3320620AS SATA 1.5G 320.07 Y
Fast Initial
Option ROM Utility (c) 2008 Advanced Micro Devices, Inc.
Press Ctrl-Y to Modify Array Capacity or press any
other key to use maximum capacity...
Fast Initialization Option has been selected
It will erase the MBR data of the disks,
<Press Ctrl-Y Key if you are sure to erase it>
<Press any other key to ignore this option>
