Foxconn G31MXP User Manual

4
1

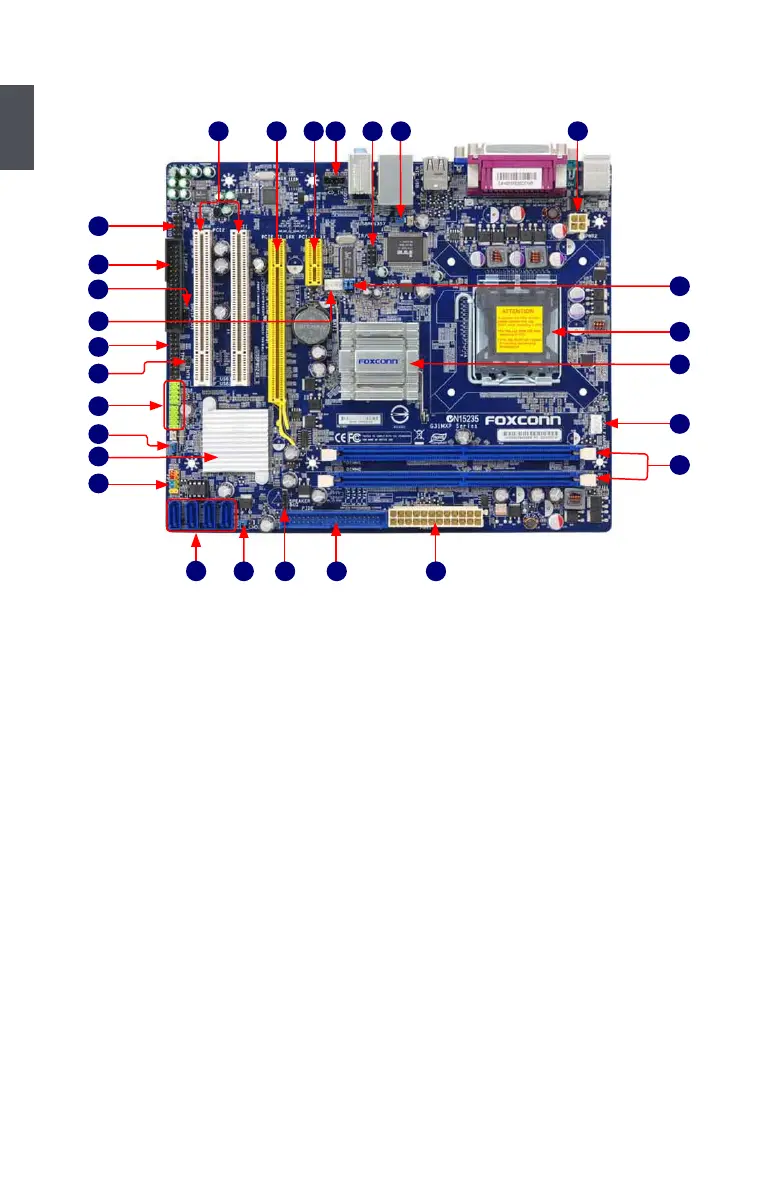

1-2 Layout
Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
1. 4-pin ATX 12V Power Connector
2. USBPW1357_1 Jumper
3. IR/CIR Connector
4. CD_IN Connector
5. PCI Express x1 Slot
6. PCI Express x16 Slot
7. PCI Slots
8. Front Audio Connector
9. Floppy Connector
10. S/PDIF_OUT Connector
11. SYS_FAN Header
12. TPM Connecter
13. Chassis Intrusion Alarm Header
14. Front USB Connectors
15. USBPW0246_1 Jumper
16. South Bridge: Intel
®
ICH7
17. Front Panel Connector
18. SATA Connectors
19. Clear CMOS Jumper
20. Speaker Connector
21. IDE Connector
22. 24-pin ATX Power Connector
23. DDR2 DIMM Slots
24. CPU_FAN Header
25. North Bridge: Intel
®
G31 chipset
26. LGA 775 CPU Socket
27. Over Memory Fequency JumperJP1, JP2
24
25
23
26
27
26 4 3 17 5
12
8
15
9
14
13
11
10
16
17
22
21
19
18
20

Foxconn G31MXP Specifications

General

Form Factor	Micro ATX
Chipset	Intel G31
Socket	LGA 775
Memory Type	DDR2
Memory Slots	2
Maximum Memory	4 GB
Expansion Slots	1 x PCIe x16, 2 x PCI
Storage Interface	4 x SATA 3Gb/s, 1 x IDE
Integrated Graphics	Intel GMA 3100
Audio	Realtek ALC662 6-Channel HD Audio
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Video Outputs	1 x VGA
Supported CPUs	Intel Core 2 Quad, Core 2 Duo, Celeron
LAN	Realtek RTL8102EL 10/100 Mbps
