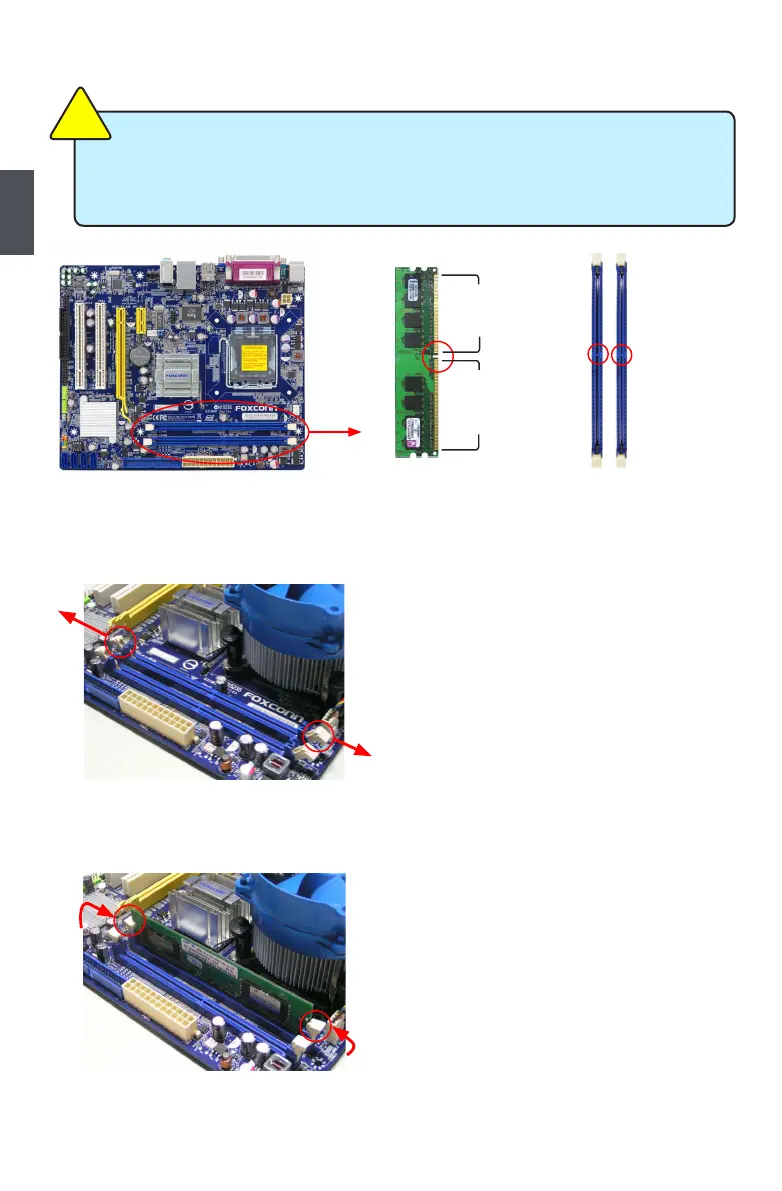

Installing a Memory
If you take a look at front side of memory module, it has asymmetric pin counts on both sides separated
by a notch in the middle, so it can only t in one direction. Follow the steps below to correctly install
your memory modules into the sockets.
Step 1:
Spread the clips at both ends of the memory socket.
Place the memory module onto the socket, then put
your ngers on top edge of the module, and push
it down rmly and seat it vertically into the memory
socket.
Step 2:
The clips at both ends of the socket will snap into place
when the memory module is securely inserted.
Before installing a memory module, make sure to turn off the computer and unplug the
power cord from the power outlet to prevent damage to the memory module. Be sure
to install DDR2 DIMMs on this motherboard.
C
A
U
T
I
O
N
!
112-Pin128-Pin
Notch

Foxconn G31MXP Specifications

General

Form Factor	Micro ATX
Chipset	Intel G31
Socket	LGA 775
Memory Type	DDR2
Memory Slots	2
Maximum Memory	4 GB
Expansion Slots	1 x PCIe x16, 2 x PCI
Storage Interface	4 x SATA 3Gb/s, 1 x IDE
Integrated Graphics	Intel GMA 3100
Audio	Realtek ALC662 6-Channel HD Audio
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Video Outputs	1 x VGA
Supported CPUs	Intel Core 2 Quad, Core 2 Duo, Celeron
LAN	Realtek RTL8102EL 10/100 Mbps
