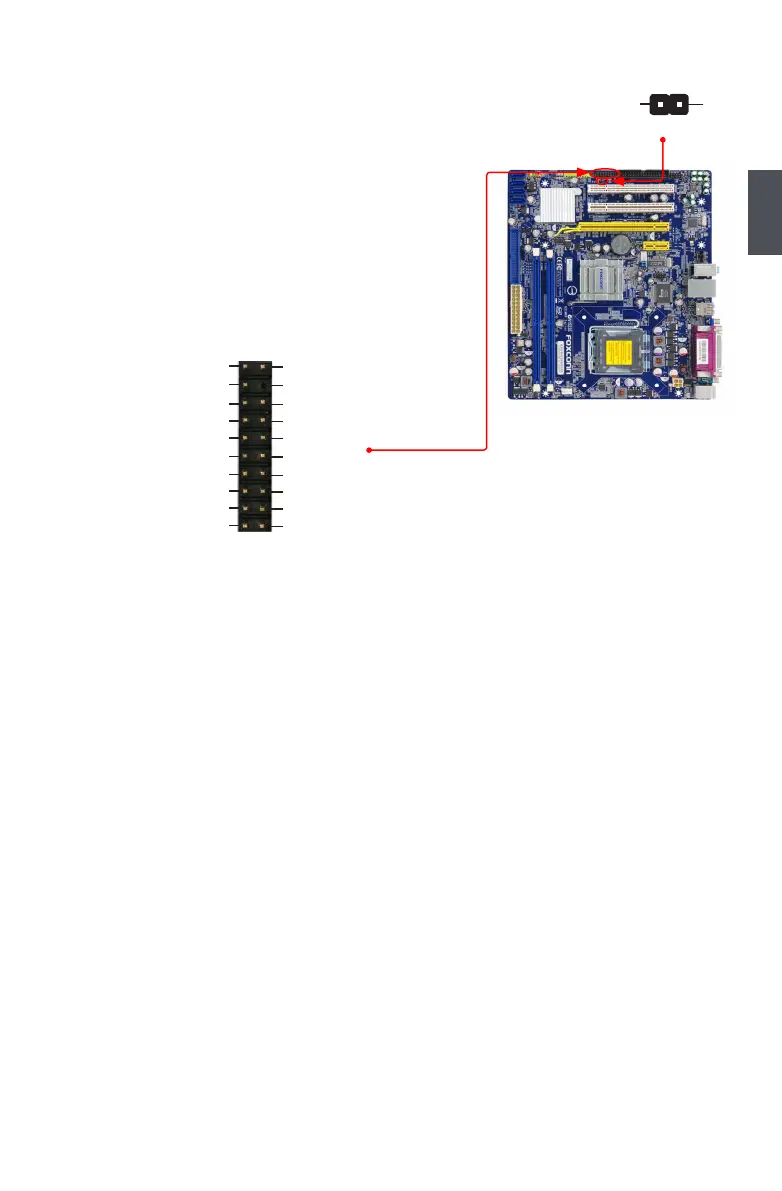

Chassis Intrusion Alarm Header : INTR
The connector can be connected to a security switch on
the chassis. The system can detect the chassis intrusion
through the function of this connector. If eventually the
chassis was closed, the system will send a message out.
TPM Connector : TPM
The TPM (Trusted Platform Module) provides the ability to the
PC to run applications more secure and to make transactions
and communication more trustworthy. To utili�e this function,
you should purchase additional device and install it..
INTR
GND
INTRUDERJ
1
LCLK#
LFRAME#
LRESET#
LAD3
VDD
LAD0
SB3V
NC
GND
LPCPD#
GND
EMPTY
LAD2
NC
LAD1
GND
NC
SERIRQ
CLKRUN#
NC
19 20
TPM

Foxconn G31MXP Specifications

General

Form Factor	Micro ATX
Chipset	Intel G31
Socket	LGA 775
Memory Type	DDR2
Memory Slots	2
Maximum Memory	4 GB
Expansion Slots	1 x PCIe x16, 2 x PCI
Storage Interface	4 x SATA 3Gb/s, 1 x IDE
Integrated Graphics	Intel GMA 3100
Audio	Realtek ALC662 6-Channel HD Audio
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Video Outputs	1 x VGA
Supported CPUs	Intel Core 2 Quad, Core 2 Duo, Celeron
LAN	Realtek RTL8102EL 10/100 Mbps
