Foxconn G31MXP User Manual

53
4

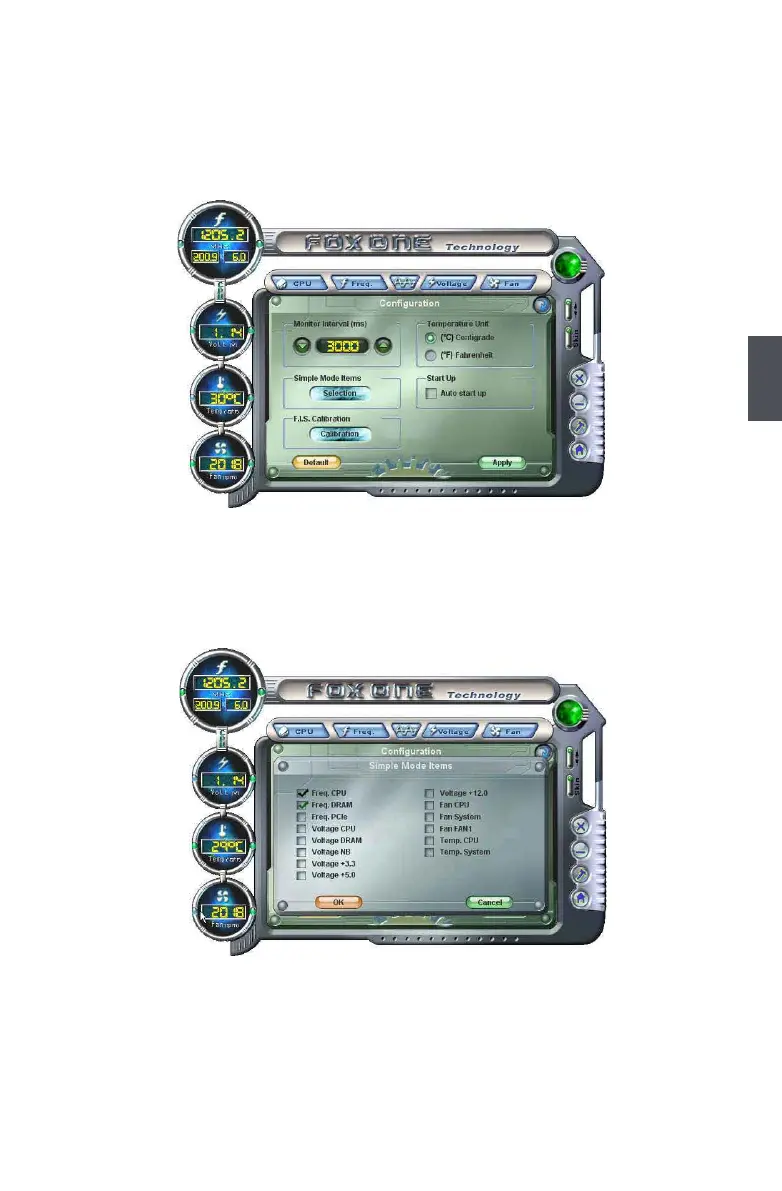

Conguration
This menu allows you to congure :
1). Monitor interval (ms) :
This is to dene the interval of different messages of system settings which are towhich are toare to
be displayed on Simple Mode screen. Minimum value is 1 second.
2). Simple Mode :
To select which message of system settings are to be displayed in the Simple
Mode. Messages such as CPU frequency, voltage...etc., they can be displayed one
by one in Simple Mode.
3). F.I.S. Calibration (FOX Intelligent Stepping, Optional)
This function will re-calibrate the CPU's loading, and it may take several minutes
to proceed. The FOX ONE calibration process will apply different loadings to
your CPU, record PWM IC voltage together with the CPU clock running at these
loadings, so it can dene and estimate within a particular range of system loading,
what the CPU clock should be.

Foxconn G31MXP Specifications

General

Form Factor	Micro ATX
Chipset	Intel G31
Socket	LGA 775
Memory Type	DDR2
Memory Slots	2
Maximum Memory	4 GB
Expansion Slots	1 x PCIe x16, 2 x PCI
Storage Interface	4 x SATA 3Gb/s, 1 x IDE
Integrated Graphics	Intel GMA 3100
Audio	Realtek ALC662 6-Channel HD Audio
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Video Outputs	1 x VGA
Supported CPUs	Intel Core 2 Quad, Core 2 Duo, Celeron
LAN	Realtek RTL8102EL 10/100 Mbps
