Foxconn G31MXP User Manual

56
4

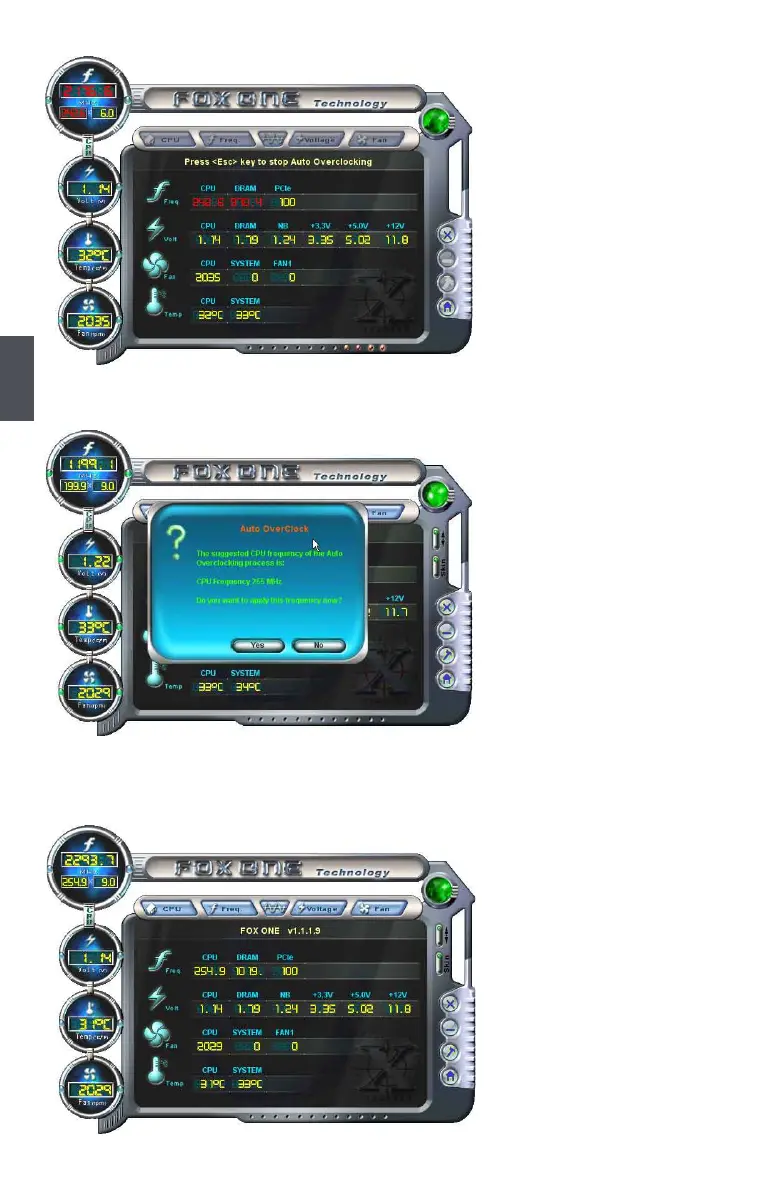

You can see the system is
raising CPU clock until the
system hangs.
Push RESET button on the
front panel of your system to
restart the computer.
Run FOX ONE program
again, it will inform you
the previous test found
that 255MH� is the
recommended CPU clock for
your system.
Click Yes to apply it to your
system.
Now, your system is running
at a CPU clock of 255MH�.

Foxconn G31MXP Specifications

General

Form Factor	Micro ATX
Chipset	Intel G31
Socket	LGA 775
Memory Type	DDR2
Memory Slots	2
Maximum Memory	4 GB
Expansion Slots	1 x PCIe x16, 2 x PCI
Storage Interface	4 x SATA 3Gb/s, 1 x IDE
Integrated Graphics	Intel GMA 3100
Audio	Realtek ALC662 6-Channel HD Audio
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Video Outputs	1 x VGA
Supported CPUs	Intel Core 2 Quad, Core 2 Duo, Celeron
LAN	Realtek RTL8102EL 10/100 Mbps
