12
2
12

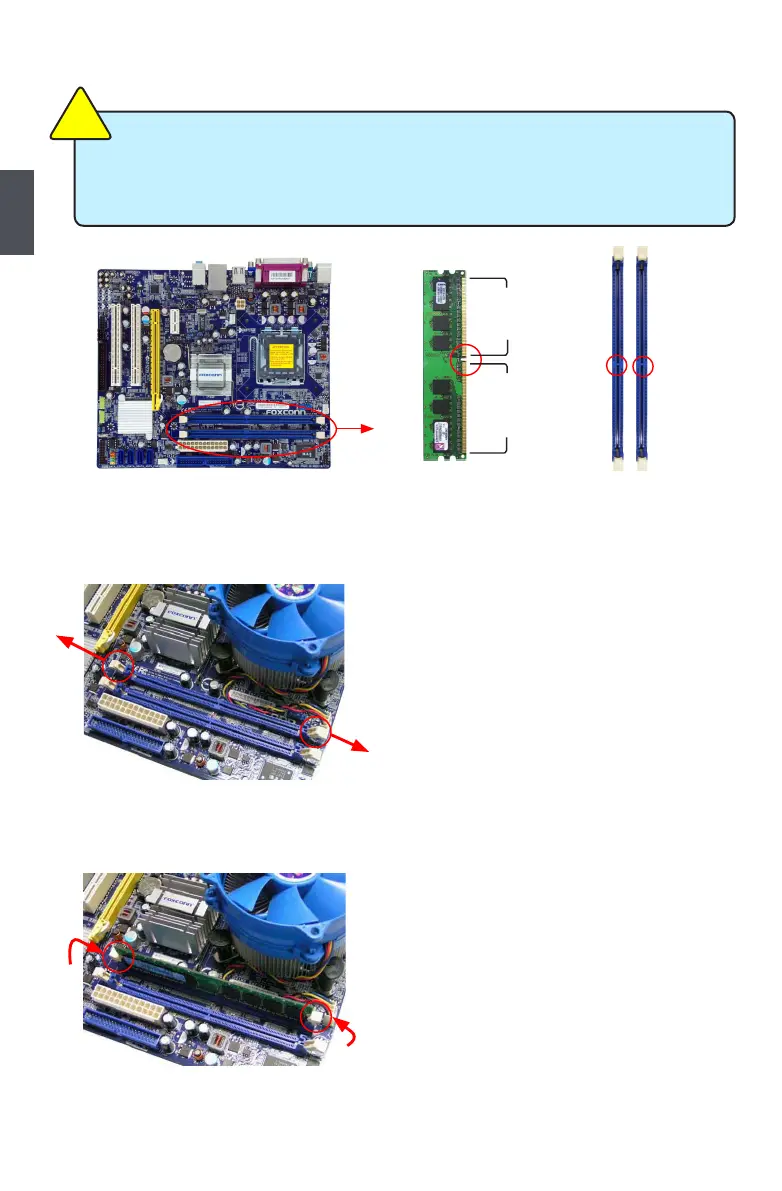

Installing a Memory
If you take a look at front side of memory module, it has asymmetric pin counts on both sides separated
by a notch in the middle, so it can only t in one direction. Follow the steps below to correctly install
your memory modules into the sockets.
Step 1:
Spread the clips at both ends of the memory socket.
Place the memory module onto the socket, then put
your ngers on top edge of the module, and push
it down rmly and seat it vertically into the memory
socket.
Step 2:
The clips at both ends of the socket will snap into place
when the memory module is securely inserted.
Before installing a memory module, make sure to turn off the computer and unplug the
power cord from the power outlet to prevent damage to the memory module. Be sure
to install DDR2 DIMMs on this motherboard.
C
A
U
T
I
O
N
!
112-Pin128-Pin
Notch

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Foxconn G41MX Series and is the answer not in the manual?

Foxconn G41MX Series Specifications

General IconGeneral
Form FactorMicro ATX
Maximum Memory8GB
SocketLGA 775
Storage Interface4 x SATA 3Gb/s
AudioRealtek ALC662 6-Channel HD Audio
ChipsetIntel G41
Memory Slots2
Expansion Slots2 x PCI
USB Ports8 x USB 2.0
Supported CPUIntel Core 2 Quad/Core 2 Duo/Pentium Dual Core/Celeron Processors
Rear Panel Ports1 x PS/2 Keyboard, 1 x PS/2 Mouse, 1 x VGA, 4 x USB 2.0, 1 x RJ-45, 3 x Audio Jacks
LANRealtek (RTL8111DL Gigabit LAN)
