Foxconn G41MX Series User Manual

53
4
53

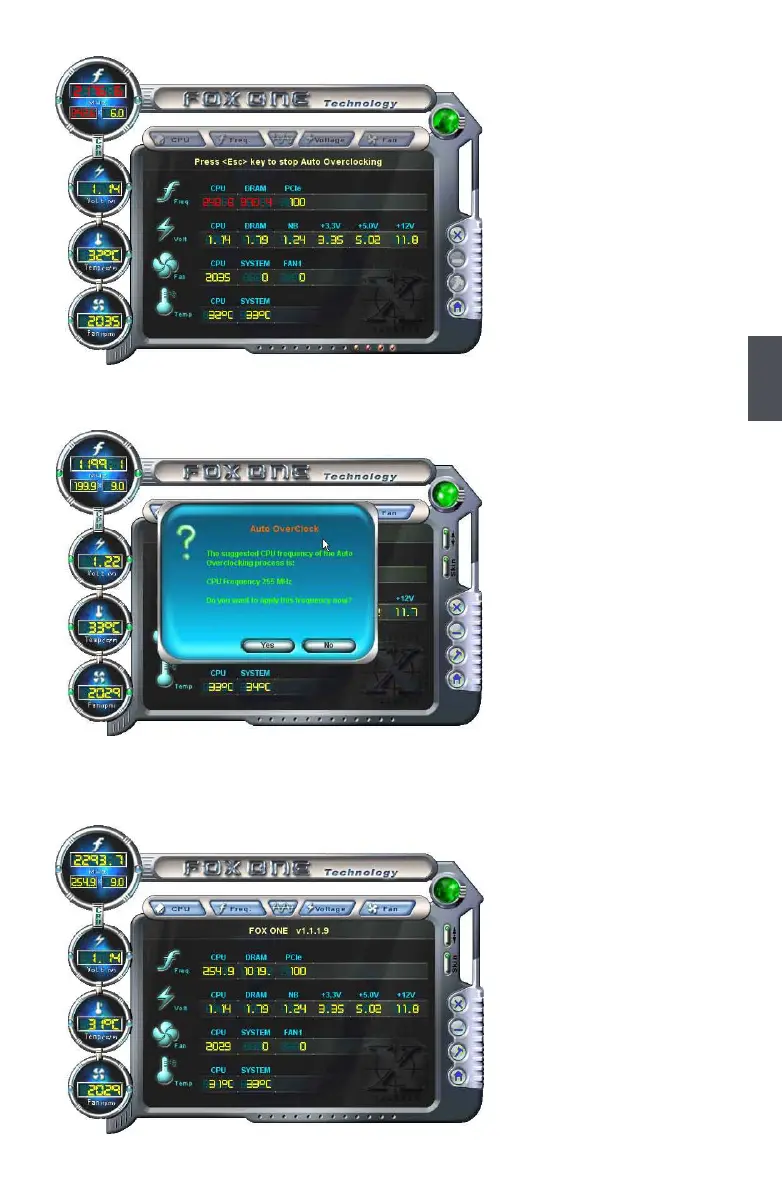

You can see the system is
raising CPU clock until the
system hangs.
Push RESET button on the
front panel of your system to
restart the computer.
Run FOX ONE program
again, it will inform you
the previous test found
that 255MHz is the
recommended CPU clock for
your system.
Click Yes to apply it to your
system.
Now, your system is running
at a CPU clock of 255MHz.

Foxconn G41MX Series Specifications

General

Form Factor	Micro ATX
Maximum Memory	8GB
Socket	LGA 775
Storage Interface	4 x SATA 3Gb/s
Audio	Realtek ALC662 6-Channel HD Audio
Chipset	Intel G41
Memory Slots	2
Expansion Slots	2 x PCI
USB Ports	8 x USB 2.0
Supported CPU	Intel Core 2 Quad/Core 2 Duo/Pentium Dual Core/Celeron Processors
Rear Panel Ports	1 x PS/2 Keyboard, 1 x PS/2 Mouse, 1 x VGA, 4 x USB 2.0, 1 x RJ-45, 3 x Audio Jacks
LAN	Realtek (RTL8111DL Gigabit LAN)
