2
16
INTR
GND
INTRUDERJ
1

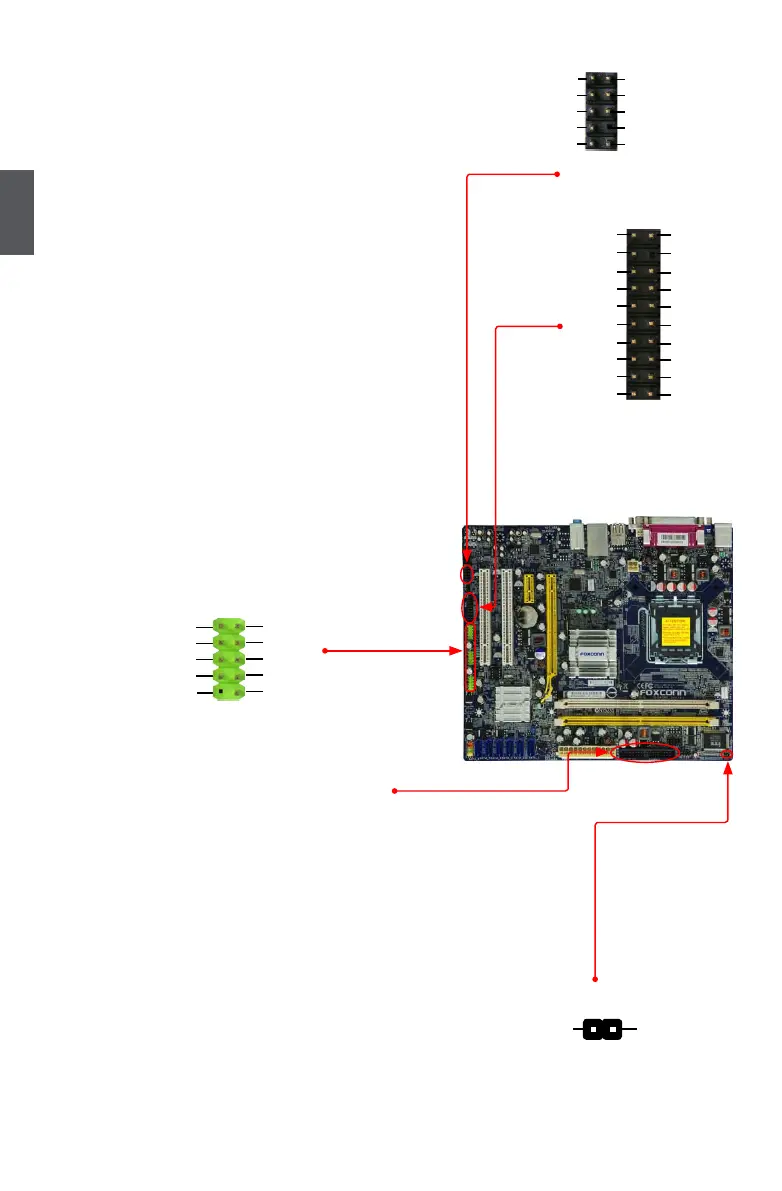

Audio Connector : F_AUDIO
The audio connector supports HD Audio standard.
It provides the Front Audio output choice.
TPM Connector : TPM
The TPM (Trusted Platform Module) provides the ability
to the PC to run applications more secure and to make
transactions and communication more trustworthy.
Note: The TPM module is purchased separately. Use
the Inneon TPM module only.
USB Connectors : F_USB1/2/3
In addition to the four USB ports on the rear panel, this
product also provides three 10-pin USB headers on its
motherboard. By connecting through USB cables with
them, user can quickly expand another six USB ports
on the front panel.
Floppy Disk Drive Connector : FLOPPY
This motherboard includes a standard oppy disk drive
(FDD) connector, supporting 360KB, 720KB, 1.2MB,
1.44MB, and 2.88MB FDDs.
Chassis Intruder Connector : INTR
The connector can be connected to a security switch
on the chassis. The system can detect the chassis
intrusion through the function of this connector. If
eventually the chassis is closed, the system will send a
message out.
PORT1_L
PORT1_R
PORT2_L
SENSE_SEND
SENSE1_RETURN
PRESENCE_J
EMPTY
SENSE2_RETURN
AUD_GND
1 2
109
F_AUDIO
PORT2_R
NC
GND
VCC
D+
D-
D+
GND
D-
VCC
EMPTY
1
2
10
9
F_USB 1/2/3
LCLK
LFRAMEn
LRESETn
LAD3
VDD
LAD0
NC_2
NC_1
GND
LPCPDn
GND
EMPTY
LAD2
NC_3
LAD1
GND
NC_4
SERIRQ
CLKRUNin
NC_5
1 2
19 20
TPM
