2
17

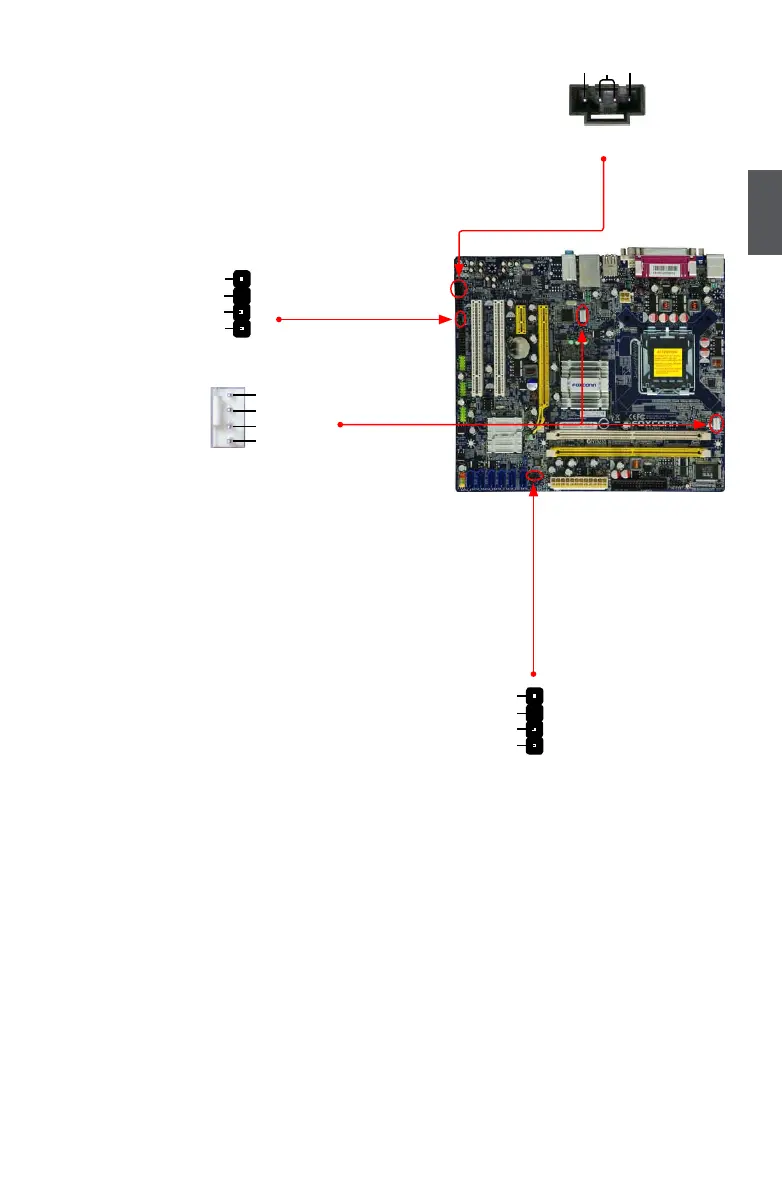

Audio Connector : CD_IN
CD_IN is a Sony standard audio connector, it can be
connected to a CD/DVD-ROM drive through a CD/DVD
audio cable.
S/PDIF Connector : SPDIF_OUT
The connector is used for S/PDIF output.
Fan Connectors : CPU_FAN/SYS_FAN
There are two main fan headers on this motherboard.
The fan speed can be controlled and monitored in “PC
Health Status” section of the BIOS Setup. These fans
can be automatically turned off after the system Enters
S3, S4 and S5 sleeping states.
Speaker Connector : SPEAKER
The speaker connector is used to connect speaker of
the chassis.
1
SYS_FAN/CPU_FAN
GND
POWER
SENSE
CONTROL
SPDIF_OUT
+5V
EMPTY
SPDIF_OUT
GND
1
2
3
4
1
CD_IN
CD_L GND CD_R
NC
SPKJ
EMPTY
SPEAKER
SPKJ
1
2
3
4
To Next Page
