PRODUCT INTRODUCTION
4

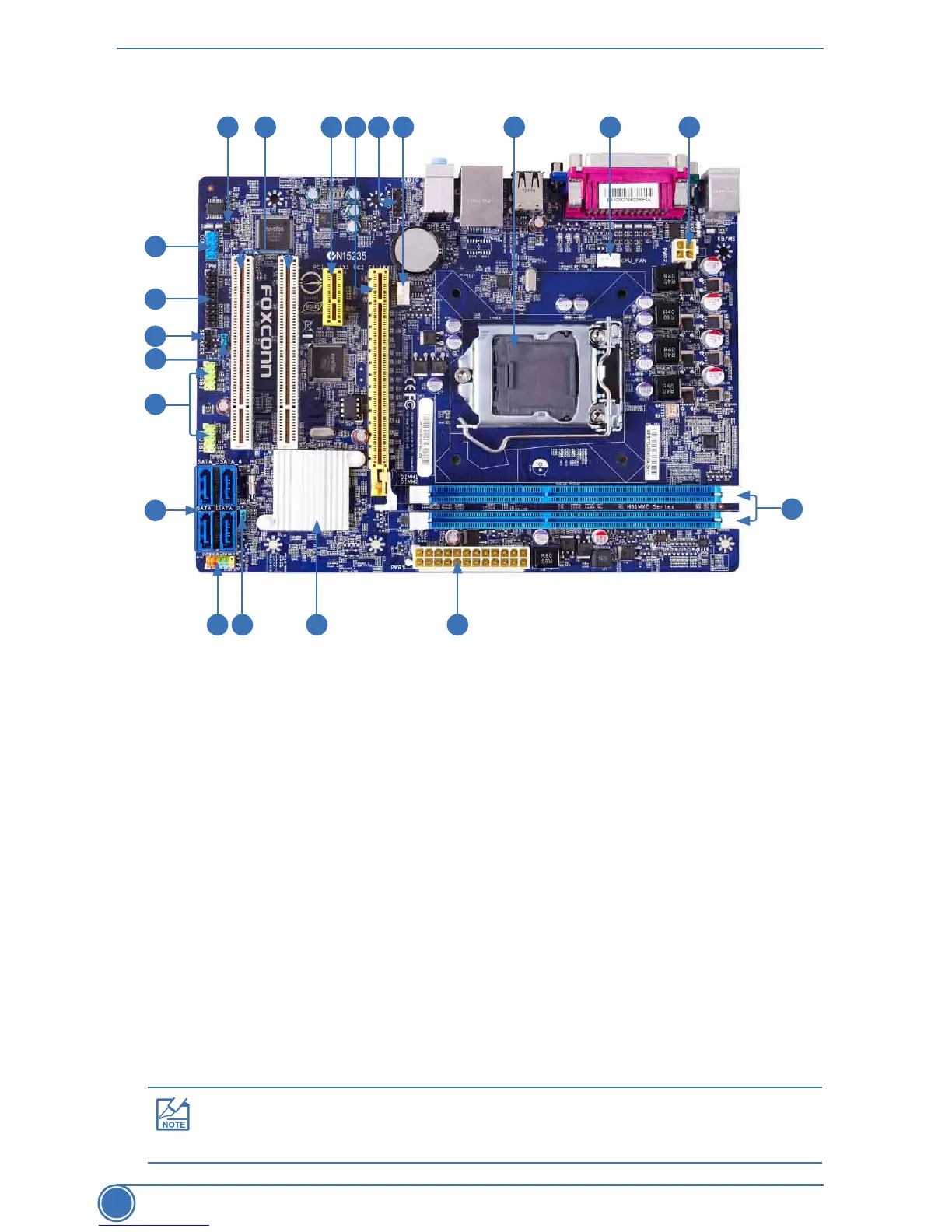

1-2 Layout
1. 4-pinATX12VPowerConnector
2.CPU_FANHeader
3.LGA1155CPUSocket
4.SYS_FANHeader
5.FrontAudioHeader
6. PCI Express x16 Slot
7. PCI Express x1 Slot
8. PCI Slot
9. INTR Header
10.COM2Header
11. TPM Header
12.SpeakerHeader
13. ME Header
14.FrontUSB2.0Header
15.SATA2.0Connector
16. Front Panel Header
17. Clear CMOS Header
18. Chipset: Intel® H61
19.24-pinATXPowerConnector
20.DDR3DIMMSlot
123456789
11
12
13
14
15
16 17 18 19
20
The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
