Foxconn H61MXP Series User Manual

PRODUCT INTRODUCTION
5
6
1. PS/2 Mouse Port
Usetheupperport(green)toconnectaPS/2mouse.
2. PS/2 Keyboard Port
UsetheupperporttoconnectaPS/2keyboard.
3. COM Port
ThisisoutputofRS232COM1port.
4. Parallel Port
This connector provides printer port interface.
5. VGA Port
Use this port to connect external display devices, such as monitor or LCD display.
6. USB 2.0 Port
 TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevicessuchas
 anUSBkeyboard/mouse,USBprinter,USBashdriveandetc.
7. LAN Port
The Ethernet LAN port provides Internet connection at up to 10/100/1000Mb/s data rate.
8. Audio Ports
Forthedenitionofeachaudioport,pleaserefertothetablebelow:

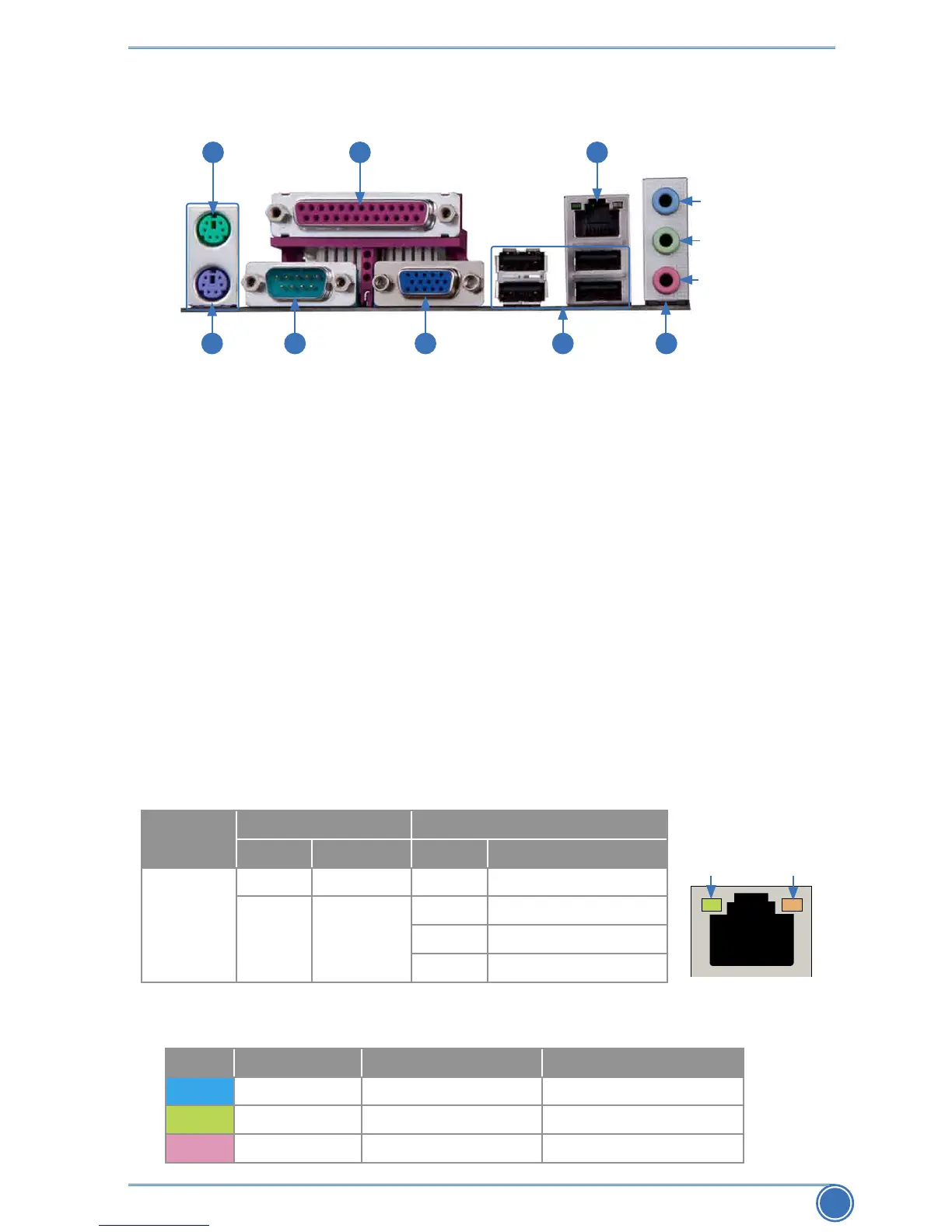

1-3 Back Panel Connectors
PS/2KeyboardPort
Audio Port
Line Out
Microphone In
Line In
LAN Port
USB2.0PortCOM Port VGA Port
1
2 3
4
85
7
Parallel PortPS/2MousePort
LAN Type
Left: Active Right: Link
Status Description Status Description
1000M
Off No Link Off No Link
Green
Blinking
Data
Activity
Off 10Mb/s Connection
Green 100Mb/s Connection
Orange 1000Mb/s Connection
Active Link
LED LED
Port 2-channel 4-channel 5.1-channel
Blue Line In Rear Speaker Out* Rear Speaker Out*
Green Line Out Front Speaker Out Front Speaker Out
Pink Microphone In Microphone In Center/Subwoofer Out*
