RAID CONFIGURATION
80
Create RAID 10 (0+1)

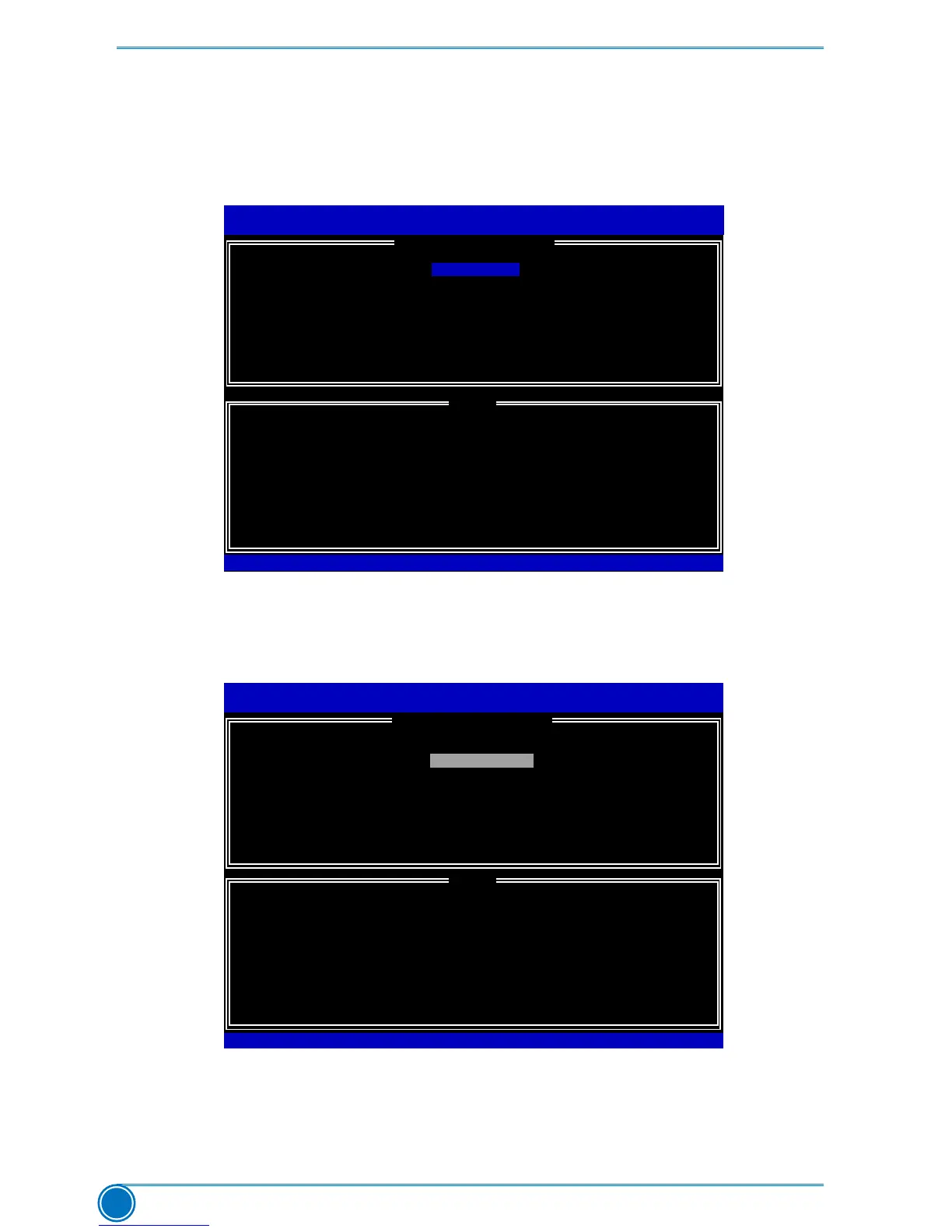

1. Select “1.Create RAID Volume” from the main menu and press <Enter>.
2.In"Name"item,youcaninputadevicenamefortheRAID10systemandpress<Enter>to
apply it. Here, we name it as TryRAID10 to replace the default Volume0.
Intel(R)MatrixStorageManageroptionROMv5.0.0.1011ICH9RwRAID5
Copyright(C)2003-04IntelCorporationAllRightsReserved.
Enter a unique volume name that has no special characters and is
16 characters or less.
Intel(R)RapidStorageTechnology-UptionROM-11.0.8.1204
Copyright(C)2003-11IntelCorporation.AllRightsReserved.
[ CREATE VOLUME MENU ]
[ HELP ]
Name:
RAID Level:
Disks:
Strip Size:
Capacity:
Sync:
Volume0
RAID0(Stripe)
Select Disks
128KB
0.0 GB
N/A
Create Volume
TryRAID10
[↑↓]-Change[TAB]-Next[ESC]-PreviousMenu[ENTER]-Select
3. In “RAID Level” item, you can use Up or Down arrow key to make a selection. Select
RAID10(RAID0+1) and press <Enter>.
Intel(R)MatrixStorageManageroptionROMv5.0.0.1011ICH9RwRAID5
Copyright(C)2003-04IntelCorporationAllRightsReserved.
RAID 10: Mirrors data and stripes the mirror.
Intel(R)RapidStorageTechnology-UptionROM-11.0.8.1204
Copyright(C)2003-11IntelCorporation.AllRightsReserved.
[ HELP ]
Name:
RAID Level:
Disks:
Strip Size:
Capacity:
Sync:
TryRAID10
RAID0(Stripe)
Select Disks
64KB
149.1GB
N/A
Create Volume
RAID10(RAID0+1)
[↑↓]-Change[TAB]-Next[ESC]-PreviousMenu[ENTER]-Select
[ CREATE VOLUME MENU ]
4.Afterexitingfrom"RAIDLevel",itgoesdirectlyto"StripeSize"item.Becauseallfourdisks
are elected for RAID10, so there is no need to go to Disks option.
