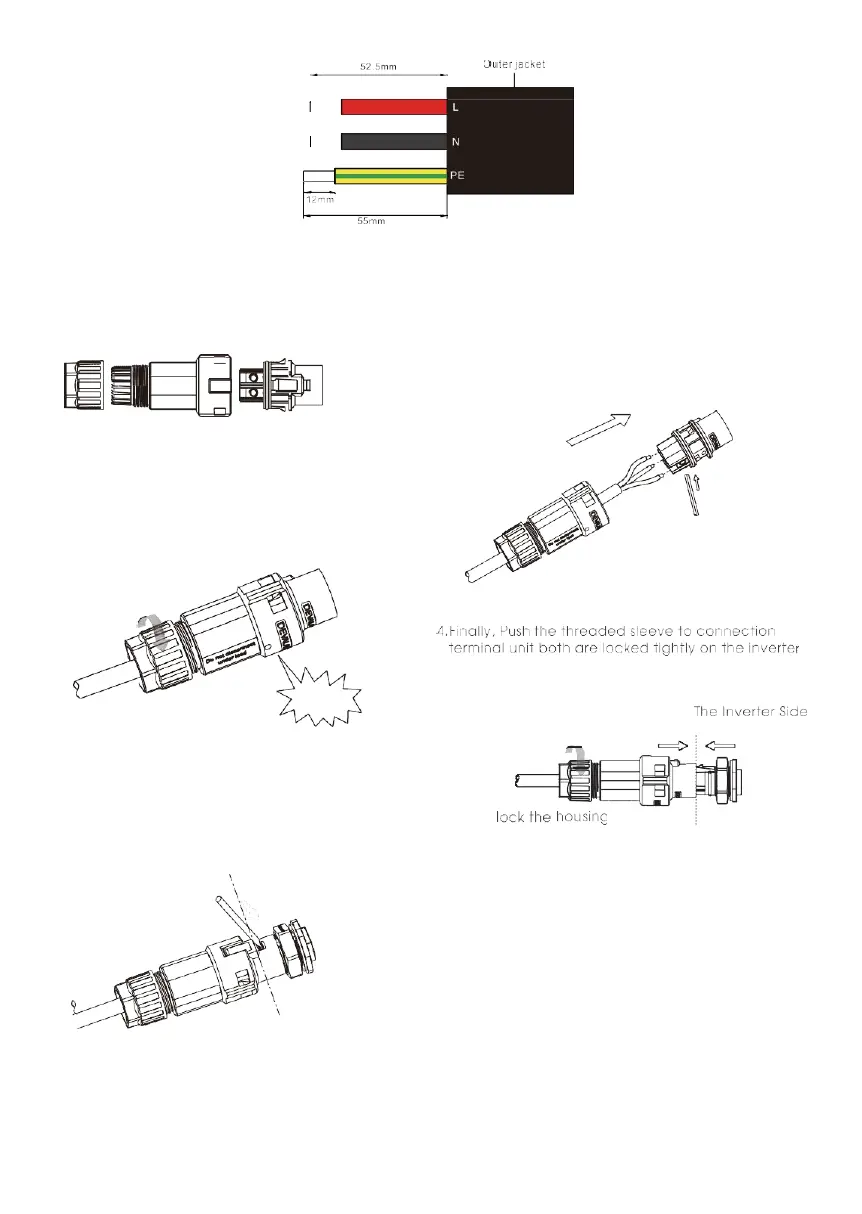

The AC wiring step:
1.
Uninstall the parts of the AC
connection plug from the accessory bag.
2.
Insert the stripped and bared cable through pressure
screw, seal ring, threaded sleeve in sequence, insert
cables into connection terminal according to polarities
indicated on it and tighten the screws firmly. Please try
out the wire to make sure the it’s well connected
Seal ring and connection
threaded sleeve terminal
3.
Push the threaded sleeve into the socket,
Tighten up the cap on the terminal
5.To remove the AC connector, press the bayo-
net out of the slot with a small screwdriver and
pull it out,or unscrew the threaded sleeve, then
pull it out.
