Note!
For a precise reading and control of power, a meter can be used
instead of CT.
If CT is fitted in the wrong orientation, anti-backflow function will fail.
(2).
CT (optional)

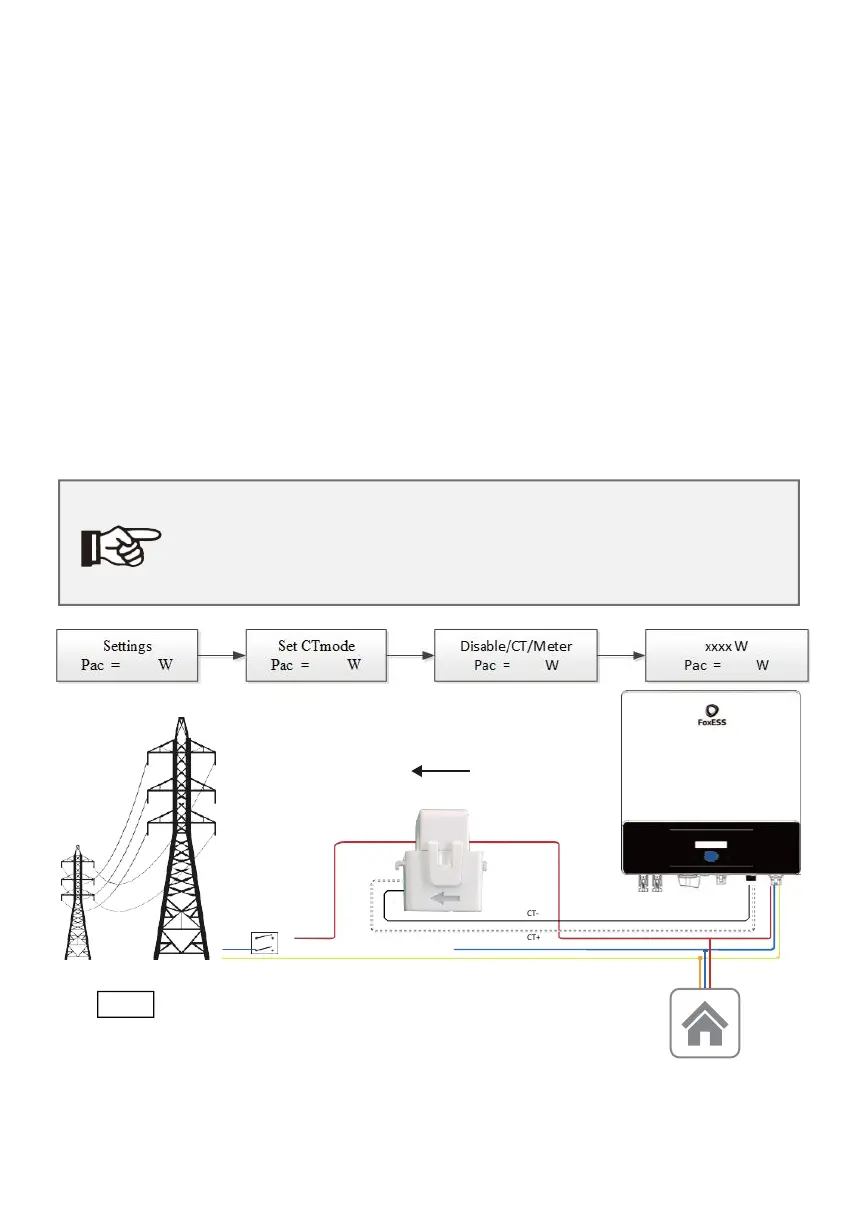

This inverter has integrated export limitation functionality. To use this function, a
power meter or a CT must be installed. If used, please reference picture
below. The CT should be fitted around the live conductor on the grid side of
the main incoming consumer unit. Use the directional flow indication arrow on
the CT to ensure it is fitted in the correct orientation. The arrow should be
pointing towards the grid, not the load. The white cable connects to CT+, and
the black cable connects to CT-.
Export limitation setting
Short press the touch key to switch display or make the number+1.
Long press the touch key to confirm your setting.
