FoxESS F5000 - DRM0;ESTOP Interface

27

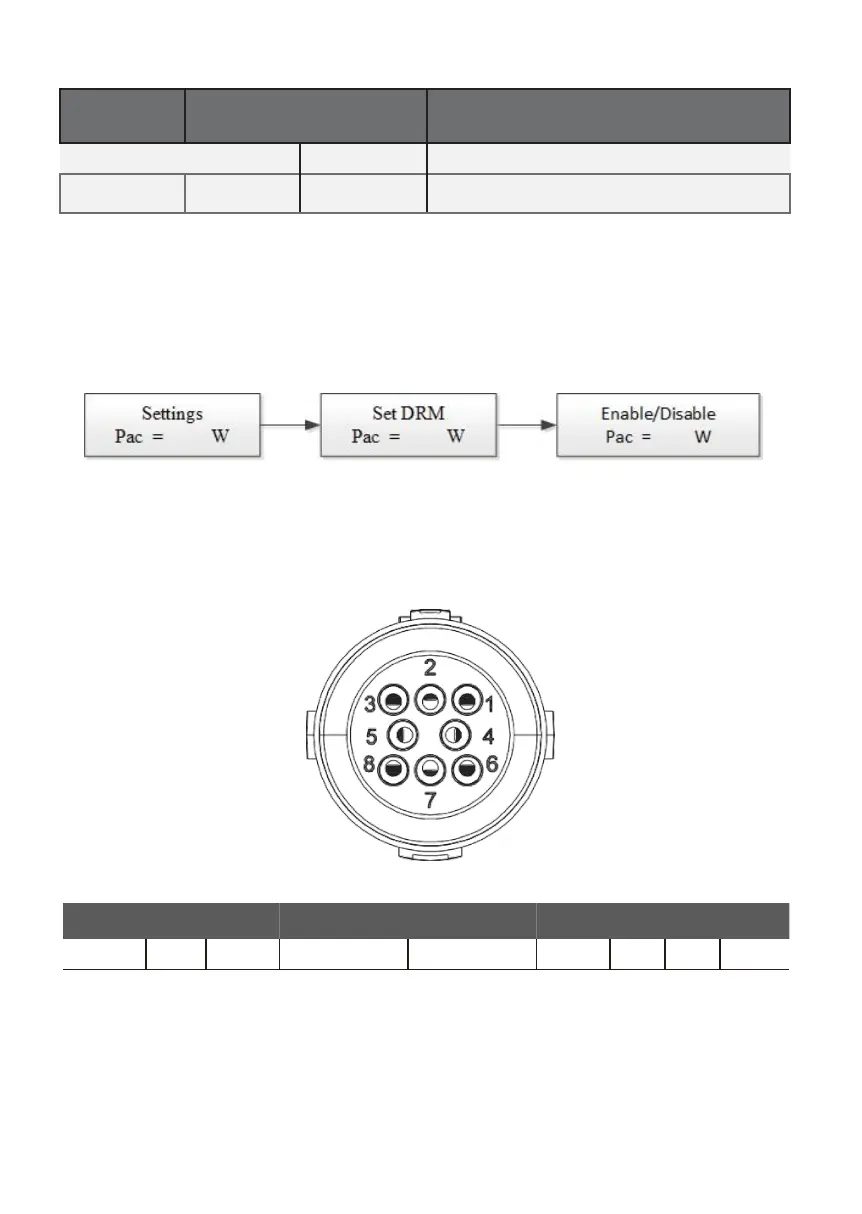

(4).DRM0/ESTOP
Model
Socket Asserted by shorting pins
Function
DRM0
5
6
Operate the disconnection device
ESTOP
5
8
Emergency stop the inverter
DRM0 setting
Short press the touch key to switch display or make the number+1.
Long press the touch key to confirm your setting.
The PIN definitions of CT/RS485/DRM0/ESTOP interface are as below.
PIN
1
2
3
4
5
6
7
8
Definition
CT+
CT-
METER 485-
METER 485+
GND
DRM0
NC
ESTOP
