T2000 TPMS Service Tool Manual_English_V1.01

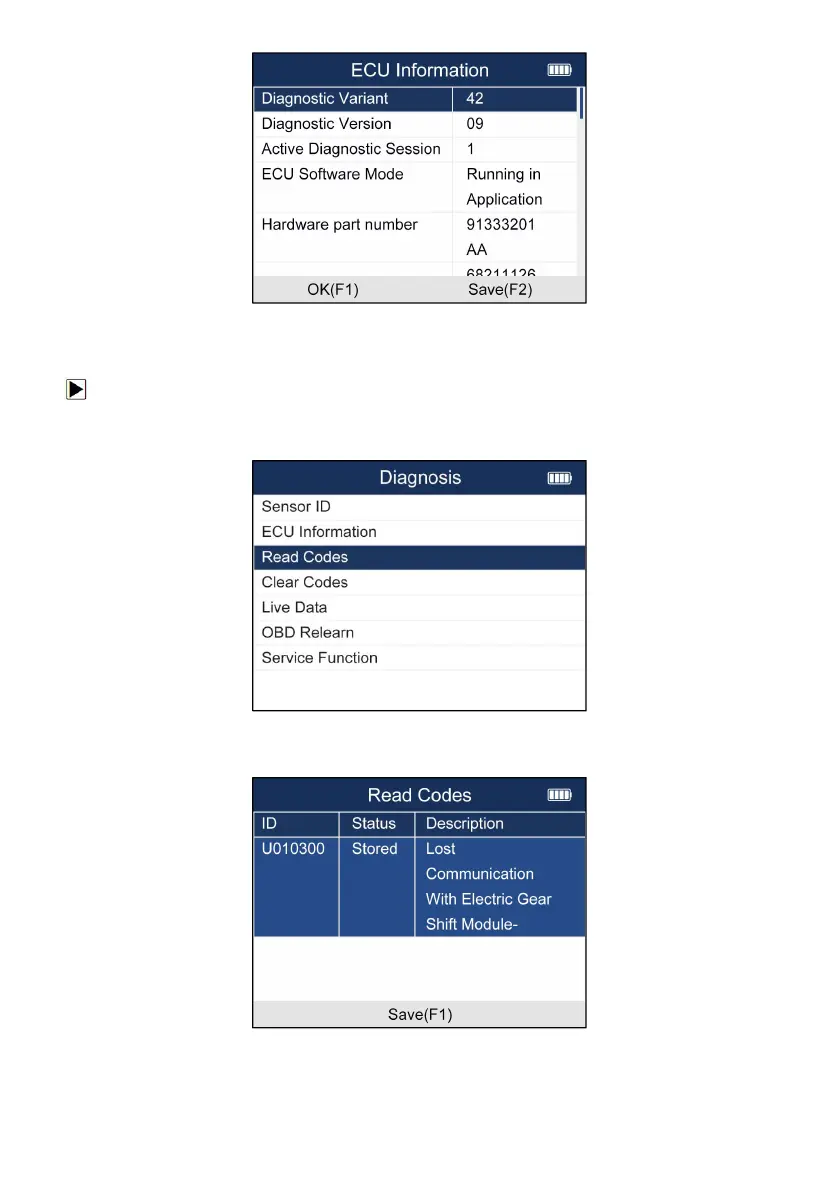

Figure 5-9 Sample ECU Information Screen
5.2.3 Read Codes
To Read Codes
1. Select TPMS--Diagnose from the available Menu.
2. Choose Read Codes after the tool communicate with the car successfully.
Figure 5-10 Sample Read Codes Menu
3.The fault codes will be displayed if have. Press F1 button to save the fault codes or F3 or N
button to exit.
