Installation and technical data
Page 15
Technical data for the Flavour Station
Capacity up to 6 avors of syrup
Electrical connection 100 - 240 V 1L N PE 75 W 50/60 Hz Fuse: 10 A
Electric cable 2000 mm
Weight approx. 24 kg
Width 320 mm (12.60")
Depth 460 mm (18.11")
Height 500 mm (19.69")
Adjustable feet (optional)
30 mm foot 560 mm + 32 mm = 592 mm (23 5/16 inch)
40 mm foot 560 mm + 45 mm = 605 mm (24 3/4 inch)
70 mm foot 560 mm + 70...80 mm = 630...640 mm
100 mm foot 560 mm + 100...115 mm = 660...675 mm
Technical data for the cup warmer
Capacity up to 80 cups (depending on cup size)
Electrical connection 200 - 240 V 1L N PE 140 W 50/60 Hz Fuse: 10 A
Electric cable 2000 mm (78.74")
Weight approx. 15 kg
Width 225 mm (8.86")
Depth 440 mm (17.32")
Height 540 mm (21.26")
Technical data for the refrigeration unit
Milk container 10 liters (2.64 gallons)
Electrical connection 200 - 240 V 1L N PE 100 W 50/60 Hz Fuse: 10 A
115 V 1L N PE 100 W 50/60 Hz Fuse: 10 A
Electric cable 2000 mm (78.74")
Ambient conditions Humidity: max. 80 %
Ambient temperature: 5 - 32 °C (41 - 89.6 °F)
Weight approx. 26 kg
Width 320 mm (12.60")
Depth 460 mm (18.11")
Height 500 mm (19.69")

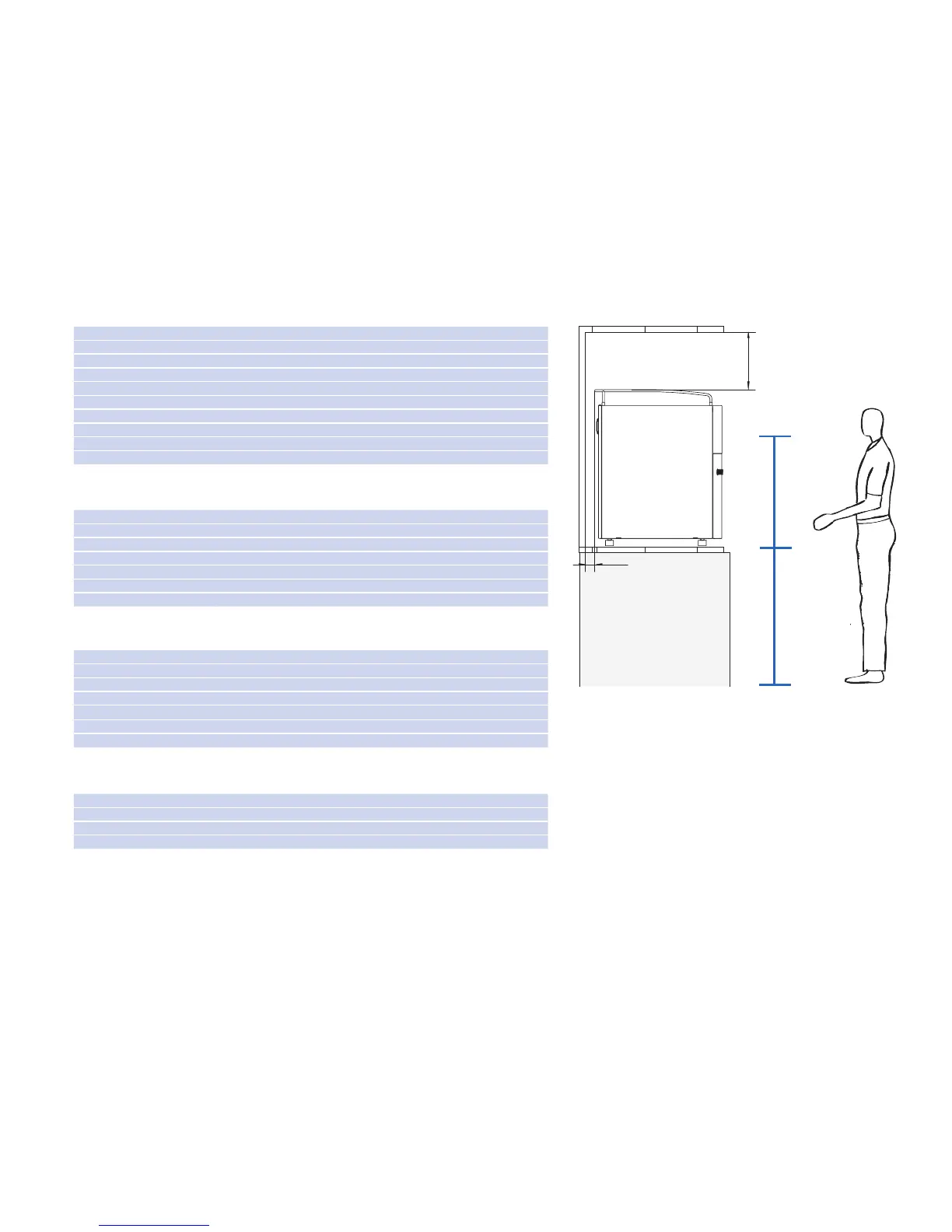

Place the optional accessories in line with the Evolution Plus and at
eye level.
Distance to the wall must be at least 50 mm (1.96"). Clearance above
the machine must be at least 200 mm (7.78").
Adjustable feet can be used to compensate for unevenness or
height dierences.
If optional accessories are installed, up to an additional 320 mm
(12.6") may be required per accessory.
Installation Dimensions for Optional Accessories
