INS
TALLATION INSTRUCTIONS
INSTALLER: PLEASE LEAVE THESE INSTRUCTIONS WITH THE OWNER.
El
ectrical connection An authorised/qualified person must install this appliance. (Certificate
of compliance to be retained).
CAUTION: Before installing the oven, disconnect the power supply by either
removing the fuse, shutting off the power main or manually tripping the
circuit breaker.
Installation work and repairs should only be performed by a qualified
technician in accordance with all applicable codes and standards. Repairs
and service by unqualified persons could be dangerous and may void the
warranty. The manufacturer is not liable for personal injury, product or
property damage caused by serviced performed by unqualified persons.
Before connecting the appliance to the power supply, make sure that the
voltage and frequency listed on the data plate correspond with the
household electrical supply. This data must correspond to prevent damage
to the product. Consult an electrician if in doubt.
Only operate the appliance after it has been installed in a cabinet.
Power supply The electric connection must comply with the current legal standards and
regulations.
Bef
ore making the connection, check that:
- The system electrical rating and the current outlets are adequate for the
maximum power output of the appliance (see the rating plate applied to back
of the cooker).
- The outlet or the system is equipped with an efficient ground connection in
accordance with the current legal standards and regulations. The company
will not be responsible for the non-compliance with these instructions
A dedicated line and junction box should be used to connect the oven to a
25A circuit.

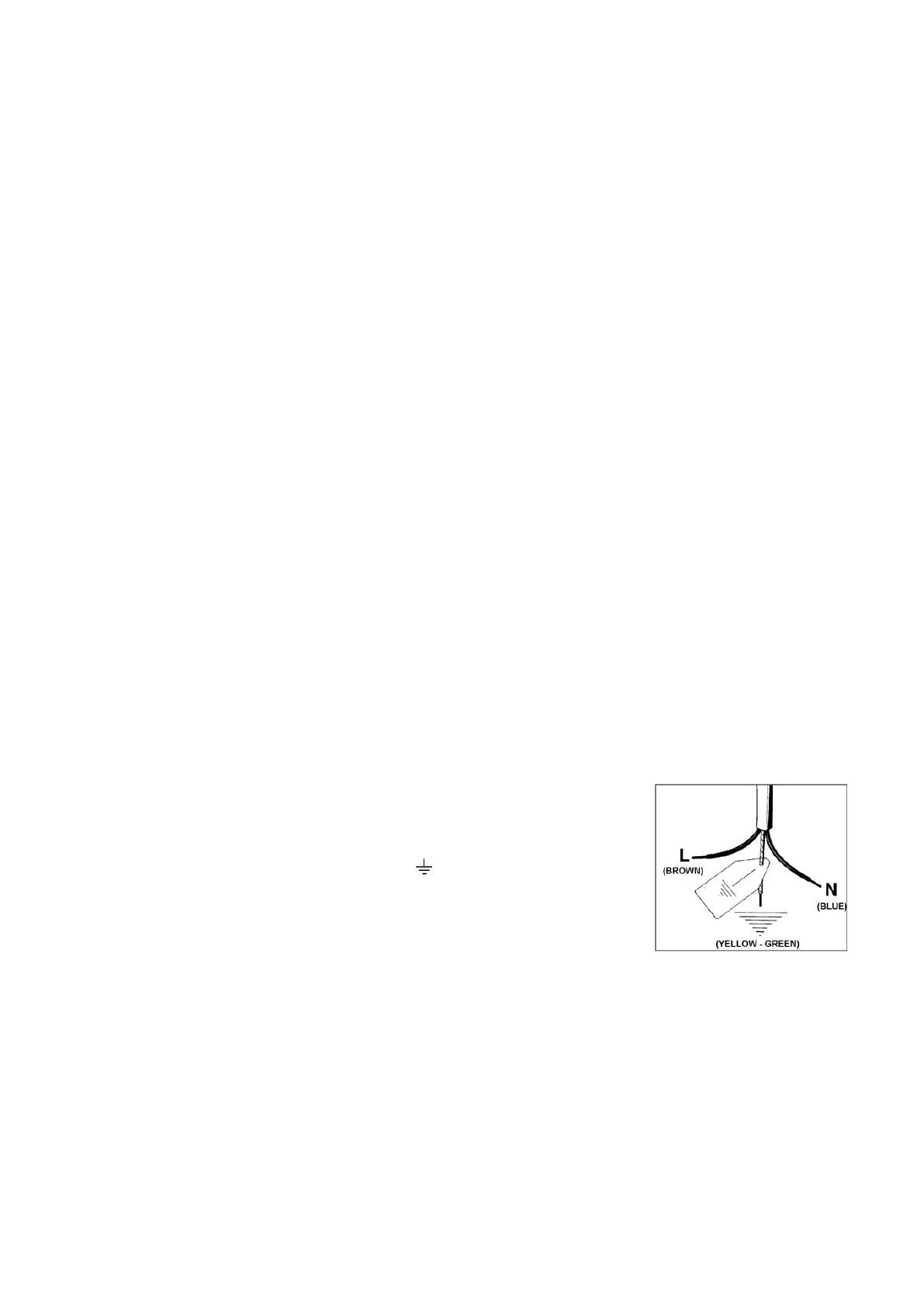

L (phas
e) = brown wire;
N (neutral) = blue wire;
Ground symbol = green-yellow wire
Types of power cords The appliance is equipped with a terminal for the electric connection placed
behind, which is accessible by removing the posterior casing.
The cookers that can also be connected to three-phase systems normally are
factory built for the single-phase 230V connection and are supplied with a
power cord. Based on the connection system used, install the power cord
type indicated in table No. 1
To use the selected connection system change the jumpers on the terminal
strip as indicated in the diagram of Fig.
To Next Page
